Access Point Profile VAP Configuration
The Access Point Profile VAP Configuration page displays the virtual access point (VAP) settings associated
with the selected AP profile. Each VAP is identified by its network number and Service Set Identifier (SSID). You
can configure and enable up to 16 VAPs per radio on each physical access point.

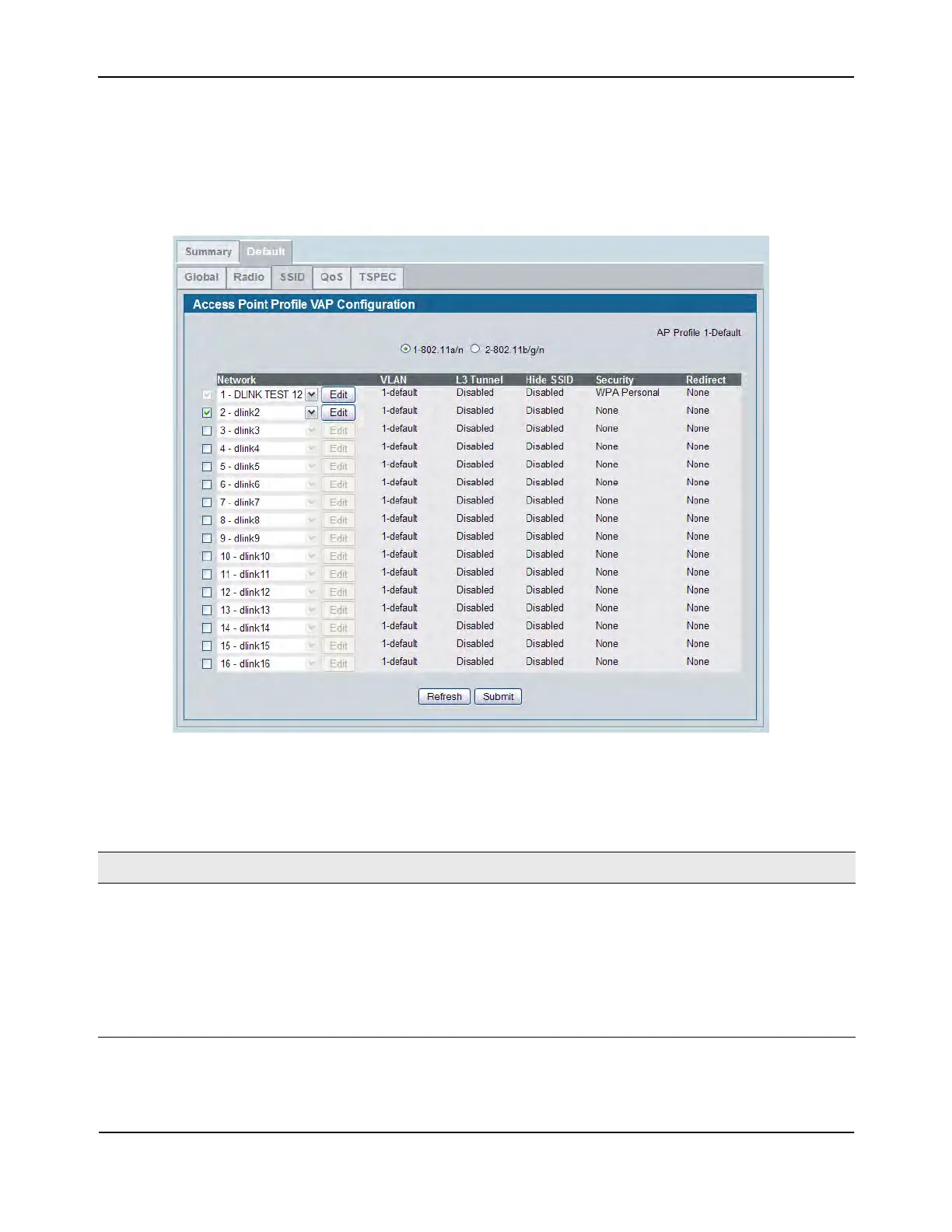

Figure 389: AP Profile VAP Configuration
The following table describes the fields on the Access Point Profile VAP Configuration page.
Table 356: Default VAP Configuration
Field Description
1-802.11a/n
2-802.11b/g/n
From this field, you can select the radio with the settings to configure. Settings for
each radio are configured separately.
By default, Radio 1 operates in IEEE 802.11a/n mode, and Radio 2 operates in IEEE
802.11b/g/n mode. If you change the mode, the labels for the radios change
accordingly. Changes to the settings apply only to the selected radio.
The DWL-3600AP is a single-radio AP. Any settings you configure for Radio 1
(802.11a/n) are not applied to the DWL-3600AP. If the selected Hardware Type ID for
the AP profile is DWL-3600AP, the radio selectors are not available.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
