Managing LLDP
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 268
D-Link UWS User Manual
LLDP-MED Interface Configuration
Use this page to enable LLDP-MED mode on an interface and configure its properties. To display this page, click
LAN > L2 Features > LLDP > LLDP-MED > Interface Configuration in the navigation tree.

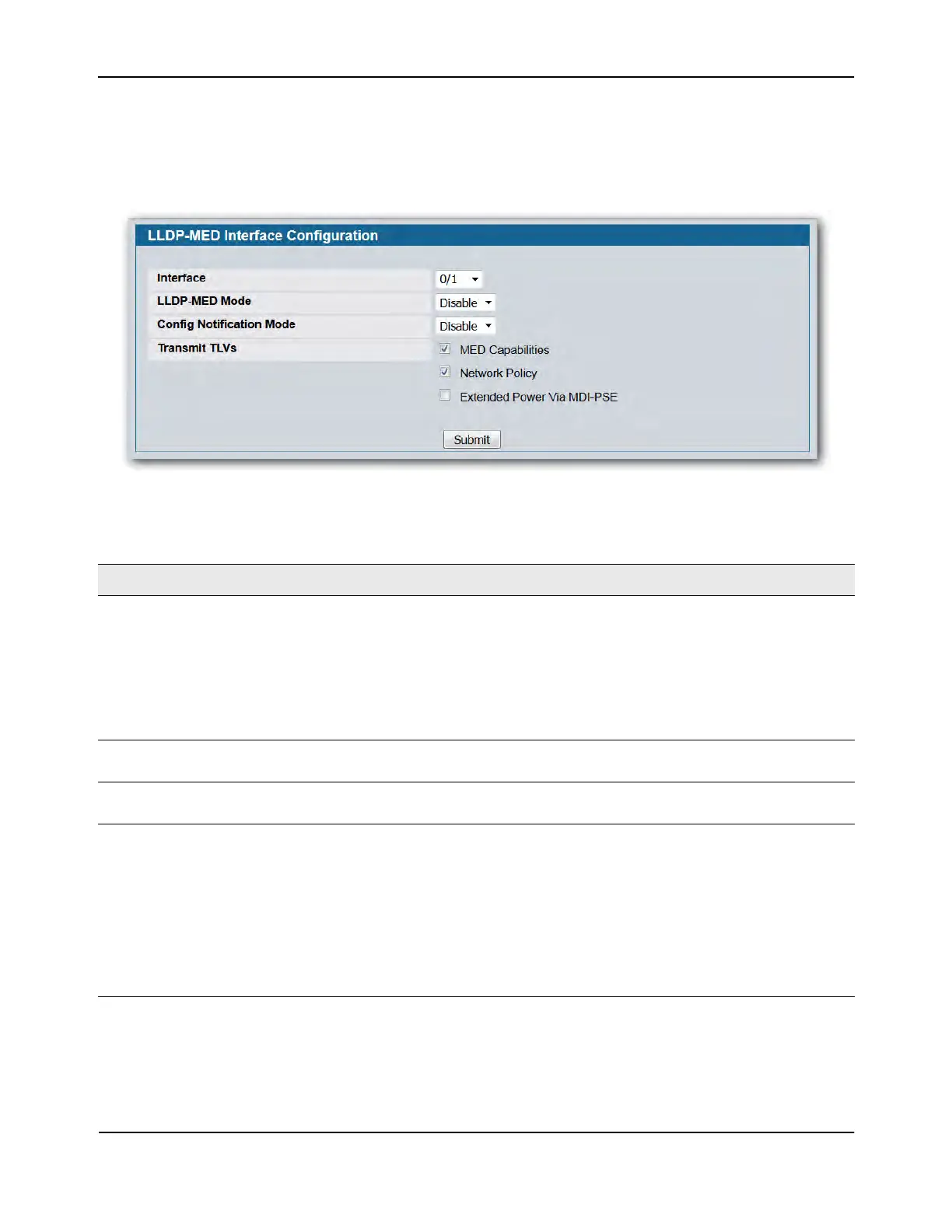

Figure 167: LLDP-MED Interface Configure
• Click Submit to send the updated configuration to the switch. These changes take effect immediately but
will not be retained across a power cycle unless a save is performed.
Table 150: LLDP-MED Interface Configuration Fields
Field Description
Interface Selects the port that you want to configure LLDP-MED - 802.1AB on. You can select
All to configure all interfaces on the DUT with the same properties. To view the
summary of all interfaces, refer to the “LLDP-MED Interface Summary” on
page 269. The Interface Configuration page will not be able to display the summary
of ‘All’ interfaces. The summary of individual interfaces is visible from the Interface
Configuration page. The Interface Configuration page for the ‘All’ option will always
display the LLDP-MED mode and notification mode as ‘disabled’ and check boxes
for ‘Transmit TLVs’ will always be unchecked.
LLDP-MED Mode Enables or disables LLDP-MED mode for the selected interface. By enabling MED,
you will be effectively enabling the transmit and receive function of LLDP.
Config Notification
Mode
Enables or disables LLDP-MED topology change notification mode for the selected
interface.
Transmit TLVs Specifies which optional type length values (TLVs) in the LLDP-MED will be
transmitted in the LLDP PDUs frames for the selected interface:
• MED Capabilities: Transmits the capabilities TLV in LLDP frames.
• Network Policy: Transmits the network policy TLV in LLDP frames.
• Extended Power via MDI - PSE: Transmits the extended PSE TLV in LLDP frames.
• Extended Power via MDI - PD: To transmit the extended PD TLV in LLDP frames.
• Location Identification: To transmit the location TLV in LLDP frames.
• Inventory: To transmit the inventory TLV in LLDP frames.
