Configuring IGMP Snooping

D-Link Unified Wired and Wireless Access System

Oct. 2015 Page 216

D-Link UWS User Manual

VLAN Configuration

Use the IGMP Snooping VLAN Configuration page to configure IGMP snooping settings for VLANs on the

system.

To access the IGMP Snooping VLAN Configuration page, click LAN > L2 Features> IGMP Snooping > VLAN

Configuration in the navigation tree.

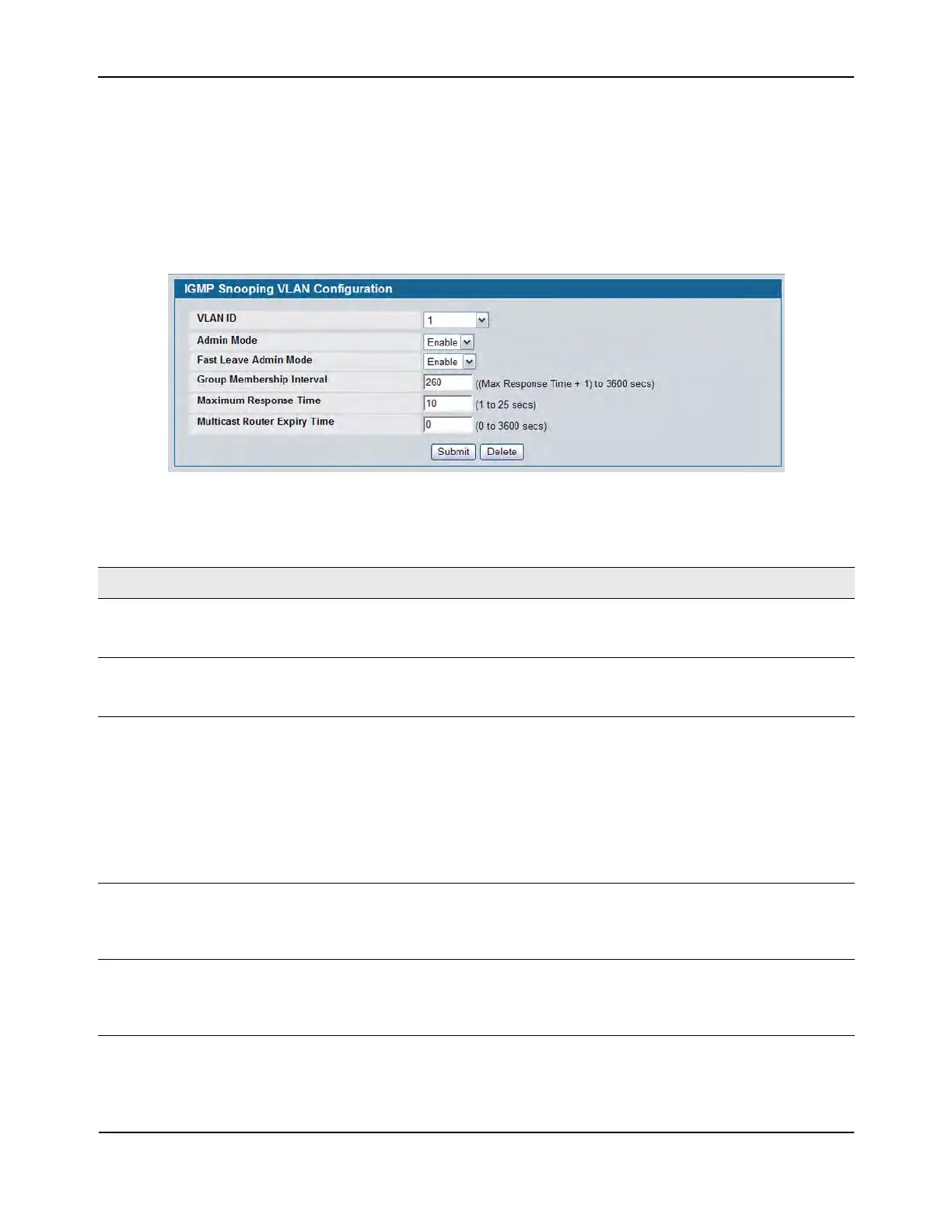

Figure 121: IGMP Snooping VLAN Configuration

Table 105: IGMP Snooping VLAN Configuration Fields

Field Description

VLAN ID From the drop-down menu, select the VLAN ID of the VLAN to modify, or

select New Entry to configure settings for a VLAN that does not have IGMP

Snooping enabled.

Admin Mode Enable is the only available option from the drop-down menu. To disable the

IGMP snooping admin mode on the VLAN, select the VLAN from the VLAN ID

field and click Delete.

Fast Leave Admin Mode Enabling fast-leave allows the switch to immediately remove the layer 2 LAN

interface from its forwarding table entry upon receiving an IGMP leave

message for that multicast group without first sending out MAC-based

general queries to the interface.

You should enable fast-leave admin mode only on VLANs where only one host

is connected to each layer 2 LAN port. This prevents the inadvertent dropping

of the other hosts that were connected to the same layer 2 LAN port but were

still interested in receiving multicast traffic directed to that group. Also, fast-

leave processing is supported only with IGMP version 2 hosts.

Group Membership Interval The Group Membership Interval time is the amount of time in seconds that a

switch waits for a report from a particular group on a particular interface

before deleting the interface from the entry. This value must be greater than

the IGMPv3 Maximum Response time value. The range is 2 to 3600 seconds.

Maximum Response Time Enter the amount of time in seconds that a switch will wait after sending a

query on an interface because it did not receive a report for a particular group

in that interface. This value must be less than the Group Membership Interval

time value. The range is 1 to 25 seconds.

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
