Managing VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 192
D-Link UWS User Manual
Protocol-Based VLAN Summary
Use the Protocol-based VLAN Summary page to view information about protocol-based VLAN groups
configured on the system.
To access the Protocol-based VLAN Summary page, click LAN > Monitoring> VLAN Summary > Protocol-based
VLAN Port Summary in the navigation tree.

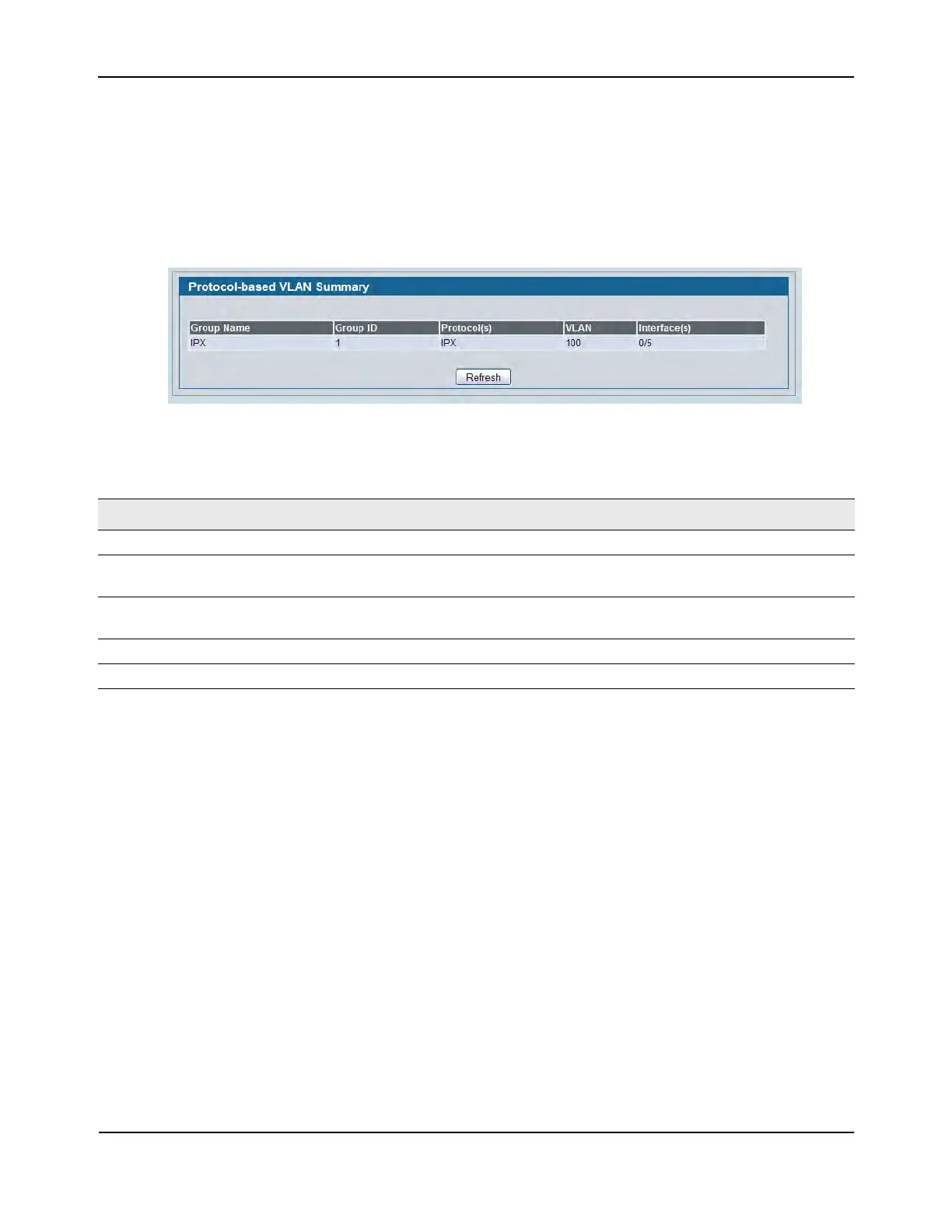

Figure 101: Protocol-based VLAN Summary
• Click Refresh to reload the page and display the most current information.
Table 87: Protocol-based VLAN Summary Fields
Field Description
Group Name Shows the user-defined name associated with protocol group.
Group ID Shows the number that identifies the group you create. Group IDs are
automatically assigned when you create a group.
Protocols Shows the protocol keyword or protocol value (hex or decimal numbers) to
associate with this group, which can be one or more of the following:
VLAN Specifies the VLAN ID associated with this group.
Interface Shows the interfaces participating in this group.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
