D-Link DWL-2600AP User Manual

Detecting and Preventing Wireless Intrusion
D-Link Unified Wired and Wireless Access System
July 2012 Page 729
D-Link UWS User Manual
As Figure 443 on page 728 shows, most clients have authenticated with the legitimate AP within the company.
However, one client within the company has unknowingly associated with the honeypot AP that is physically
located outside the walls of the company.
In this situation, the WIDS system on the AP automatically tags the honeypot AP as a Rogue on the WLAN >
Monitoring > Access Point > All AP Status page.

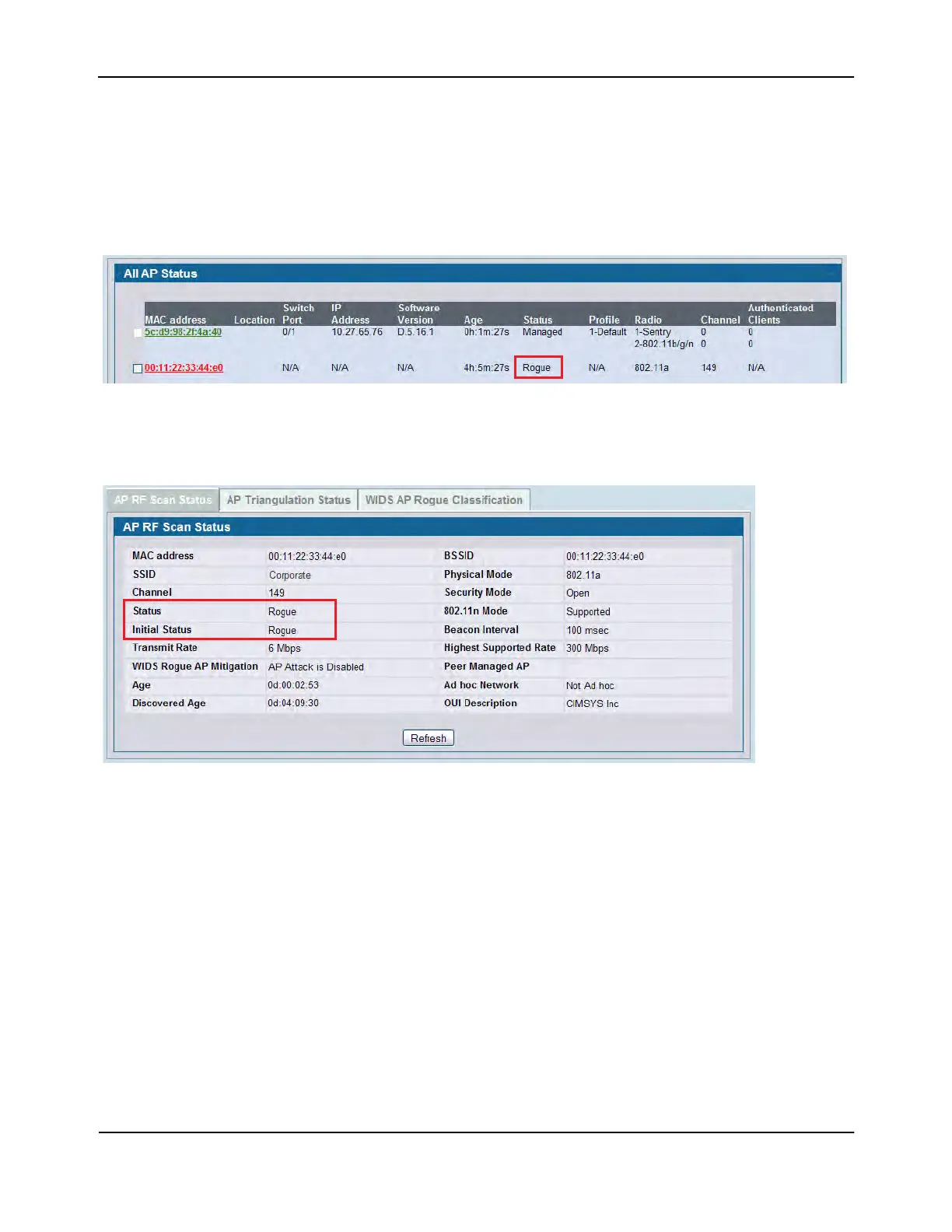

Figure 444: All AP Status with Rogue
Click the MAC address of the rogue AP to view additional information about the AP.
Figure 445: Honeypot AP Rogue Status

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
