Voice VLAN Configuration
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 199
D-Link UWS User Manual
• If you make any changes, click Submit to apply the change to the system.
• Click Refresh to display the latest information from the router.
Reset VLAN Configuration
Use the Reset Configuration page to return all VLAN parameters for all interfaces to the factory default values.
To access the Reset Configuration page, click LAN > L2 Features> VLAN > Reset Configuration in the navigation
tree.

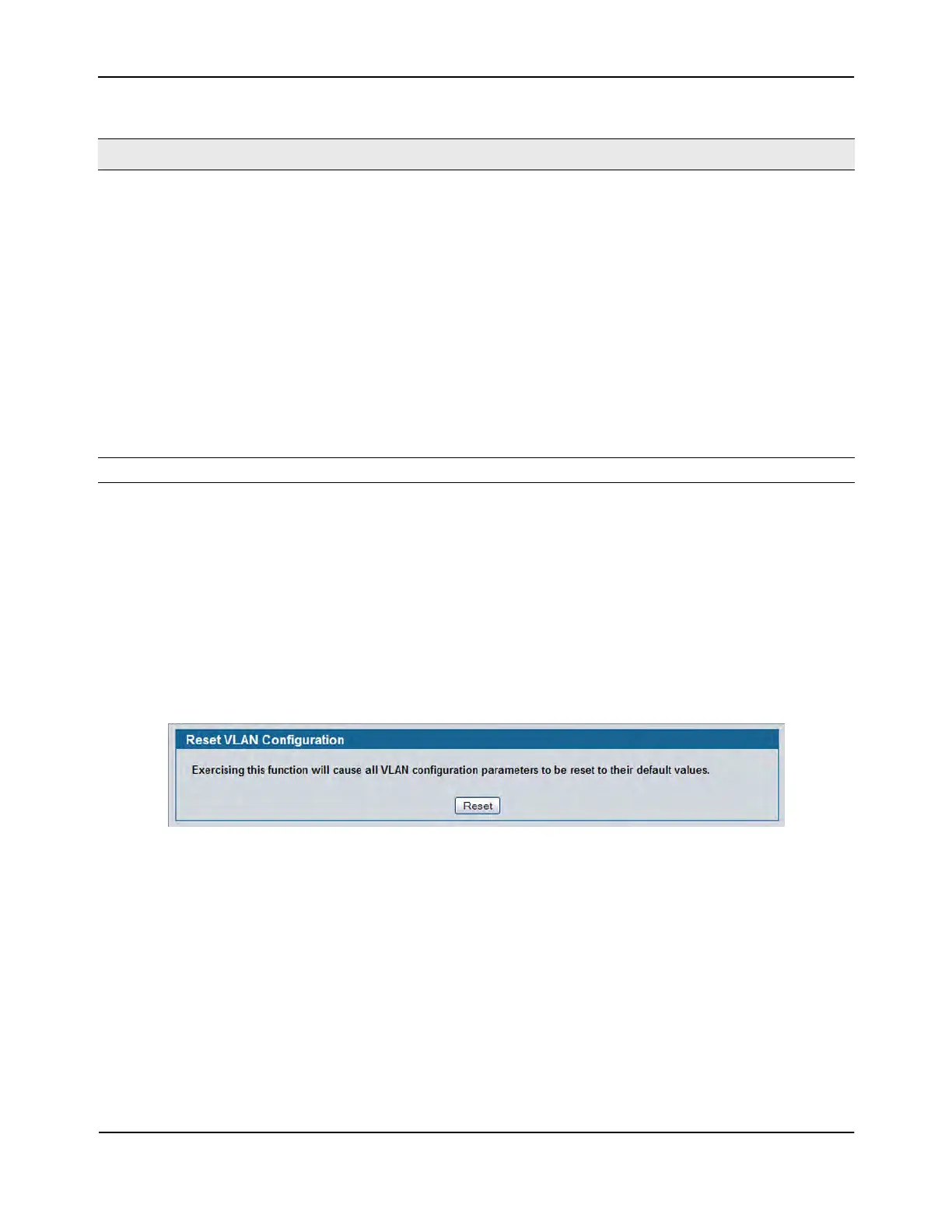

Figure 109: Reset VLAN Configuration
When you click Reset, the screen refreshes, and you are asked to confirm the reset. Click Reset again to restore
all default VLAN settings for the ports on the system.
Voice VLAN Interface Mode Select one of the following interface modes:
• Disable: The voice VLAN service is disabled on this interface. Note that the
Admin mode field takes precedence; i.e., if a particular interface is
enabled, but the Admin Mode field is set to Disabled, then the service will
not be operational.
• VLAN ID: The voice VLAN packets are uniquely identified by a number you
assign. All voice traffic carries this VLAN ID to distinguish it from other data
traffic which is assigned the port’s default VLAN ID. However, voice traffic
is not prioritized differently than other traffic.
• Dot1p: This parameter is set by the VoIP device for all voice traffic to
distinguish voice data from other traffic. All other traffic is assigned the
port’s default priority.
• None: The voice VLAN service is disabled on this interface; however, unlike
Disable mode, the CoS override feature is still operational on the port.
• Untagged: The VoIP device sends untagged voice traffic.
Operational State Indicates whether the voice VLAN is operational.
Table 94: Voice VLAN Configuration Fields (Cont.)
Field Description
