D-Link DWL-2600AP User Manual

Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 533
D-Link UWS User Manual
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
WDS AP Group Status
The WDS AP Group Status page displays detailed information about the configured APs and links in the WDS
Group. From this page, you can also send a new password to group members.

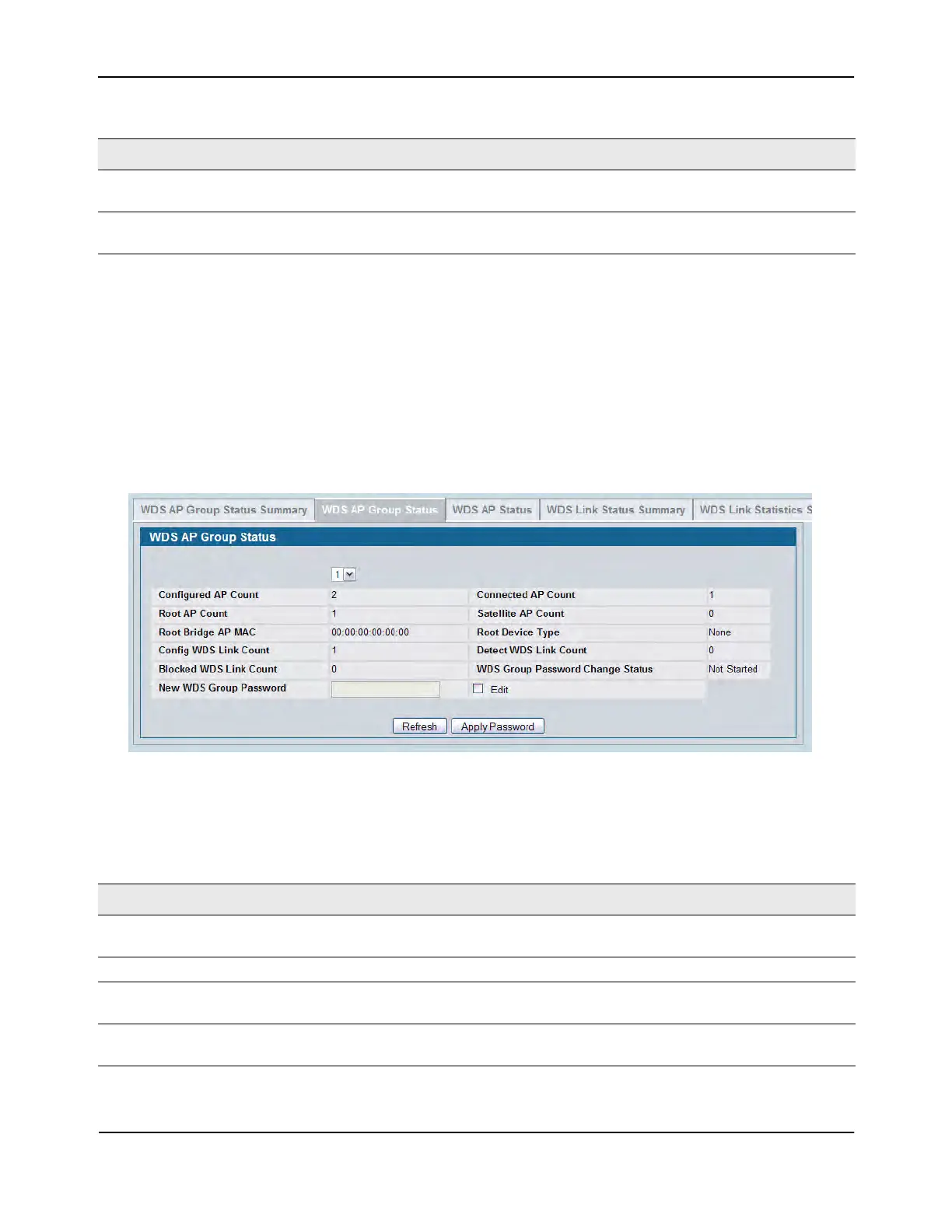

Figure 352: WDS AP Group Status
The following table describes the fields on the WDS AP Group Status page.
Configured WDS Link
Count
Number of configured bidirectional links in the WDS AP group.
Detected WDS Links
Count
Number of WDS links detected in the system. APs on both sides of the link must
detect each other in order for the link to be counted.
Table 320: WDS AP Group Status
Field Description
Group ID Use the drop-down menu above the fields to select the group number that identifies
the configured WDS AP group.
Configured AP Count Number of APs configured in this WDS AP group
Connected AP Count Number of APs managed by the switch that are members of this WDS AP group. This
number is the sum of the connected root APs and connected satellite APs.
Root AP Count Number of root APs currently being managed by the switch that are members of this
WDS AP group.
Table 319: WDS Group Status Summary (Cont.)
Field Description

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
