Locating WLAN Devices
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 654
D-Link UWS User Manual
Managed AP Location Summary
Use the Managed AP Location Summary page to view summary information about the location of the APs in
the wireless network. The page displays the APs with a location that has been manually configured or imported
from the WLAN Visualization tool.

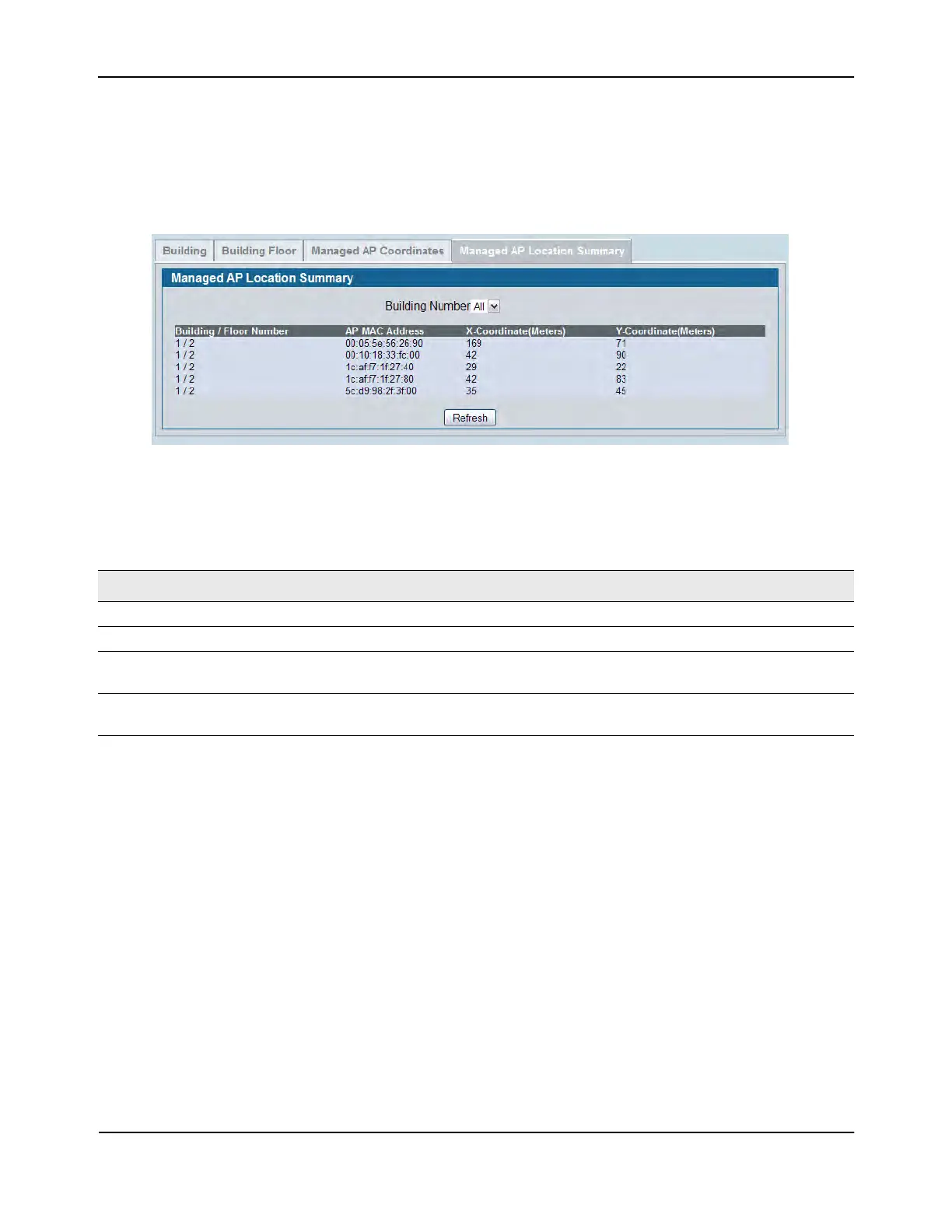

Figure 411: Managed AP Location Summary
The following table shows the fields available on the Managed AP Location Summary page.
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Table 377: Managed AP Location Summary
Field Description
Building/Floor Number Identifies the building and floor where the AP is located.
AP MAC Address Identifies the MAC address of the AP
X-Coordinate Identifies the X axis offset of the managed AP from some arbitrary 0,0 point on
the building floor.
Y-Coordinate Identifies the Y axis offset of the managed AP from some arbitrary 0,0 point on
the building floor.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
