Configuring the IP Helper Features
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 284
D-Link UWS User Manual
To add a relay entry, click Add. The page refreshes and provides the configurable fields to add a UDP
destination port and server IP address.

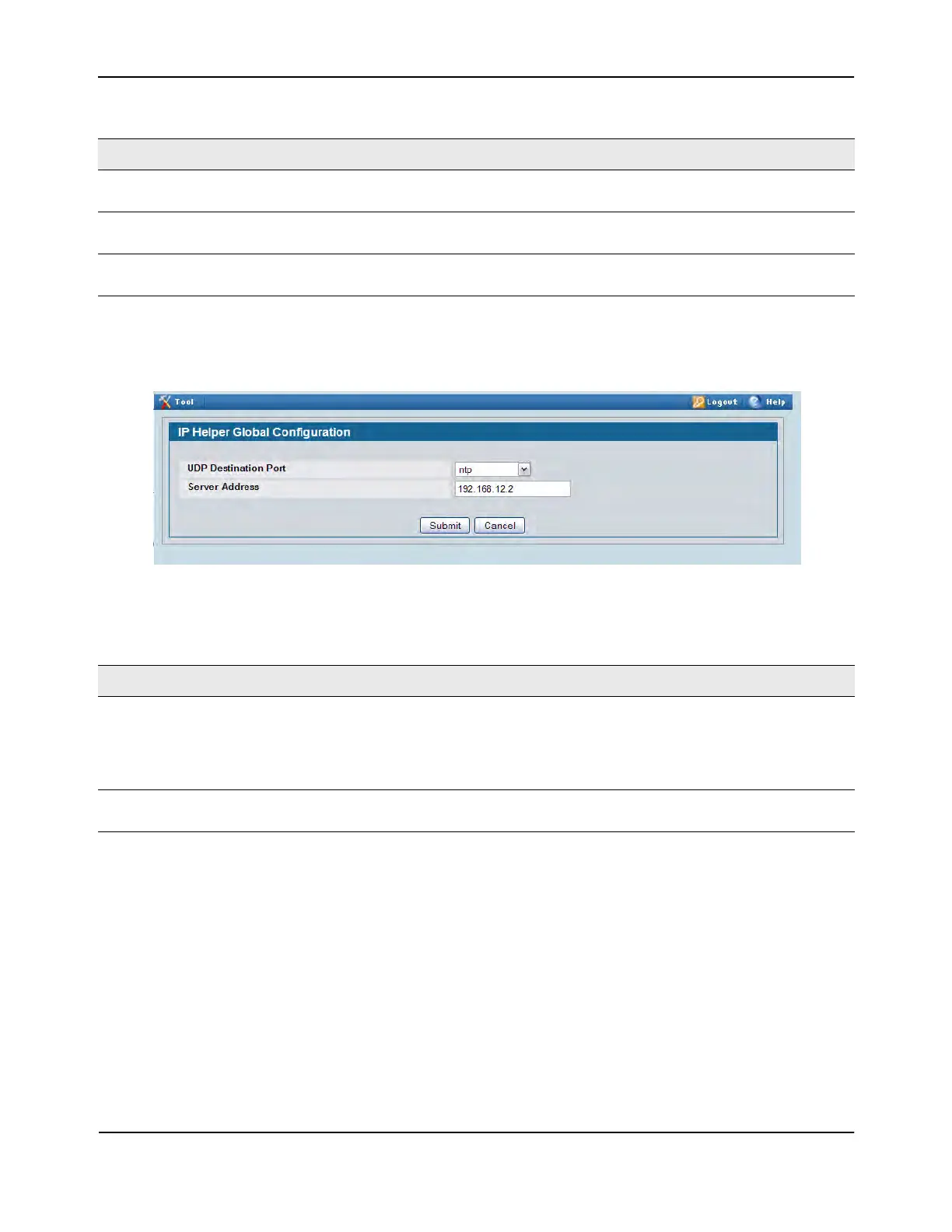

Figure 180: Adding a Global IP Helper Entry
Click Submit to send the updated configuration to the switch. These changes will not be retained across a
power cycle unless a Save configuration is performed.
Click Cancel to cancel the configuration on the screen and reset the data on the screen to the latest value
of the switch.
Server Address Shows the Server Address to which the packets with the given UDP
Destination Port will be relayed.
Hit Count Shows the number of times a packet has been forwarded or discarded
according to this entry.
Remove To delete a configured helper entry, select the Remove check box for the
appropriate entry and click Submit.
Table 163: IP Helper Global Configuration Add Fields
Field Description
UDP Destination Port (0-
65535)
The destination UDP port ID/Port Name of UDP packets to be relayed. Select
the protocol from the menu. If you want to configure other than the listed
protocols, select Other from the menu. Then user will be prompted with the
UDP Destination Port field. Select the DefaultSet to configure for the relay
entry for the default set of protocols.
Server Address The Server Address to which the packets with the given UDP Destination Port
will be relayed.
Table 162: IP Helper Global Configuration Fields (Cont.)
