D-Link DWL-2600AP User Manual

VLAN Routing
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 323
D-Link UWS User Manual
VLAN Routing Summary
Use the VLAN Routing Summary page to display information about the VLAN Routing interfaces configured on
the system.
To display the page, click LAN > Monitoring > L3 Status > VLAN Routing Summary in the navigation tree.

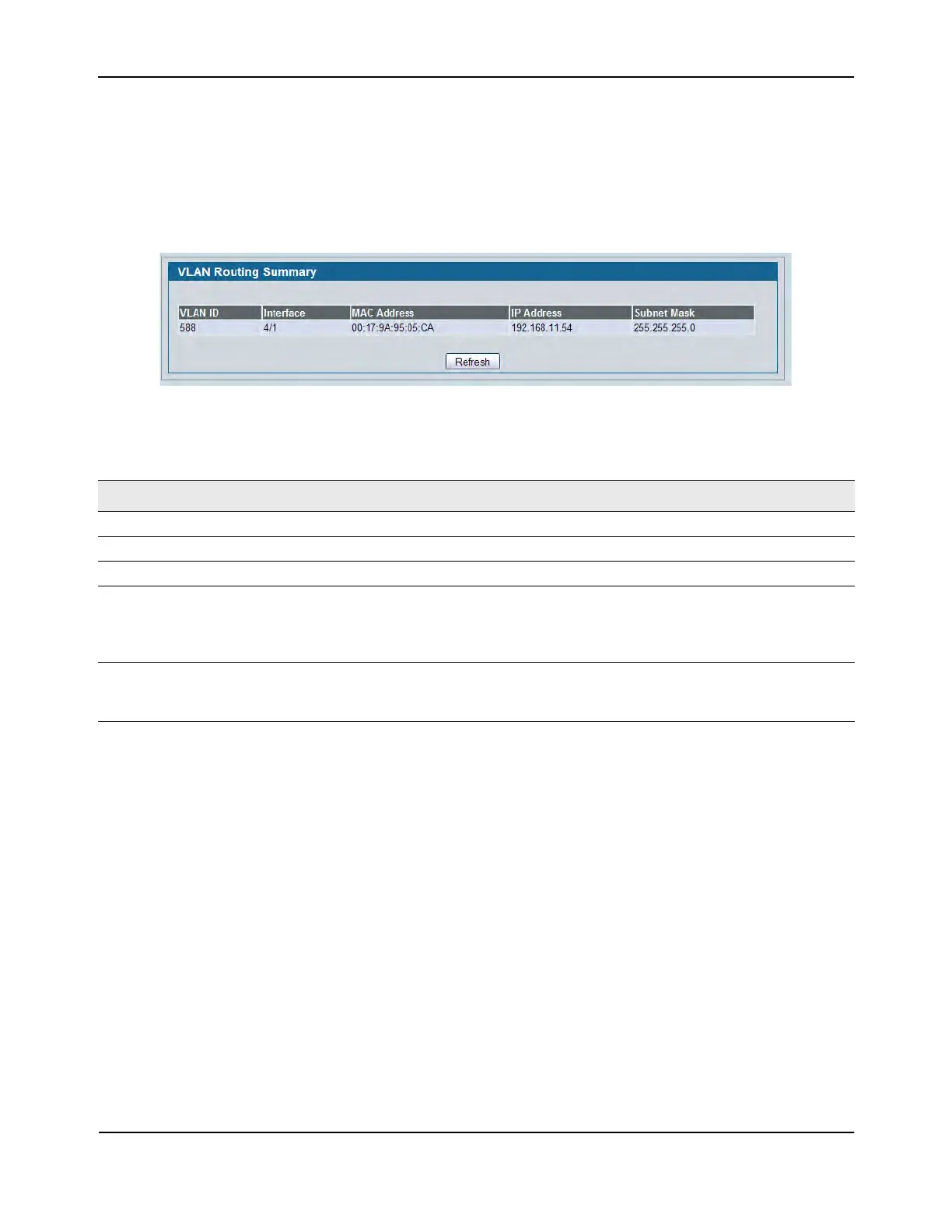

Figure 209: VLAN Routing Summary
Table 190: VLAN Routing Summary Fields
Field Description
VLAN ID The ID of the VLAN whose data is displayed in the current table row.
Slot/Port The logical slot and port number assigned to the VLAN Routing Interface.
MAC Address The MAC Address assigned to the VLAN Routing Interface.
IP Address The configured IP Address of the VLAN Routing Interface. Note that if a VLAN
is created and the IP address is not configured, the page by default shows an
IP address of 0.0.0.0. To configure the IP address, go to LAN > L3 Features > IP
> Interface Configuration.
Subnet Mask The configured Subnet Mask of the VLAN Routing Interface. This is 0.0.0.0
when the VLAN Routing Interface is first configured and must be entered on
the IP Interface Configuration page.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
