Managing VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 197
D-Link UWS User Manual
Double VLAN Tunneling Summary
The Double VLAN Tunneling Summary page shows the double VLAN tunneling configuration status for all ports
on the system.
To access the Double VLAN Tunneling Summary page, click LAN > Monitoring > VLAN Summary > Double VLAN
Status in the navigation tree.

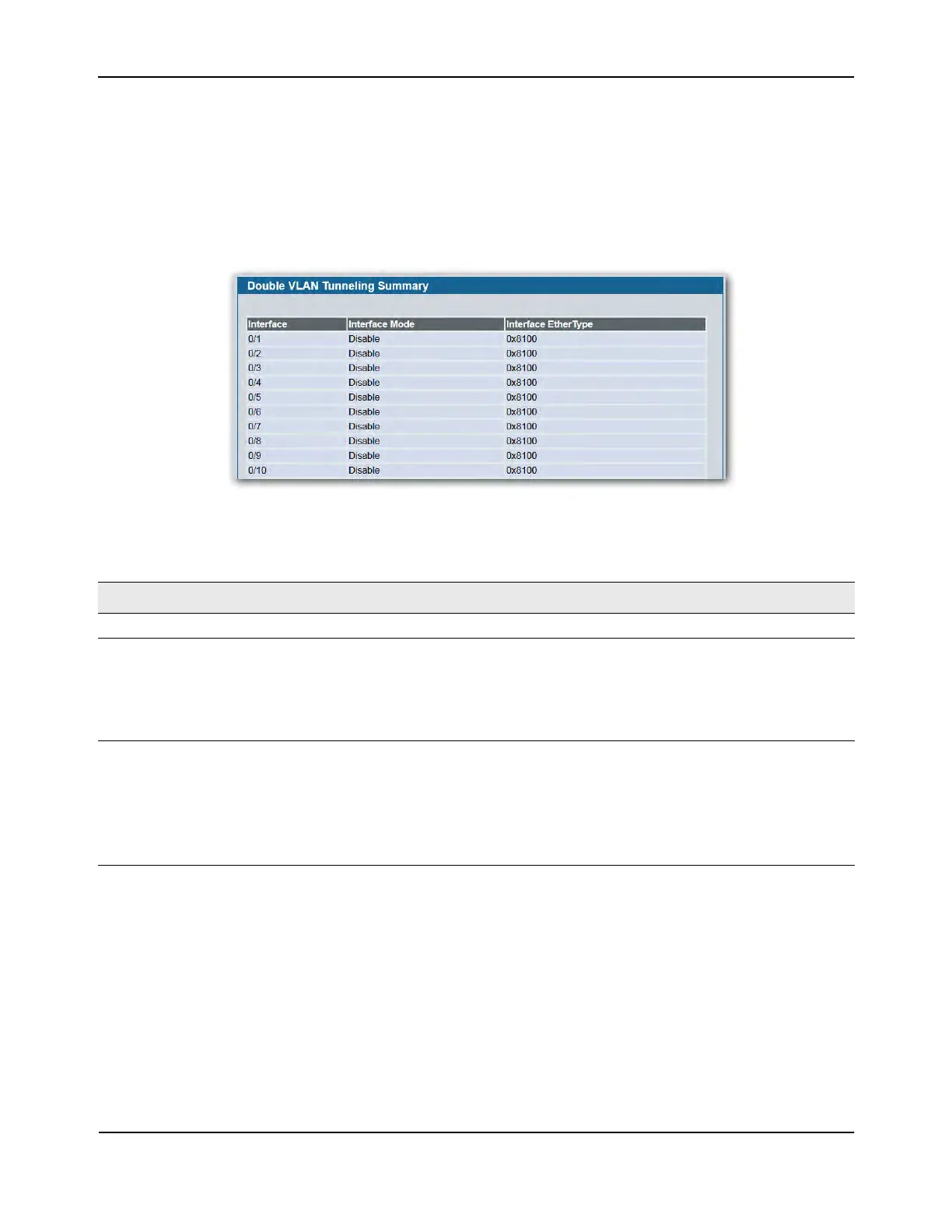

Figure 107: Double VLAN Tunneling Summary
Click Refresh to display the most current information from the router.
Table 93: Double VLAN Tunneling Summary Fields
Field Description
Interface Select the physical interface for which you want to display or configure data.
Interface Mode This specifies the administrative mode for Double VLAN Tagging:
Enable: Double VLAN Tagging is enabled for the specified port (or All
ports).
Disable: Double VLAN Tagging is disabled for the specified port (or All
ports), which is the default value.
EtherType The two-byte hex EtherType to be used as the first 16 bits of the Double VLAN
tag:
802.1Q Tag: Commonly used tag representing 0x8100
vMAN Tag: Commonly used tag representing 0x88A8
Custom Tag: Indicates that a custom tag has been configured and displays
its value.
