Locating WLAN Devices
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 653
D-Link UWS User Manual
Managed AP Coordinates
Use the Managed AP Coordinates page to manually specify where APs are physically located.

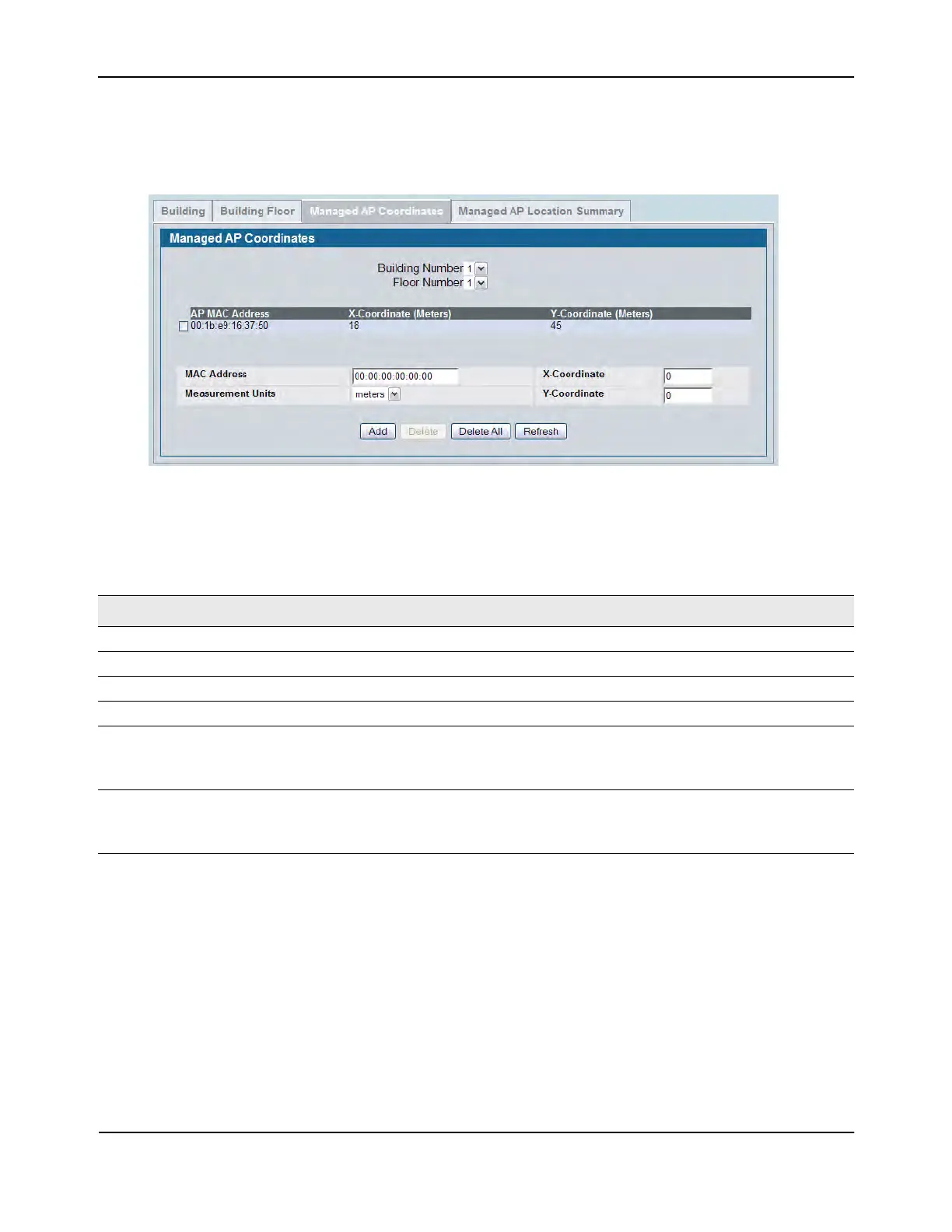

Figure 410: Managed AP Coordinates
The following table shows the fields available on the Managed AP Coordinates page.
Command Buttons
The page includes the following buttons:
• Add— Adds the AP information defined in the fields to the selected building and floor.
• Delete— Removes the selected AP from the database.
• Delete All—Removes all APs configured in the database.
• Refresh—Updates the page with the latest information.
Table 376: Managed AP Coordinates
Field Description
Building Number Select the number that identifies the building where the AP is located.
Floor Number Select the number that identifies the floor where the AP is located.
AP MAC Address Identifies the MAC address of the AP
Measurement Units Specify whether the coordinate units are meters or feet.
X-Coordinate Specify the X axis offset of the managed AP from some arbitrary 0,0 point on the
building floor. By convention the X axis is the horizontal axis.
The range is –3000 to 3000 feet or –1000 to 1000 meters.
Y-Coordinate Specify the Y axis offset of the managed AP from some arbitrary 0,0 point on the
building floor. By convention the Y axis is the vertical axis.
The range is –3000 to 3000 feet or –1000 to 1000 meters.
