D-Link DWL-2600AP User Manual

Basic Setup
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 557
D-Link UWS User Manual
Configuring the Default Network
Each network is identified by its Service Set Identifier (SSID), which is an alphanumeric key that identifies a
wireless local area network. You can configure up to 64 different networks on the DWS-4000 Series switch.
Each network can have a unique SSID, or you can configure multiple networks with the same SSID.
When you click Edit on the VAP page, the Wireless Network Configuration page appears, as the following
figure shows.

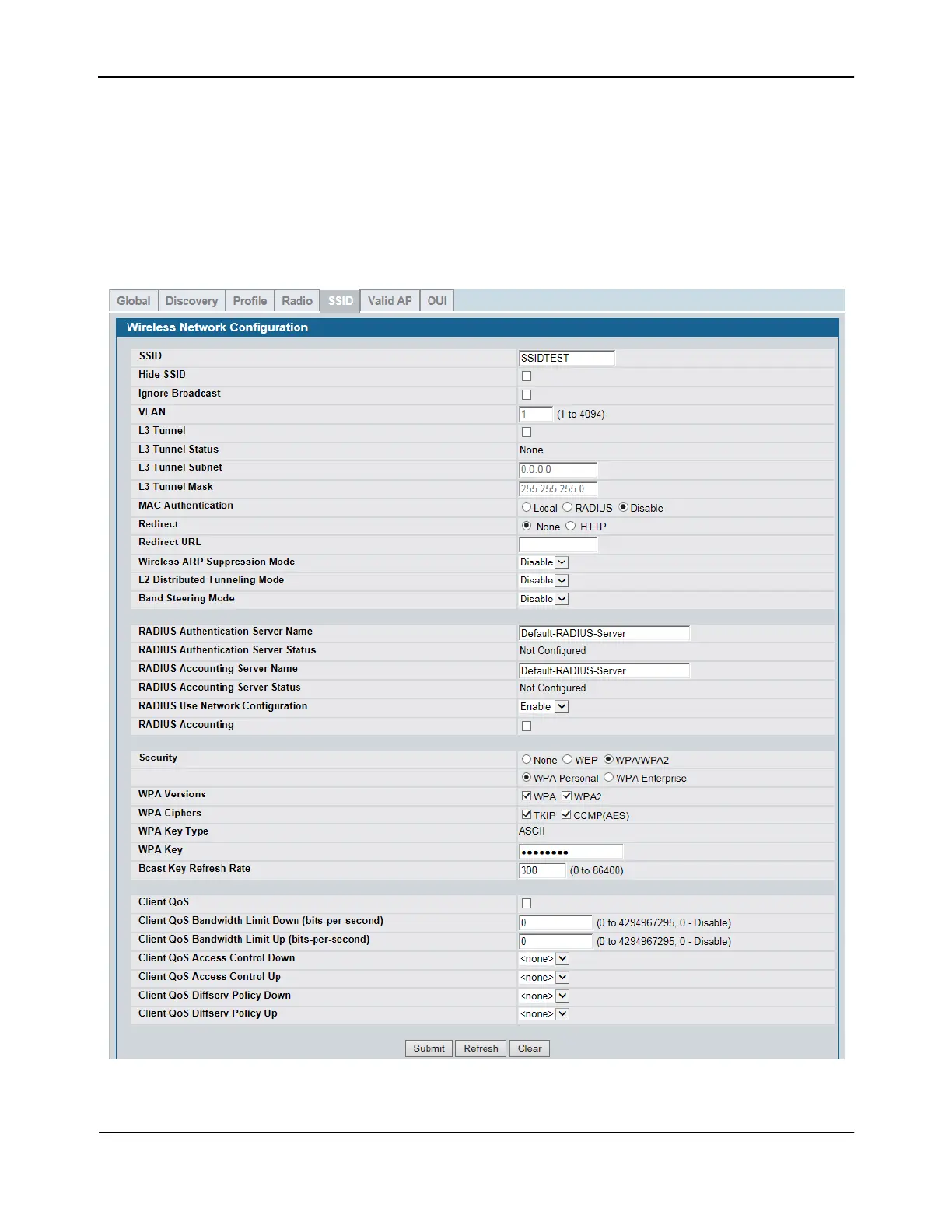

Figure 361: Configuring Network Settings

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
