Configuring IGMP Snooping
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 218
D-Link UWS User Manual
Click Refresh to re-display the page with the latest information from the router.
Multicast Router Configuration
If a multicast router is attached to the switch, its existence can be learned dynamically. You can also statically
configure a switch port as a multicast router interface. Use the Multicast Router Configuration page to
manually configure an interface as a static multicast router interface.
To access the IGMP Snooping Multicast Router Configuration page, click LAN > L2 Features> IGMP Snooping
> Multicast Router Configuration in the navigation tree.

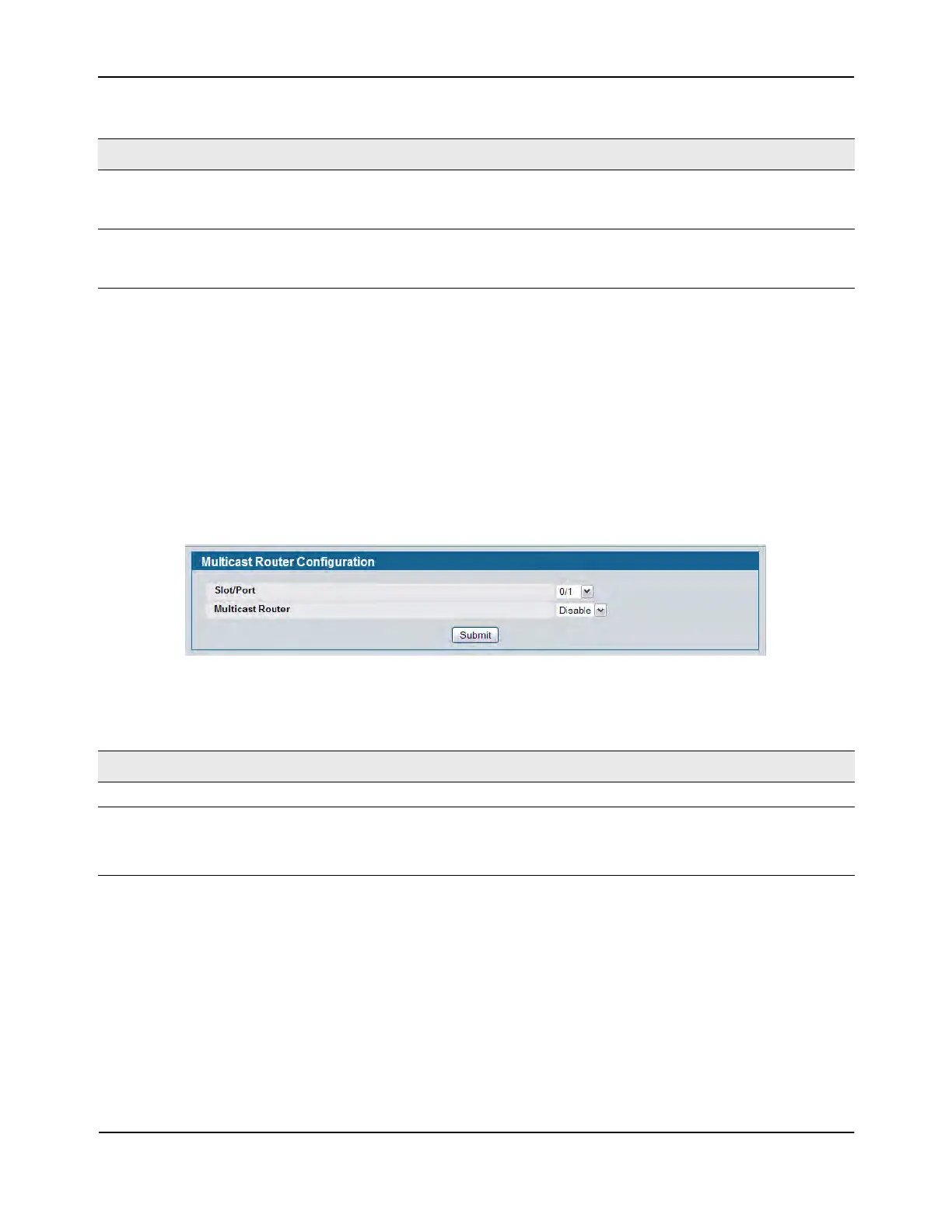

Figure 123: Multicast Router Configuration
If you enable or disable multicast router configuration on an interface, click Submit to apply the new settings
to the switch.
Operational Maximum
Response Time
Displays the value for maximum response time of IGMP Snooping for the
specified VLAN ID. Its value is learned dynamically from the IGMPv2 or
IGMPv3 queries received on this VLAN.
Multicast Router Expiry Time Shows the amount of time to wait before removing an interface that is
participating in the VLAN from the list of interfaces with multicast routers
attached. The interface is removed if a query is not received.
Table 107: Multicast Router Configuration Fields
Field Description
Slot/Port Select the physical or LAG interface to display.
Multicast Router Set the multicast router status:
Enabled: The port is a multicast router interface.
Disabled: The port does not have a multicast router configured.
Table 106: IGMP Snooping VLAN Status Fields (Cont.)
Field Description
