LLDP Local Device Information
This page displays information on LLDP-MED information advertised on the selected local interface. To display
this page, click LAN > Monitoring > LLDP Status LLDP-MED > Local Device Information in the navigation tree.

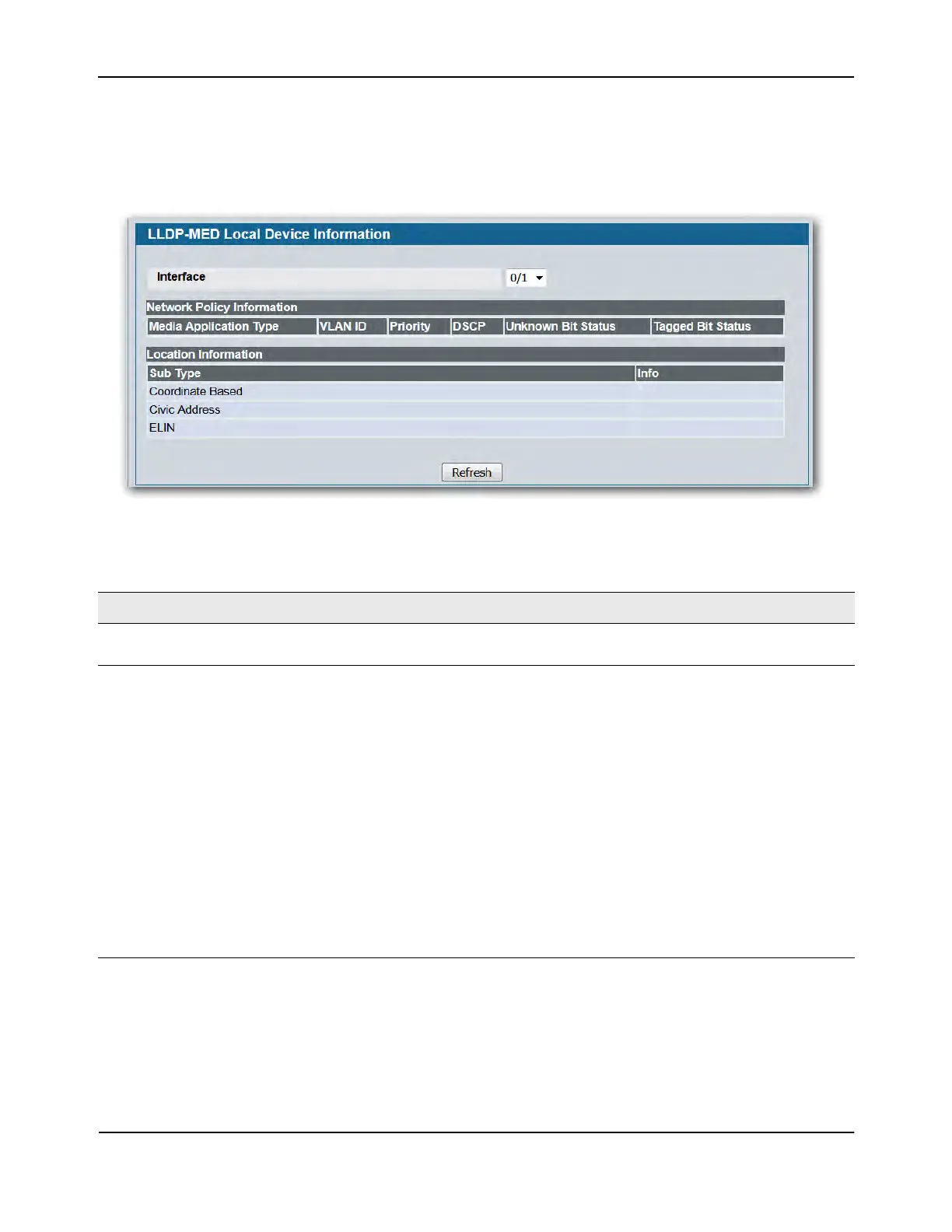

Figure 169: LLDP-MED Local Device Information
Table 152: LLDP-MED Local Device Information Fields
Field Description
Interface Select from the list of all the ports on which LLDP-MED frames can be
transmitted.
Network Policy Information Specifies if network policy TLV is present in the LLDP frames:
• Media Application Type: Specifies the application type. Types of
application types are unknown, voicesignaling, guestvoice,
guestvoicesignalling, softphonevoice, videoconferencing,
streammingvideo, vidoesignalling. Each application type that is received
has the VLAN ID, priority, DSCP, tagged bit status and unknown bit status.
A port may receive one or many such application types. If a network policy
TLV has been transmitted only then would this information be displayed.
• Vlan Id: Specifies the VLAN id associated with a particular policy type.
• Priority: Specifies the priority associated with a particular policy type.
• DSCP: Specifies the DSCP associated with a particular policy type.
• Unknown Bit Status: Specifies the unknown bit associated with a
particular policy type.
• Tagged Bit Status: Specifies the tagged bit associated with a particular
policy type.
