Router
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 316
D-Link UWS User Manual
Best Routes Table
The route table manager collects routes from multiple sources: static routes, RIP routes, and local routes. The
route table manager may learn multiple routes to the same destination from multiple sources. In that case,
the route table manager selects the route with the lowest route preference value to use for forwarding to that
destination. Use the Best Routes Table page to display the best routes from the routing table. To view all
routes, including multiple routes to the same destination, see “Route Table” on page 314.
To display the page, click LAN > L3 Features > Router > Best Routes Table in the navigation tree.

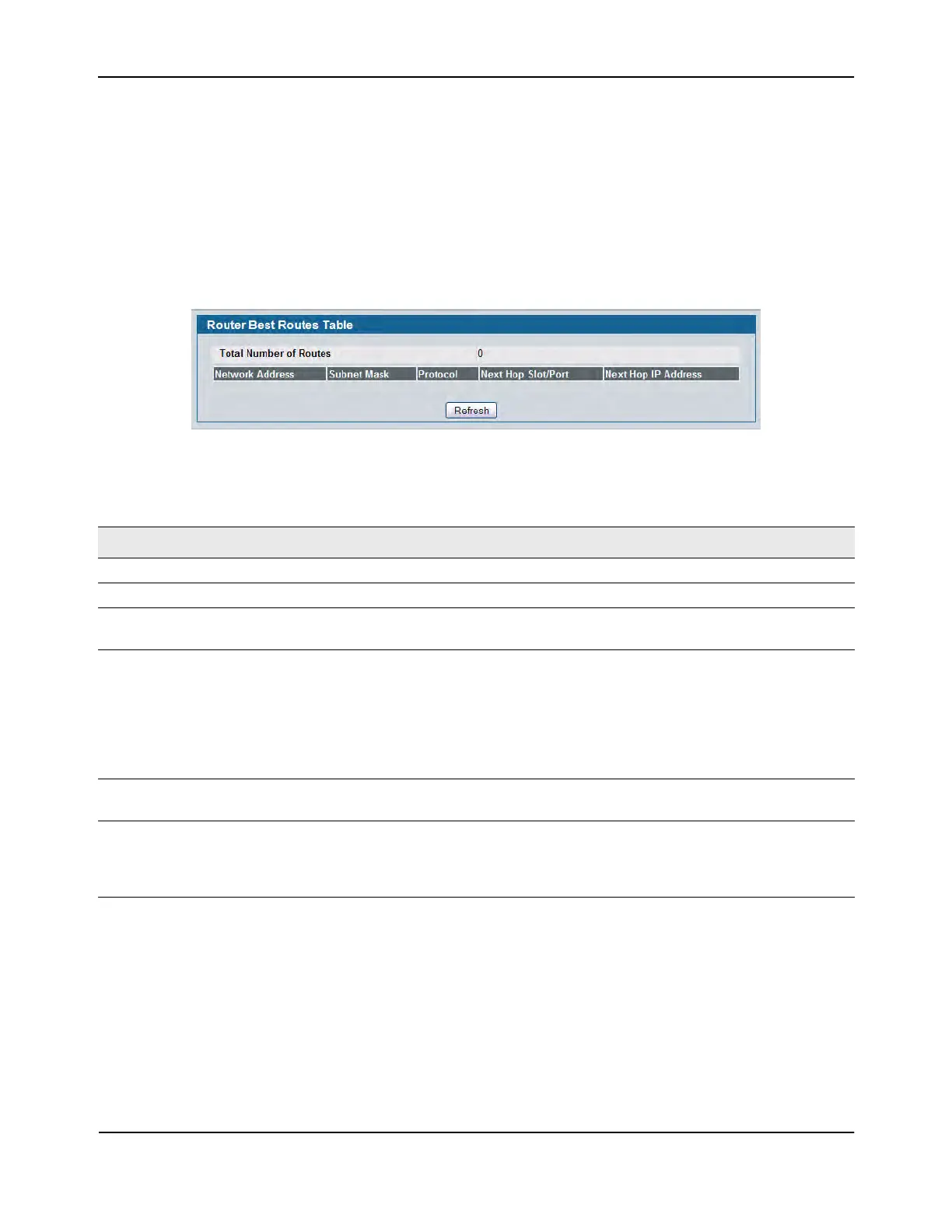

Figure 203: Best Routes Table
• Click Refresh to update the information on the screen.
Table 185: Best Routes Table Fields
Field Description
Total Number of Routes The total number of routes in the route table.
Network Address The IP route prefix for the destination.
Subnet Mask Also referred to as the subnet/network mask, this indicates the portion of the
IP interface address that identifies the attached network.
Protocol This field tells which protocol created the specified route. The possibilities are
one of the following:
• Local
• Static
• Default
• RIP
Next Hop Slot/Port The outgoing router interface to use when forwarding traffic to the
destination.
Next Hop IP Address The outgoing router IP address to use when forwarding traffic to the next
router (if any) in the path towards the destination. The next router is always
one of the adjacent neighbors or the IP address of the local interface for a
directly attached network.
