Configuring Differentiated Services
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 342
D-Link UWS User Manual
To display the page, click LAN > Quality of Service > Differentiated Services > Diffserv Configuration in the
navigation menu.

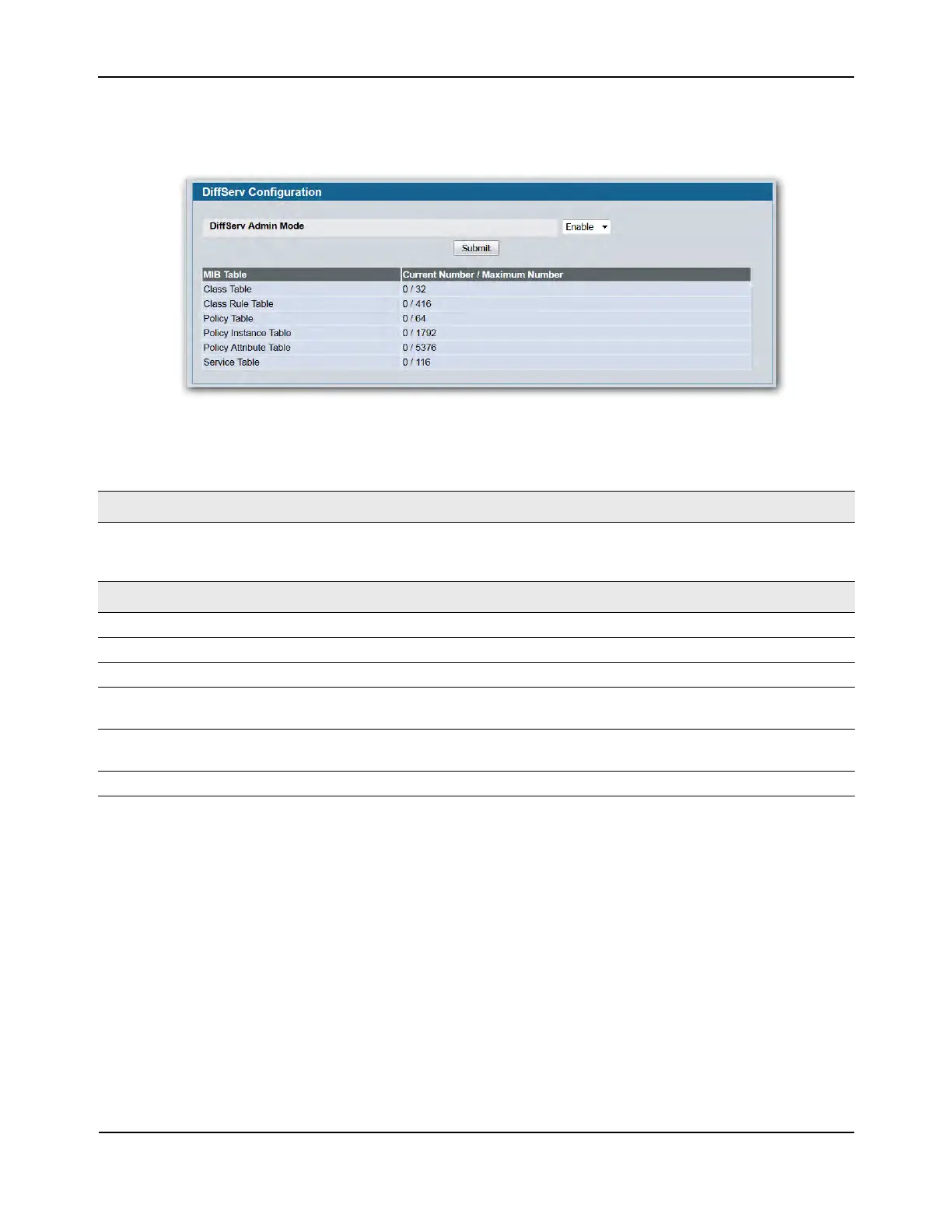

Figure 224: DiffServ Configuration
• If you change the DiffServ admin mode, click Submit to apply the change to the system.
Table 204: DiffServ Configuration Fields
Field Description
DiffServ Admin Mode Turns admin mode on and off. The default value is Enable. While disabled, the
DiffServ configuration is retained and can be changed, but it is not active.
While enabled, Differentiated Services are active.
MIB Table
Class Table Displays the current and maximum number of rows of the class table.
Class Rule Table Displays the current and maximum number of rows of the class rule table.
Policy Table Displays the current and maximum number of rows of the policy table.
Policy Instance Table Displays the current and maximum number of rows of the policy instance
table.
Policy Attributes Table Displays the current and maximum number of rows of the policy attributes
table.
Service Table Displays the current and maximum number of rows of the service table.
