D-Link DWL-2600AP User Manual

Optimizing WLAN Traffic
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 720
D-Link UWS User Manual
Configuring the Automatic Power Adjustment
This example describes how to run and apply the Automatic Power Adjustment (APA) algorithm.

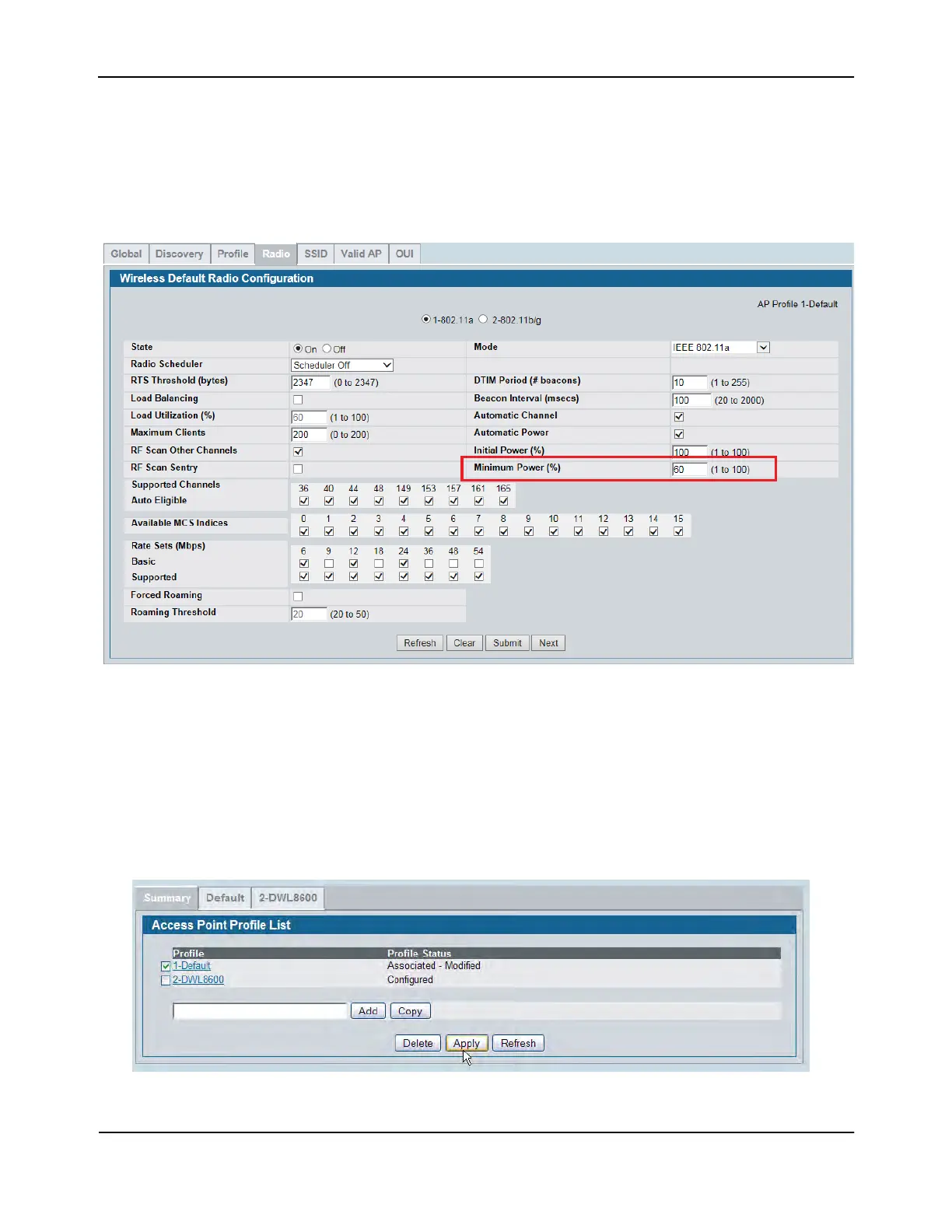

1. To adjust the minimum power level setting on the AP profile, go to the WLAN > Administration > Basic
Settings > Radio page and set the Minimum Power field to a percentage lower than 100, for example 60%.
2. Click Submit.
3. Optionally, select Radio 2 and configure the Minimum Power setting, and then click Submit.
4. If the APs are already managed, use the following steps to reapply the profile so the new settings take
effect:
a. Go to the WLAN > Administration > Advanced Configuration > AP Profiles page.
b. Select the check box next to the profile you modified.
c. Click Apply.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
