D-Link DWL-2600AP User Manual

RADIUS Settings
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 413
D-Link UWS User Manual
RADIUS Server Configuration
From the RADIUS Authentication Server Configuration page, you can add a new RADIUS server, configure
settings for a new or existing RADIUS server, and view RADIUS server status information. The RADIUS client on
the switch supports up to 32 named authentication and accounting servers.
To access the RADIUS Server Configuration page, click LAN > Security > RADIUS > RADIUS Authentication
Server Configuration in the navigation menu.
If there are no RADIUS servers configured on the system, or if you select Add from the RADIUS Server Host
Address menu, a subset of the fields described in the following table are available. After you enter the RADIUS
host address and click Submit, the additional configuration fields appear.

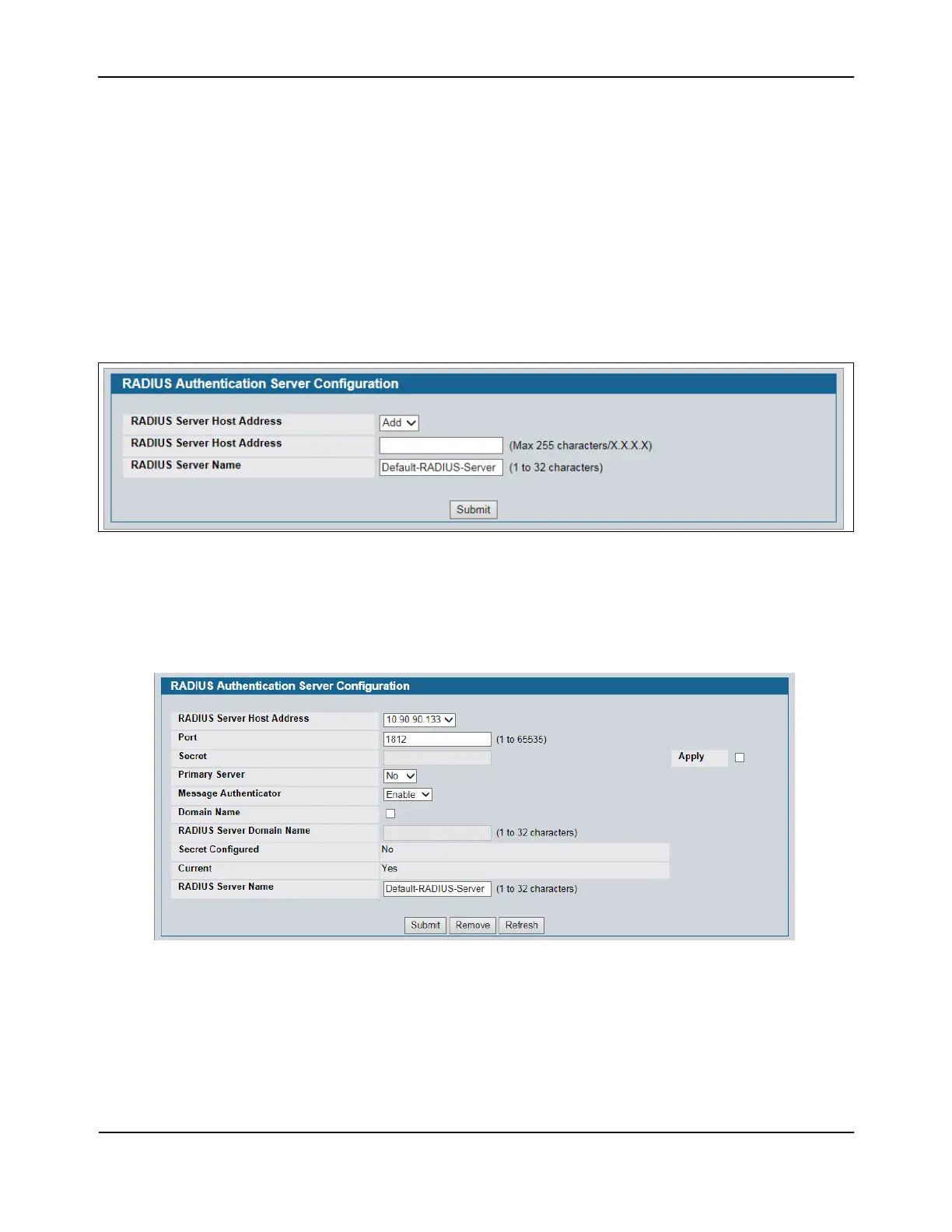

Figure 282: RADIUS Server Configuration—Add Server
If at least one RADIUS server is configured on the switch, and a host address is selected in the RADIUS Server
Host Address field, then additional fields are available on the RADIUS Server Configuration page.
Figure 283: RADIUS Server Configuration—Server Added

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
