Configuring the Wireless Distribution System
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 648
D-Link UWS User Manual
Command Buttons
The page includes the following buttons:
• Submit—Update the switch with the values you enter.
WDS Link Configuration
After you create a WDS-Managed AP group, use the WDS AP Link Configuration page to configure the WDS
links between the APs that are members of the group.

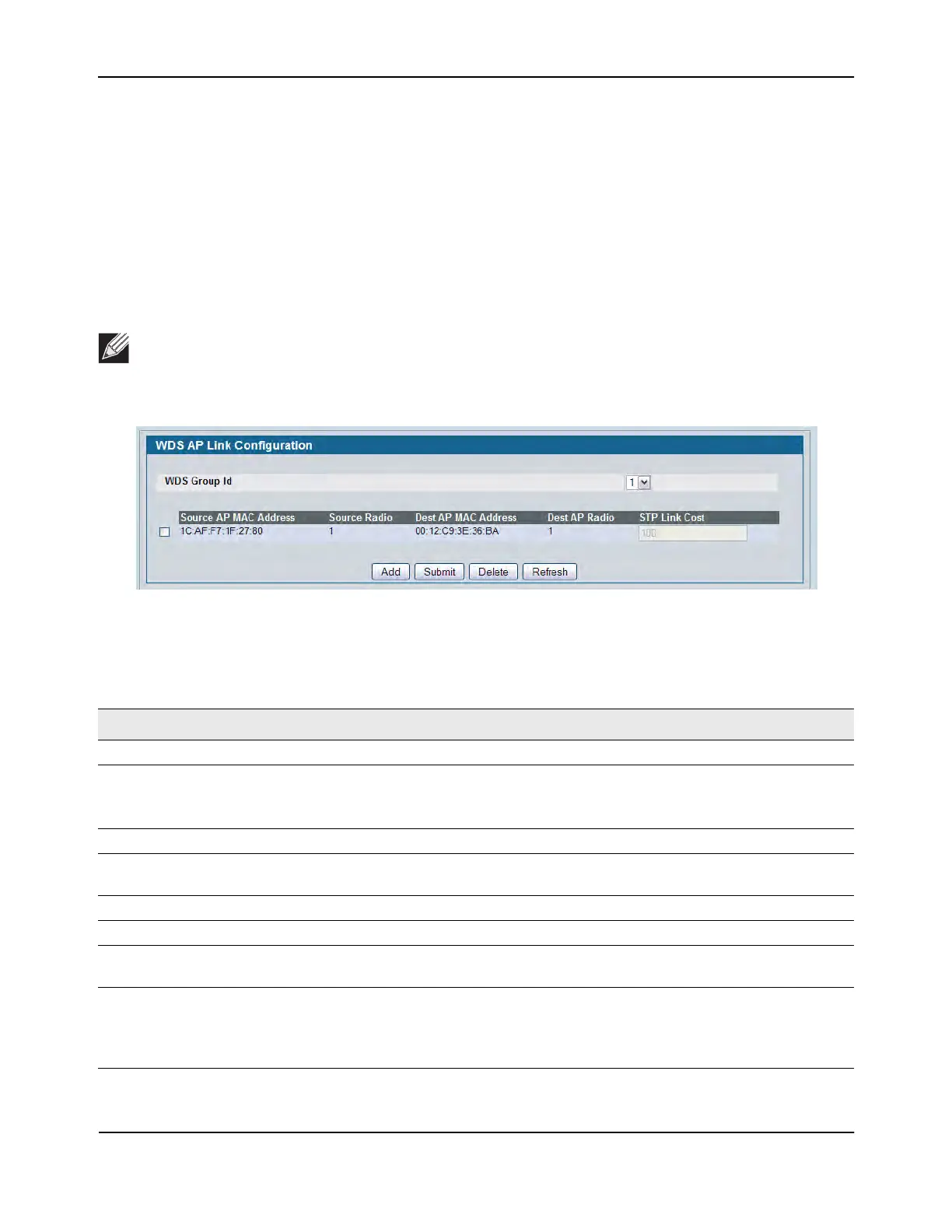

Figure 406: WDS AP Link Configuration
The following table shows the fields available on the WDS AP Link Configuration page.
Note: After you change WDS-Managed AP group settings, make sure you push the configuration to
other switches in the cluster.
Table 372: WDS AP Link Configuration
Field Description
WDS Group ID Select the ID associated with the group to configure.
Source AP MAC
Address
MAC Address of the source AP. The AP must be included in the selected WDS group.
Note: The WDS links are bidirectional. The terms Source and Destination simply
reflect the WDS link endpoints specified when the WDS link is created.
Source Radio The radio number of the WDS link endpoint on the source AP.
Source AP Hardware
Type
The hardware type identifier associated with the source AP.
Dest AP MAC Address The MAC address of the destination AP in the group.
Destination Radio The radio number of the WDS link endpoint on the destination AP.
Destination AP
Hardware Type
The hardware type identifier associated with the destination AP.
Link Cost Spanning Tree Path cost for the WDS link. The range is 0–255.
When multiple alternate paths are defined in the WDS group, the link cost is used to
indicate which links are the primary links and which links are the secondary links. The
spanning tree selects the path with the lowest link cost.
