D-Link DWL-2600AP User Manual

Configuring a Virtual Access Point
D-Link Unified Wired and Wireless Access System
July 2012 Page 691
D-Link UWS User Manual
d. In the Redirect field, select the HTTP option.
e. In the Redirect URL field, enter www.dlink.com.tw
f. In the Bandwidth Limit Down field, enter 3000000 to limit the download speed to 3 Mbps for the VAP.
g. In the Bandwidth Limit Up field, enter 100000 to limit the upload speed to 1 Mbps for the VAP.
h. Click Submit to apply the settings to the switch.

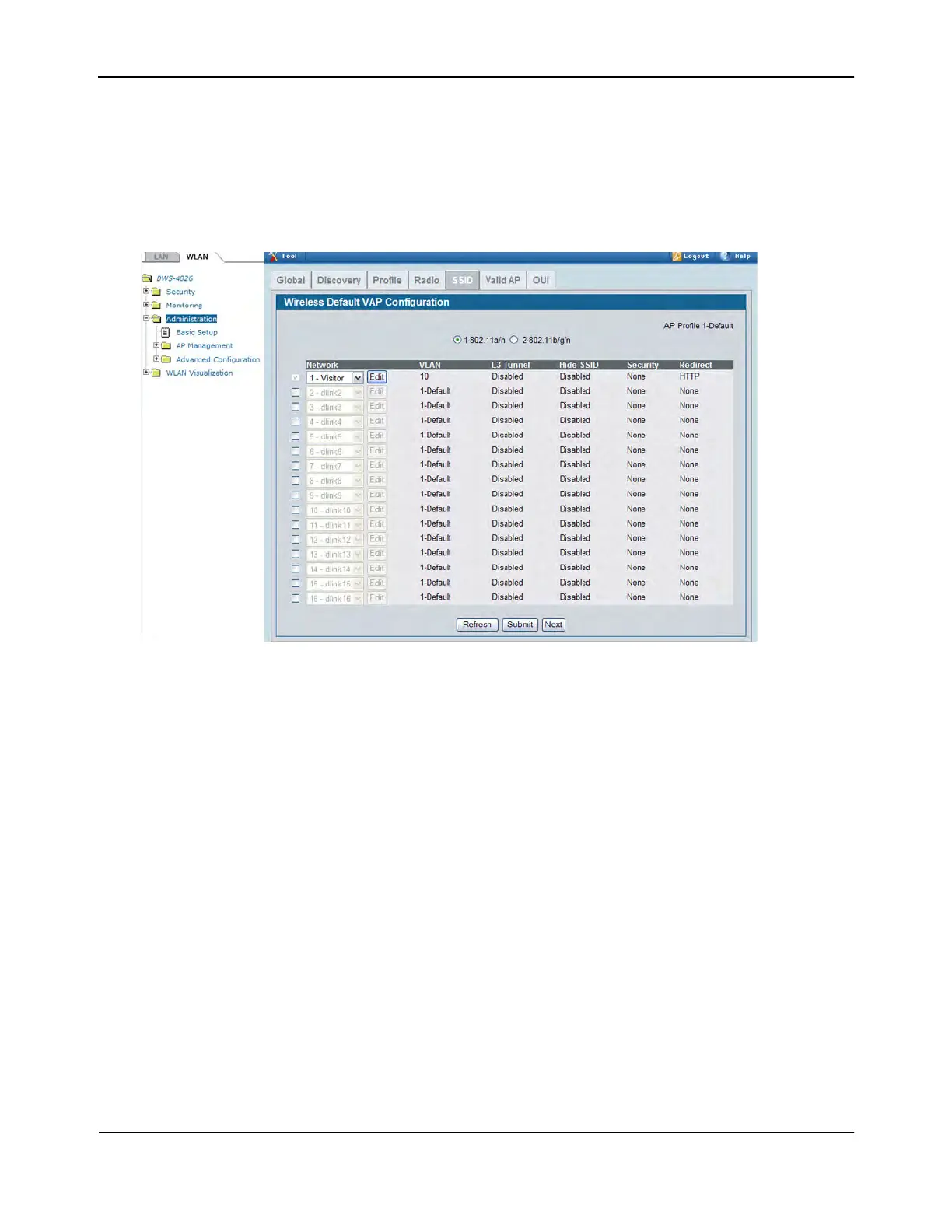

3. Click the SSID tab to return to the Wireless Default VAP Configuration page.
4. Select the check box next to network 2, and then click Edit.
5. Configure the second VAP.
a. Delete the existing SSID and enter Corporate in the SSID field.
b. In the VLAN field, enter 20.
c. From the Security option, select WPA.
Additional security fields appear.
d. Clear the WPA option so that only WPA2 clients can connect to the VAP.
e. Select the CCMP (AES) option.
f. Enter a WPA Key.
g. Click Submit.
6. Click the VAP tab to return to the Wireless Default VAP Configuration page.
7. Select the check box next to network 3, and then click Edit.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
