D-Link DWL-2600AP User Manual

Configuring a Network to Use WPA2-Enterprise and Dynamic
VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 714
D-Link UWS User Manual
3. Verify that the accountant user can connect to the Corporate network and is assigned to VLAN 30.
a. Use a wireless client to access the wireless network with the Corporate SSID.
b. When prompted for the username and password, enter accountant for both fields.

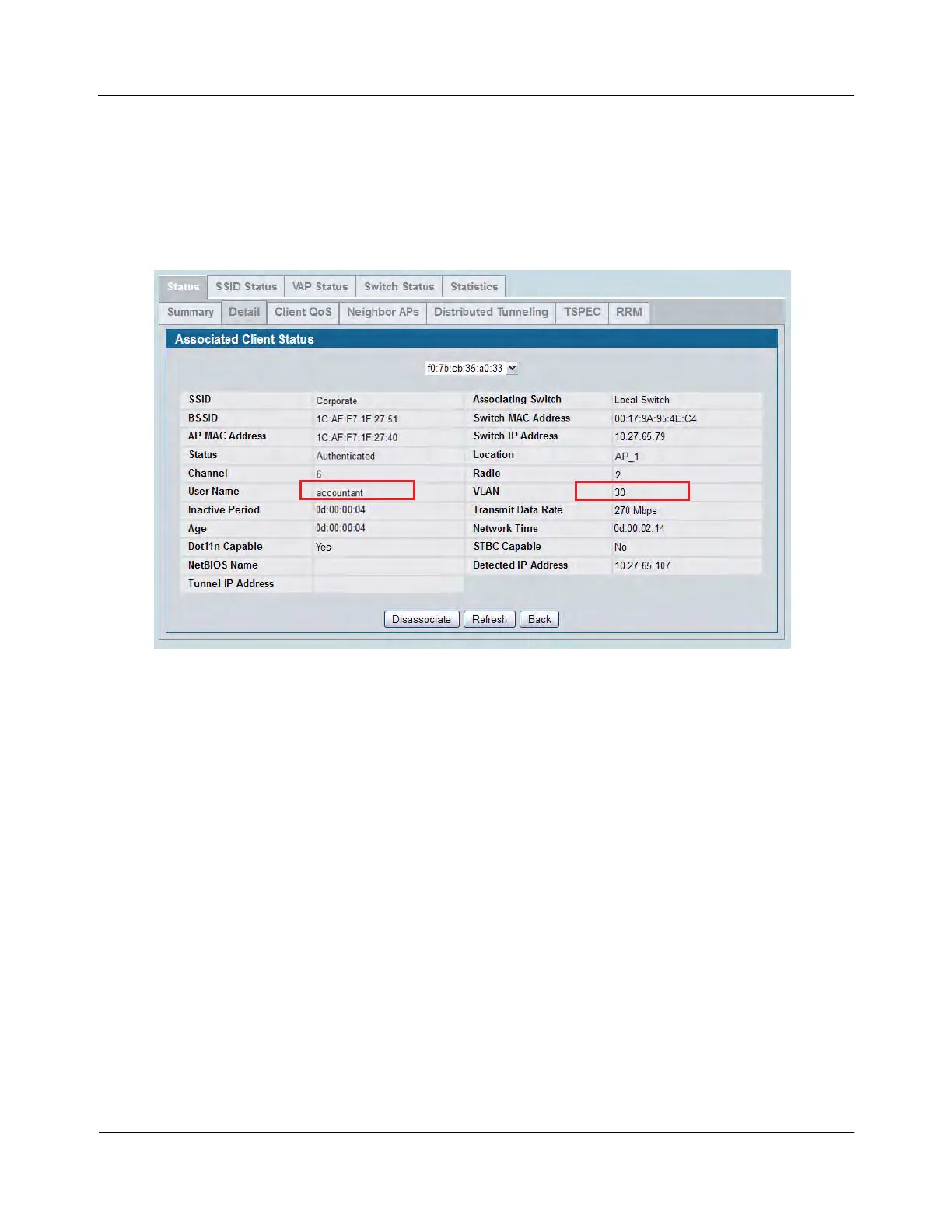

c. To verify the VLAN assigned to the engineer user, go to the WLAN > Monitoring > Client > Associated
Clients page and select the MAC address of the client Note the VLAN of the accountant user is VLAN 30,
which has been dynamically assigned by the RADIUS server.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
