D-Link DWL-2600AP User Manual

Optimizing WLAN Traffic
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 718
D-Link UWS User Manual

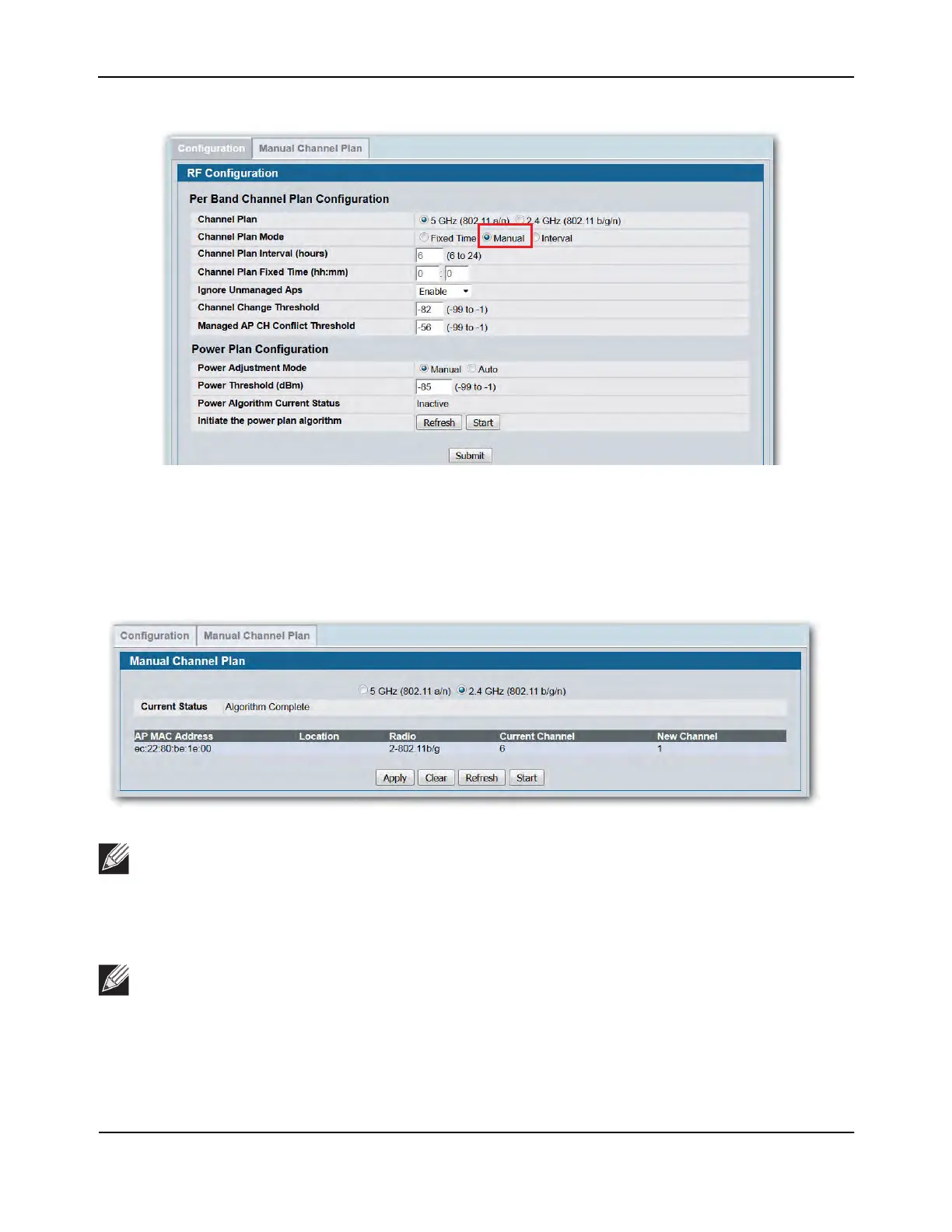

2. Click the Manual Channel Plan tab.
3. Select the radio to run the channel plan on, and then click Start.
4. To view the channel plan that the ACA algorithm recommends, click Refresh.
The following figure shows that the ACA algorithm determined that the best operating channel for Radio
1 on AP_3 is channel 149, and not its current operating channel.
5. To apply the suggested channel plan, click Apply.
Note: If the ACA algorithm determines that the APs are currently operating on the best channel, the
Current Status field reports “Algorithm Complete: No Change Required.”
Note: D-Link recommends that you apply the channel plan when WLAN traffic is low. When a radio
changes to a different channel, any associated clients are forced to disassociate and reassociate.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
