D-Link DWL-2600AP User Manual

Optimizing WLAN Traffic
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 722
D-Link UWS User Manual

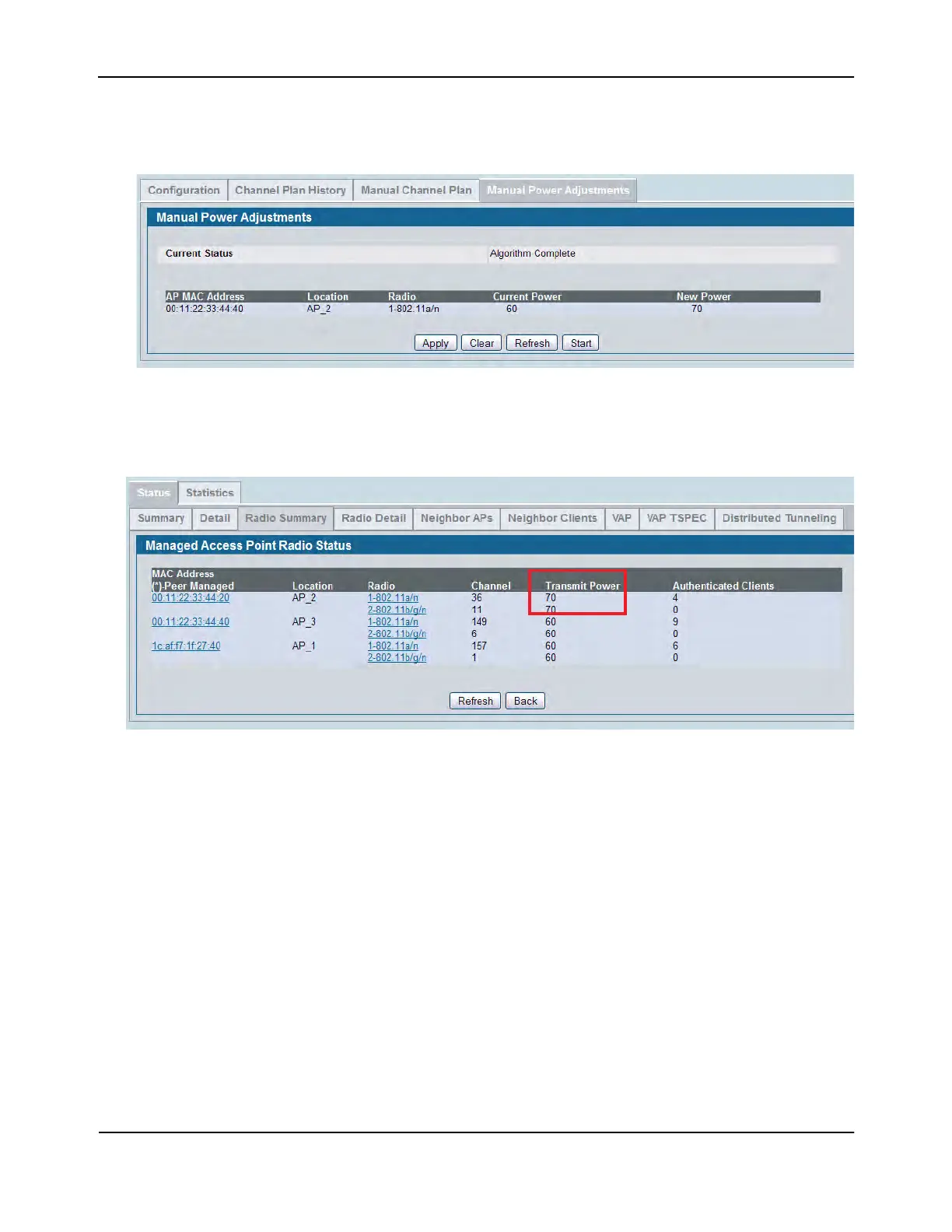

The following figure shows that the APA algorithm detected a high number of transmission errors on AP_2,
and that the power level should be increased by 10% to increase the transmission area.
10. To apply the recommendation and allow the AP to adjust its transmission power level, click Apply.
11. Verify that the power level has been adjusted by viewing the WLAN > Monitoring > Access Points >
Managed AP Status > Radio Summary page.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
