CK22/CK22H
HYDRAULIC SYSTME - SERVICING
T46WAD3A
T46WAD4A

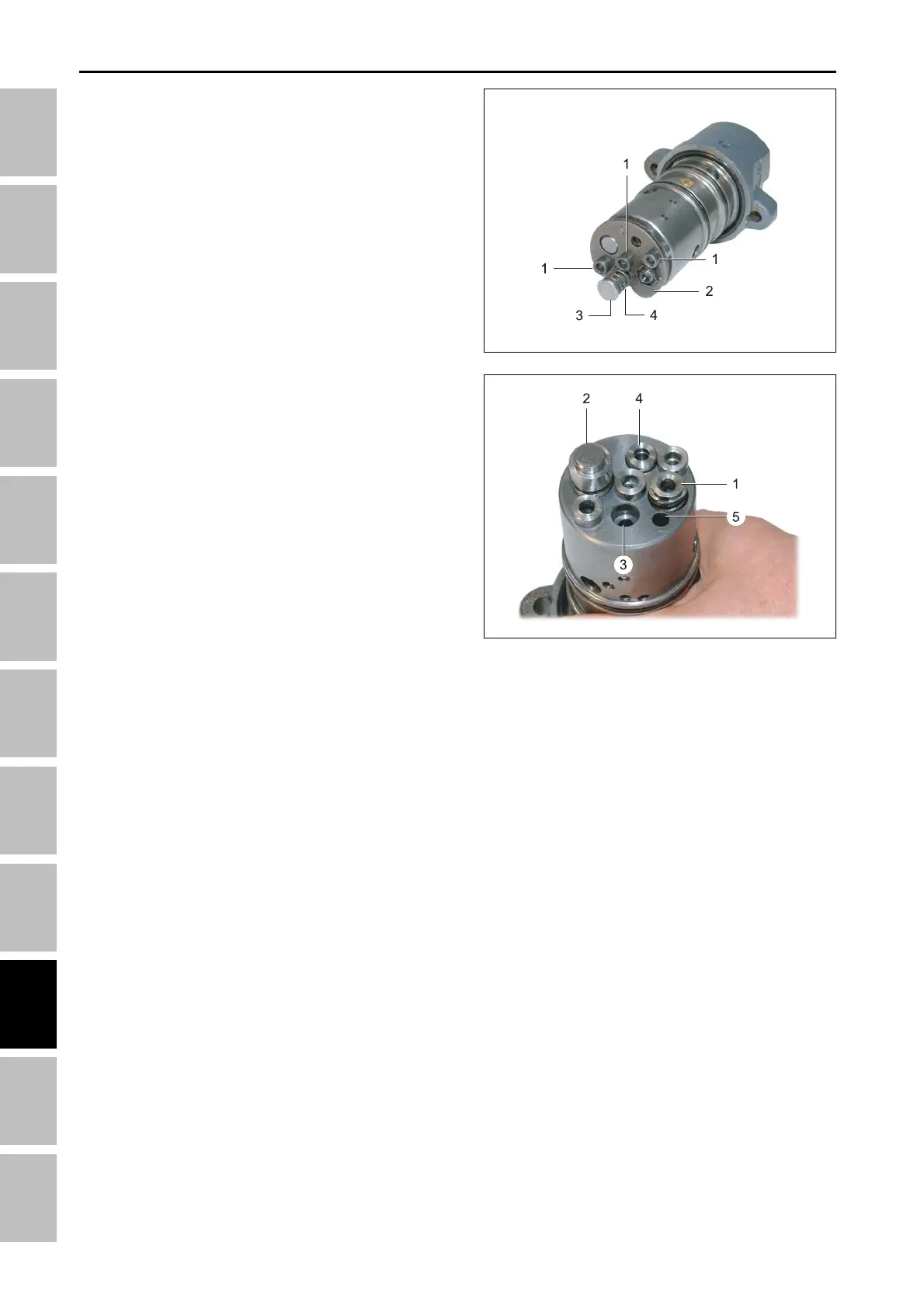

5. Unscrew the socket head bolt (1) and remove the
end plate (2), control spool (3), spring (4) and
spacer behind the end plate.
6. Disassemble each valve. (refer to the figure)
7. Refer to the installation procedure for the removal
of each valve.
8. Check the valves for any foreign material and clean
them if necessary.
9. Check the inner parts for damage, especially worn
spool, and replace the MLS valve assembly if
necessary.
(1) Safety valve (4) Pilot valve
(2) Regulator piston (5) Drain hole
(3) Control spool hole
