CK22/CK22H
HYDRAULIC SYSTME - SERVICING
T46WAD5A
T46WAD6A

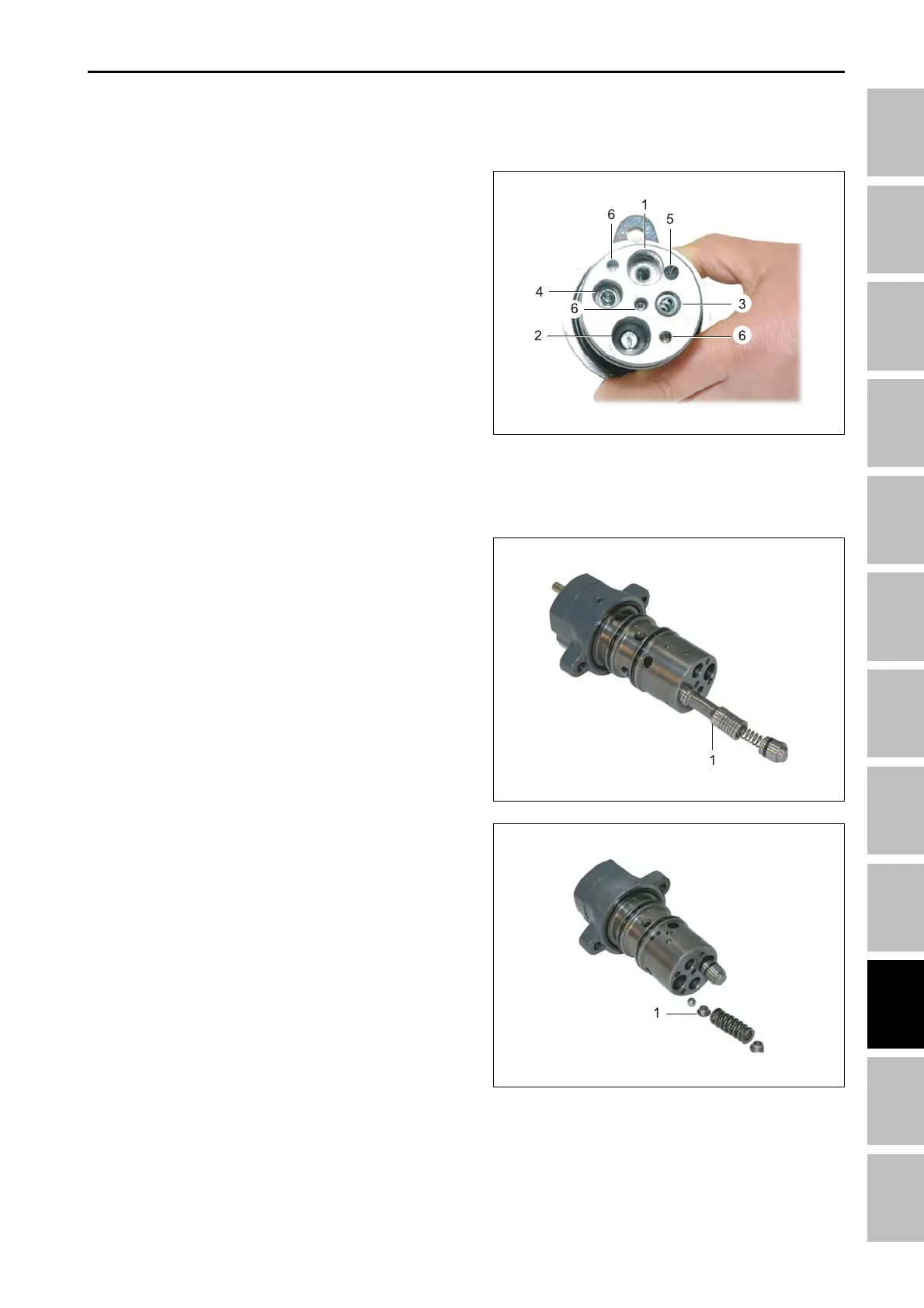

B. REASSEMBLY
Apply sufficient amount of oil to each part to prevent
any damage when installing them.
1. Be careful with the location of valves.
(1) Safety valve hole (4) Pilot valve hole
(2) Regulator piston hole (5) Drain hole
(3) Control spool hole (6) Bolt hole
2. When installing the regulator piston (1), insert the
end with orifice hole first.
3. When installing the safety valve, insert the steel ball
first. The convex side of the washer (1) should face
the spring. Install the washer with smaller I.D. in
inner side and apply small amount of grease on the
washer for proper seating.
