Interfaces Virtual LANs(VLANs)
IX20 User Guide
229
Create a trunked VLAN route
Required configuration items
n
Device to beassigned to the VLAN.
n
The VLAN ID. The TCPheader usesthe VLAN IDto identify the destination VLAN for the packet.
To create a VLAN:
Web
1. Log into Digi Remote Manager, or log into the local Web UI asa user with full Admin access
rights.
2. Access the device configuration:
Remote Manager:
a. Locate your device as described in Use Digi Remote Manager to view and manage your
device.
b. Click the Device ID.
c. Click Settings.
d. Click to expand Config.

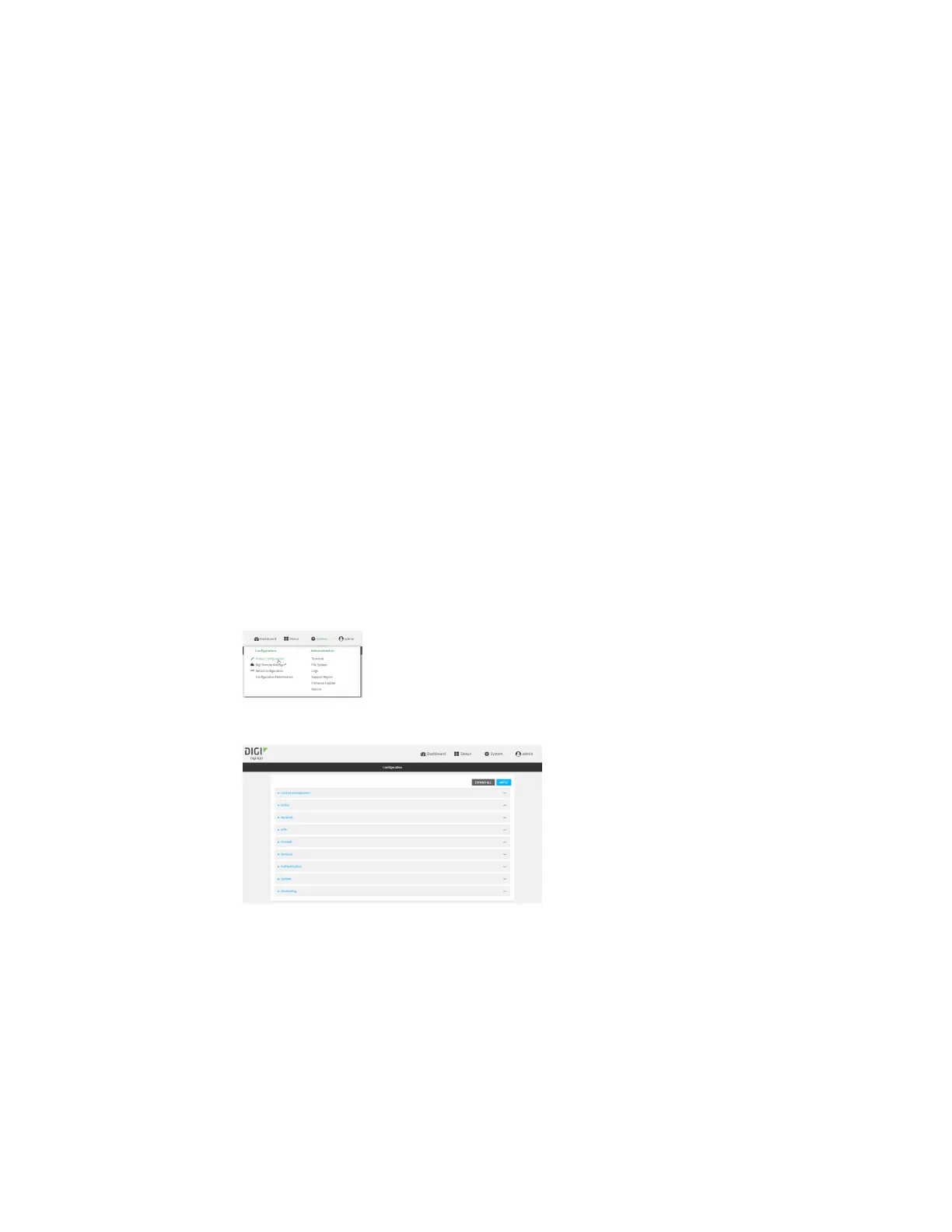

Local Web UI:
a. On the menu, click System. Under Configuration, click Device Configuration.
The Configuration window is displayed.
3. Click Network >Virtual LAN.
4. Type a name for the VLAN and click .
5. Select the Device.
6. Type or select a unique numeric ID for the VLAN ID.
7. Click Apply to savethe configuration and apply the change.
Command line
