Virtual PrivateNetworks(VPN) MACsec
IX20 User Guide
634
n
Automatic: Usesa pre-shared key to generate association key information, which is
periodically rotated through using 802.1x.
n
Manual: Usesconnectivity association key information that ismanually entered in the CAKand
CKN fields.
Configure a MACsec tunnel
Your IX20 device supportsMACsec (Layer 2 Tunneling Protocol).
Required configuration items
n
The local network device to connect to the peer device.
n
When using Manual mode, the connectivity association key and key name.
Web
1. Log into Digi Remote Manager, or log into the local Web UI asa user with full Admin access
rights.
2. Access the device configuration:
Remote Manager:
a. Locate your device as described in Use Digi Remote Manager to view and manage your
device.
b. Click the Device ID.
c. Click Settings.
d. Click to expand Config.
Local Web UI:

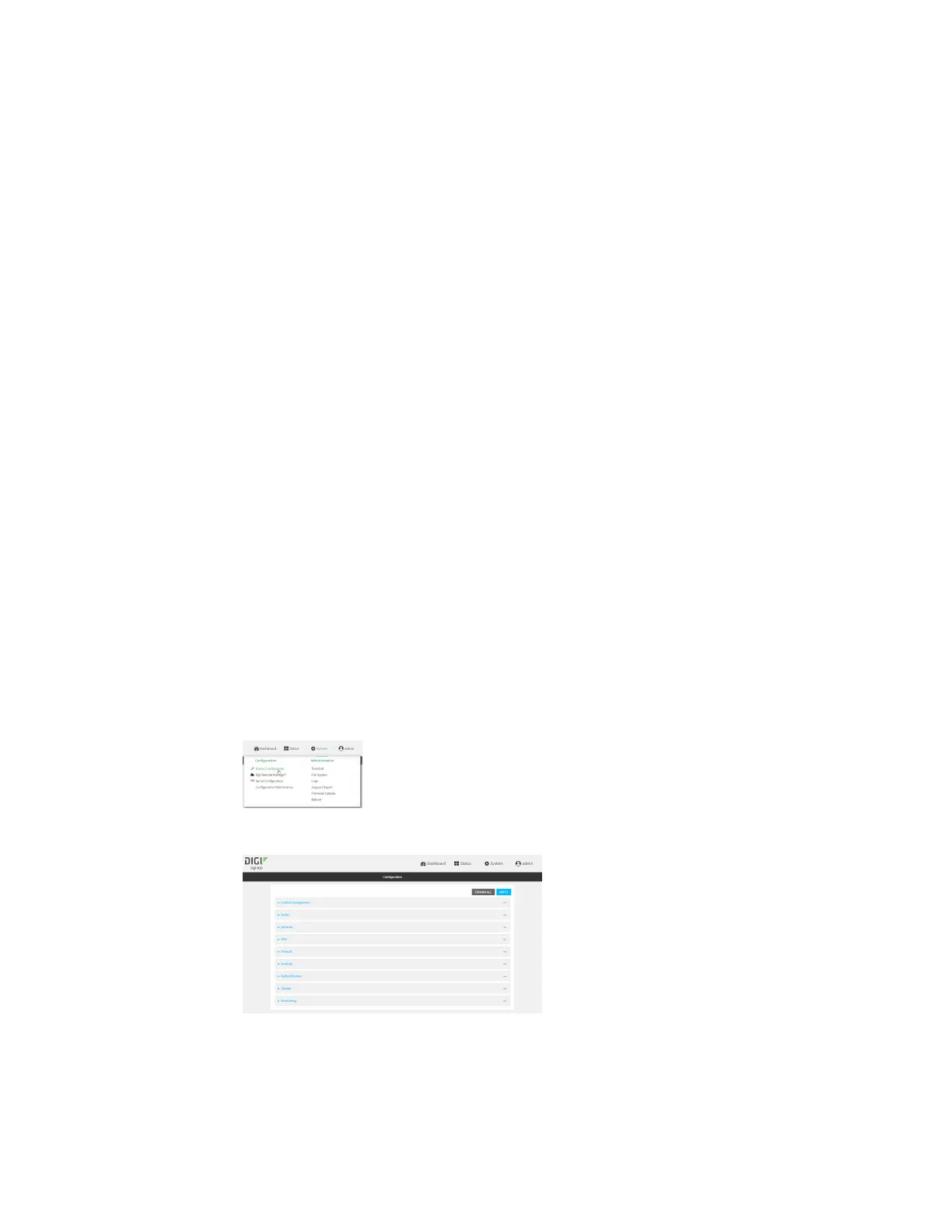

a. On the menu, click System. Under Configuration, click Device Configuration.
The Configuration window is displayed.
3. Click VPN >MACsec.
4. For Add MACsectunnel, click .
