Hardwaresetup Mount theIX20device
IX20 User Guide
42

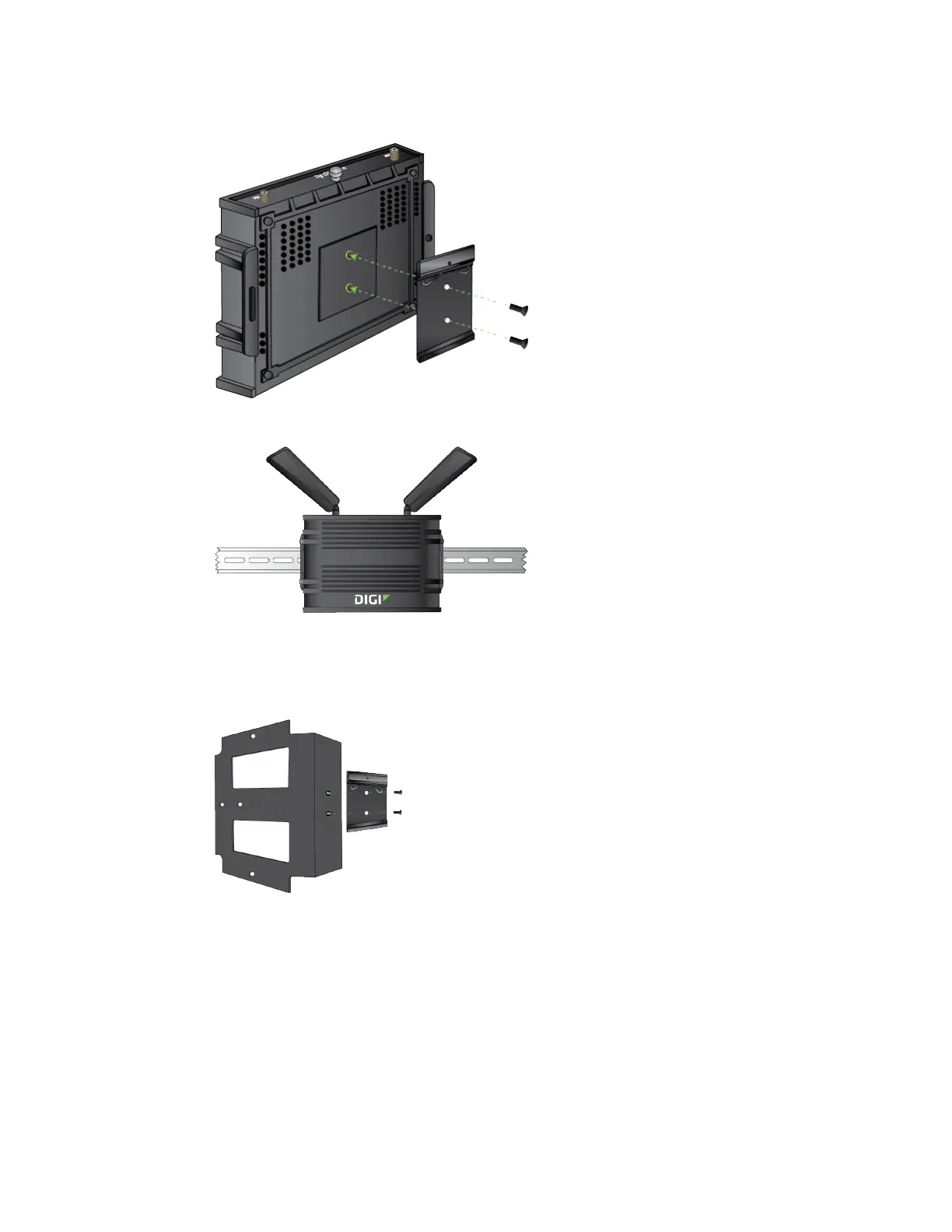

1. Attach the DINrail clip to the bottom of the device with the screws provided.
2. Set the IX20 device onto a DIN rail and gently press until the clip snaps into the rail.
Attach to DIN rail with bracket
1. Attach the DINrail clip to the DIN rail mounting bracket with the screws provided.
