Serial port Advanced RealPort configuration without using the Digi Navigator
IX20 User Guide
304
Configure the serial port for RealPort mode
RealPort mode allowsyou to use Realport.
To change the configuration to match the serial configuration of the device to which you want to
connect:
Web
Log into the IX20 WebUI asa user with full Admin accessrights.

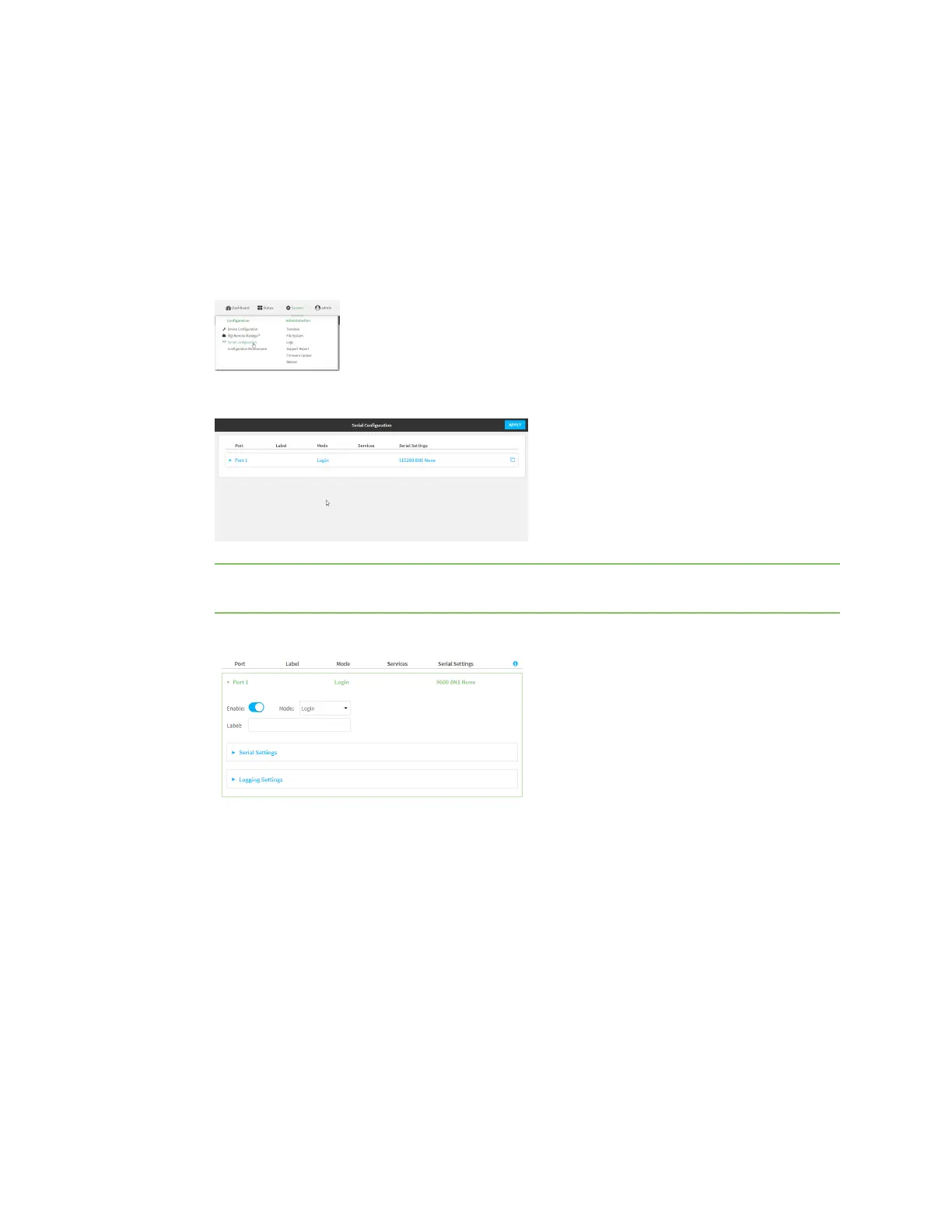

1. On the menu, click System. Under Configuration, click Serial Configuration.
The Serial Configuration page is displayed.
Note You can also configure the serial port by using Device Configuration >Serial. Changes
made by using either Device Configuration or Serial Configuration will be reflected in both.
2. Click the name of the port that you want to configure.
The serial port is enabled by default. To disable, toggle off Enable.
3. For Mode, select RealPort.
4. Select an option from the Sharing Mode list box to determine which user(s) can change the
port settings, and whether users can receivedata from the port.
n
None: Only the user that opened the port can change the port settings. All other users
are rejected. No other users can receive data from the port. This is the default.
n
Primary: Only the user that opened the port can change the port settings. All other
users that try to open the port receiveall of the data read to the port.
n
Peer: Any user that tries to open the port can change the port settings. All users that try
to open the port receiveall of the data read to the port.
5. (Optional) For Label, enter a label that will be used when referring to this port.
6. For Signalling, select the electrical signaling interface type used on this serial port:
