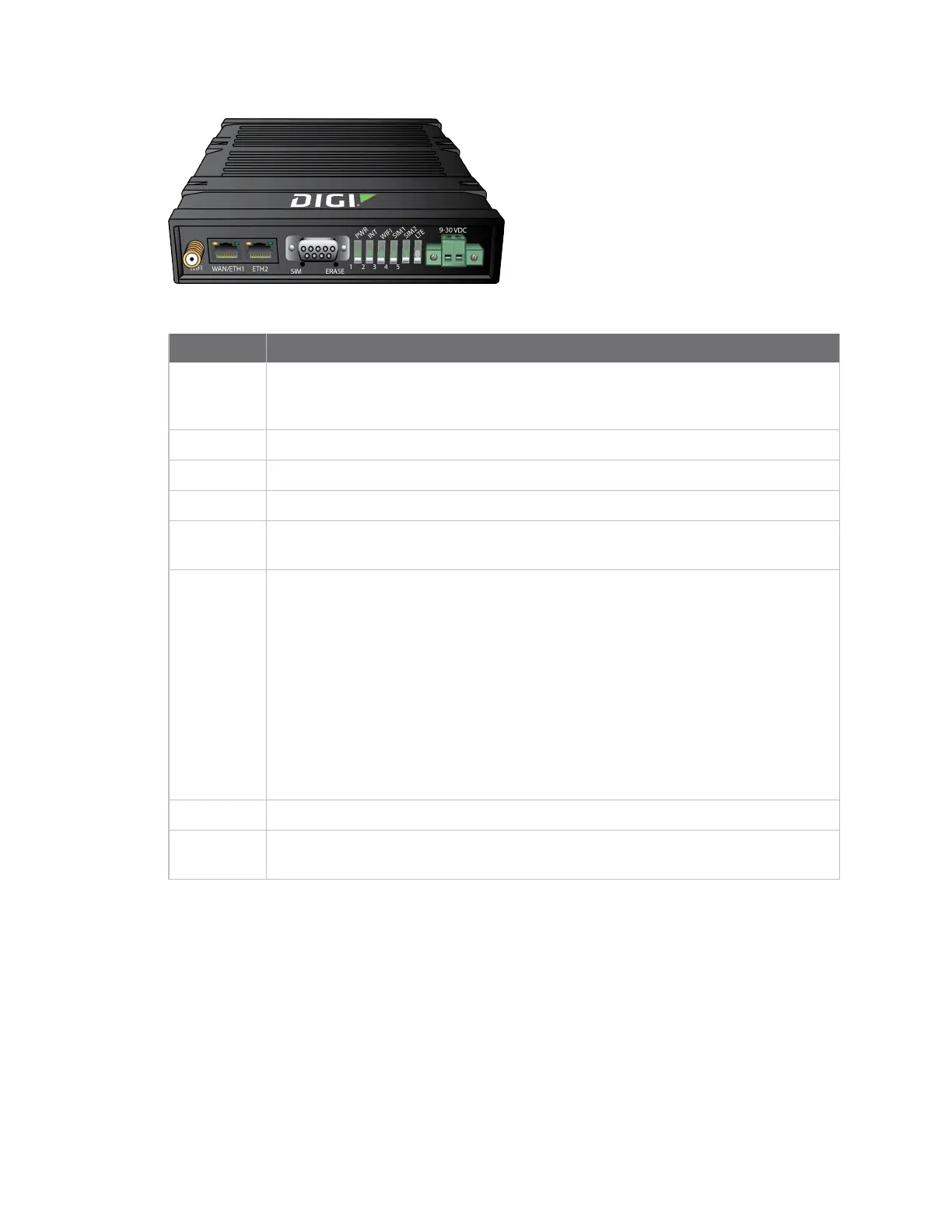

Item Decription
WIFI
antenna
connector
Wi-Fi enabled model only.
WAN/ETH1
Ethernet port, WAN-enabled by default.
ETH2
Ethernet port, LAN-enabled by default
Serial port See Digi IX20 serial connector pinout for information about the serial port pin-out.
SIM
button The SIMbutton isused to manually toggle between the two SIMslots included in the
CMmodule.
ERASE
button
The ERASEbutton isused to perform a device reset, and it has three modes:
1. Configuration reset: Pressing the ERASEbutton one time will reset the
device configurationsto the factory default. It will not remove any
automatically generated certificates and keys.
2. Full device reset: After the device rebootsfrom the first button press, press
the ERASEbutton again before the device is connected to the internet to also
remove generated certificates/keys.
3. Firmware reversion: Pressand hold the ERASEbutton and then power on
the device to boot to the version of firmware that was used prior to the
current version.
LEDs
See
IX20 LEDs
.
Power
suppy
IX20 power supply requirements.
IX20 LEDs
The IX20 LEDs are located on the top front panel. The number of LEDs varies by model. During
bootup, the front-panel LEDslight up in sequence to indicate boot progress.
