Routing IProuting
IX20 User Guide
425

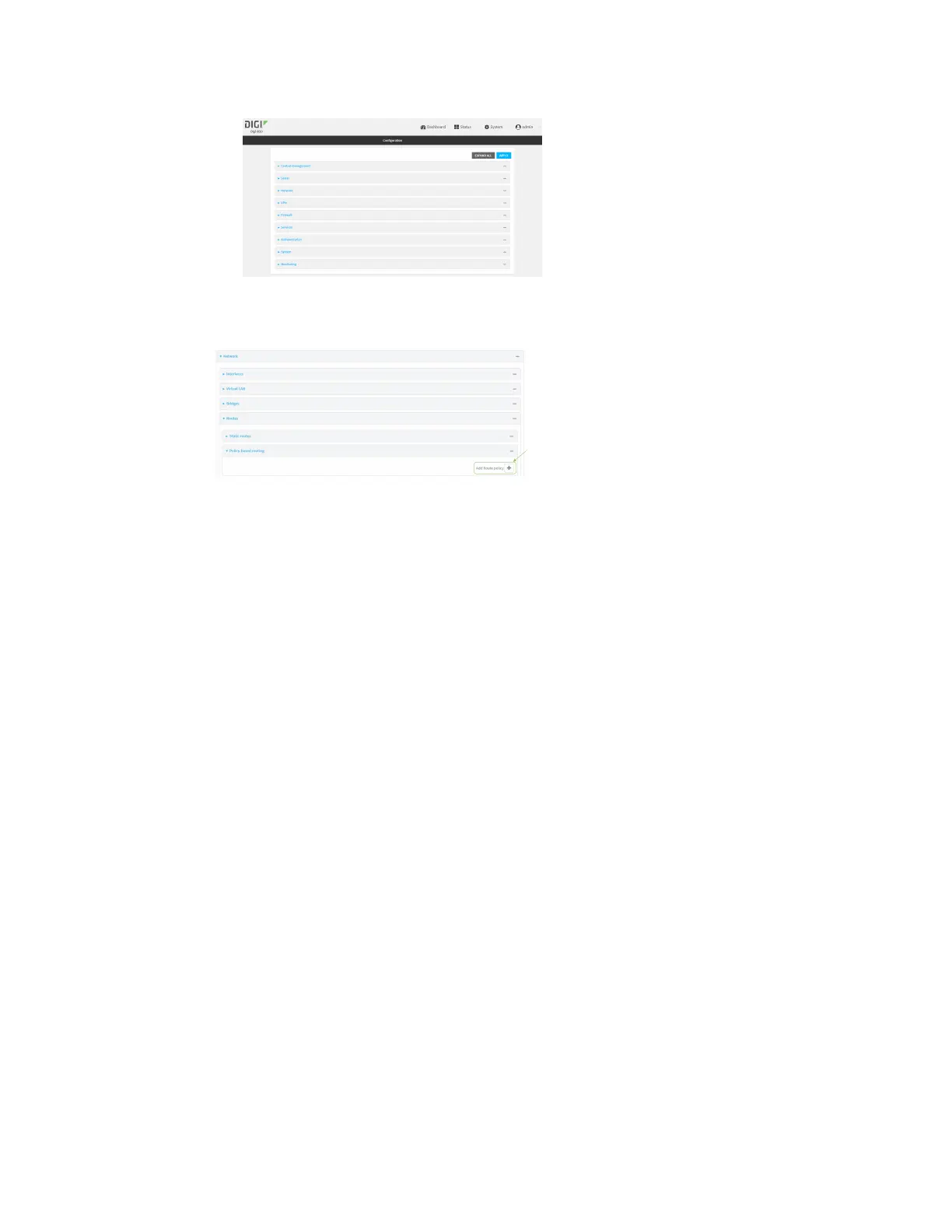

3. Click Network >Routes> Policy-based routing.
4. Click the to add a new route policy.
The new route policy page is displayed:
New route policies are enabled by default. To disable, toggle off Enable.
5. (Optional) For Label, type a label that will be used to identify this route policy.
6. For Interface, select the interface on the IX20 device that will be used with this route policy.
7. (Optional) Enable Exclusive to configure the policy to drop packets that match the policy
when the gateway interface is disconnected, rather than forwarded through other interfaces.
8. For IP version, select Any, IPv4, or IPv6.
9. For Protocol, select Any, TCP, UDP, or ICMP.
n
If TCP or UDP is selected for Protocol, type the port numbers of the Source port and
Destination port, or set to any to match for any port.
n
If ICMP is selected for Protocol, type the ICMPtype and optional code, or set to any to
match for any ICMPtype.
10. For DSCP, typethe 6-bit hexadecimal Differentiated ServicesCode Point (DSCP) field match
criteria. Thiswill match packets based on the DHCPfield within the ToSfield of the IPheader.
11. Configure source address information:
a. Click to expand Source address.
b. For Type, select one of the following:
n
Zone: Matchesthe source IPaddress to the selected firewall zone. See Firewall
configuration for more information about firewall zones.
n
Interface: Matches the source IPaddress to the selected interface's network
address.
n
IPv4 address: Matchesthe sourceIPaddressto the specified IPaddress or
network. Use the format IPv4_address[/netmask], or use any to match any IPv4
address.
