Digi IX20 User Manual

Virtual PrivateNetworks(VPN) Generic Routing Encapsulation (GRE)
IX20 User Guide
598

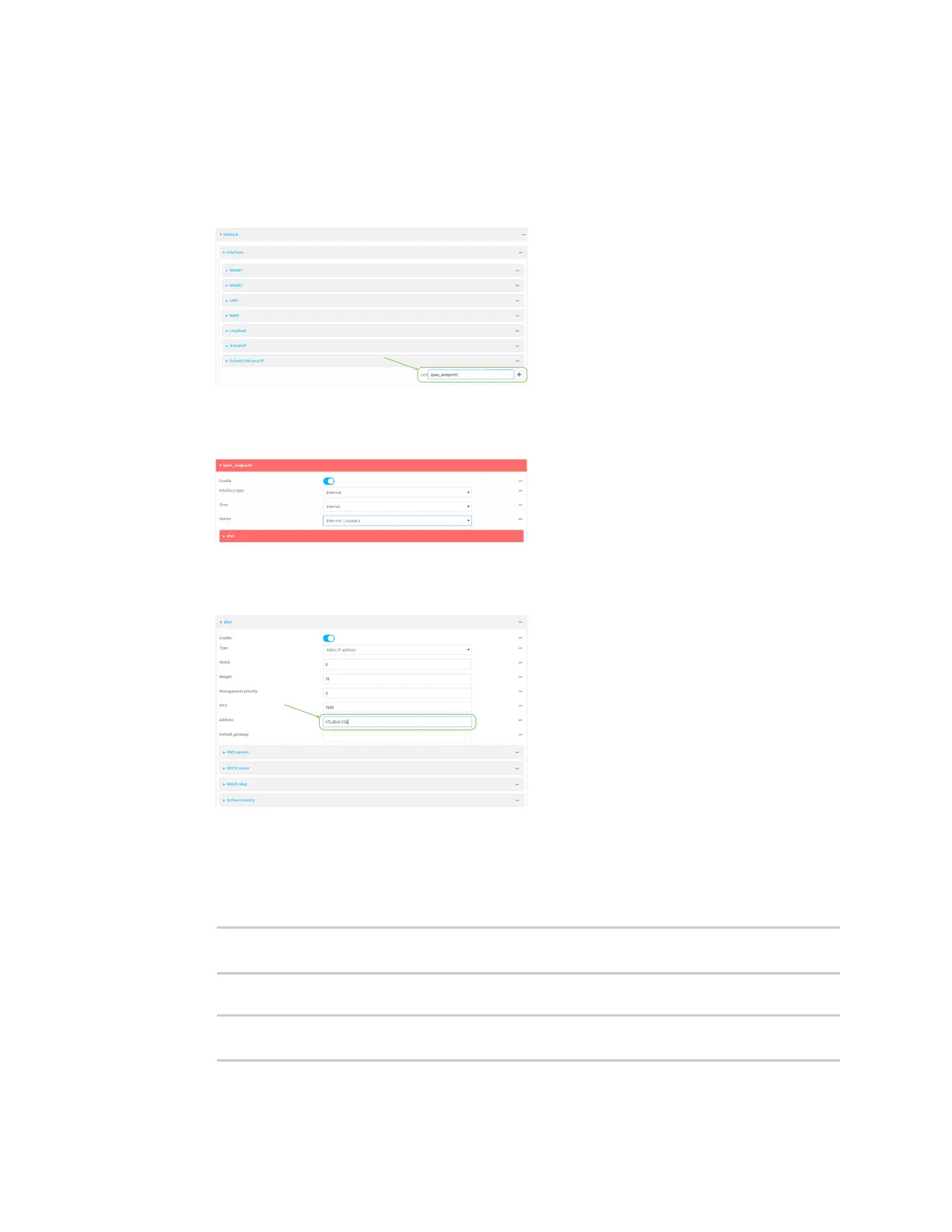

Task two: Create an IPsec endpoint interface
 Web
1. Click Network >Interface.
2. For Add Interface, type ipsec_endpoint1 and click .
3. For Zone, select Internal.
4. For Device, select Ethernet: loopback.
5. Click to expand IPv4.
6. For Address, type the IPaddressof the local GREtunnel, 172.30.0.1/32.
7. Click Apply to savethe configuration and apply the change.
 Command line
1. At the command line, type config to enter configuration mode:
> config
(config)>
2. Add an interface named ipsec_endpoint1:
(config)> add network interface ipsec_endpoint1
(config network interface ipsec_endpoint1)>

Digi IX20 Specifications

General

Category	Wireless Router
Cellular Connectivity	4G LTE
Ethernet Ports	4
Wi-Fi	802.11ac
SIM Slots	2
WAN Ports	1
LAN Ports	3
Weight	0.5 kg
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
