Firewall ConfigureQuality of Serviceoptions
IX20 User Guide
965

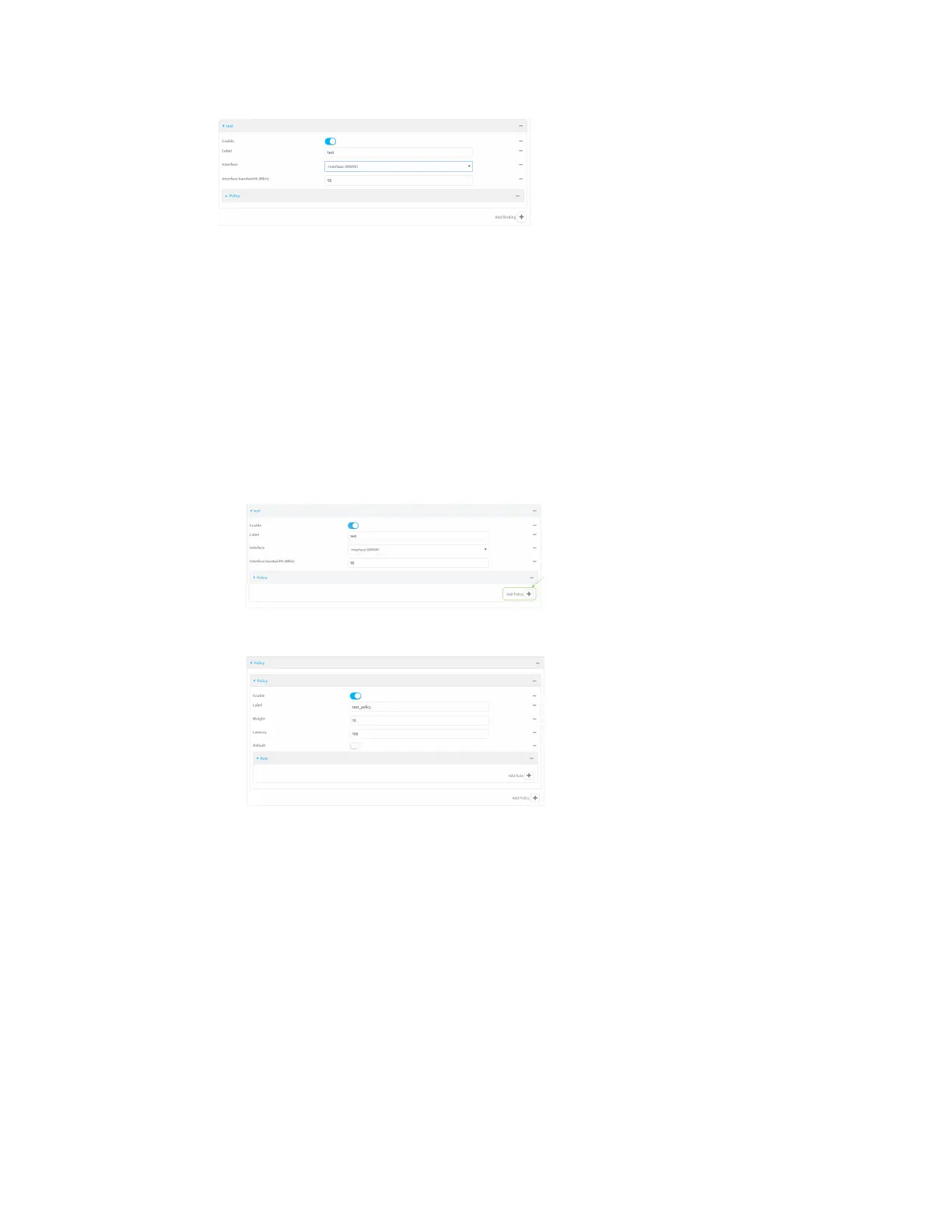

5. Enable the binding.
6. (Optional) Type a Label for the binding.
7. Select an Interface to queue egresspackets on. The binding will only match traffic that is
being sent out on this interface.
8. (Optional) For Interface bandwidth (Mbit), set the maximum egressbandwidth of the
interface, in megabits, allocated to this binding. Typically, this should be95% of the available
bandwidth. Allowed value is any integer between 1 and 1000.
9. Create a policy for the binding:
At least onepolicy is required for each binding. Each policy can contain up to 30 rules.
a. Click to expand Policy.
b. For Add Policy, click .
The QoSbinding policy configuration window isdisplayed.
New QoSbinding policies are enabled by default. To disable, toggle off Enable.
c. (Optional) Type a Label for the binding policy.
d. For Weight, type a value for the amount of available bandwidth allocated to the policy,
relativeto other policies for this binding.
The larger the weight, with respect to the other policy weights, the larger portion of the
maximum bandwidth is available for thispolicy. For example, if a binding contains three
policies, and each policy containsa weight of 10, each policy will be allocated one third of
the total interface bandwidth.
e. For Latency, type the maximum delay before the transmission of packets. Alower latency
meansthat the packets will be scheduled more quickly for transmission.
