Konica Minolta CS-7 User Manual

117
Chapter 5
5.4 Exposure with CR cassette
z

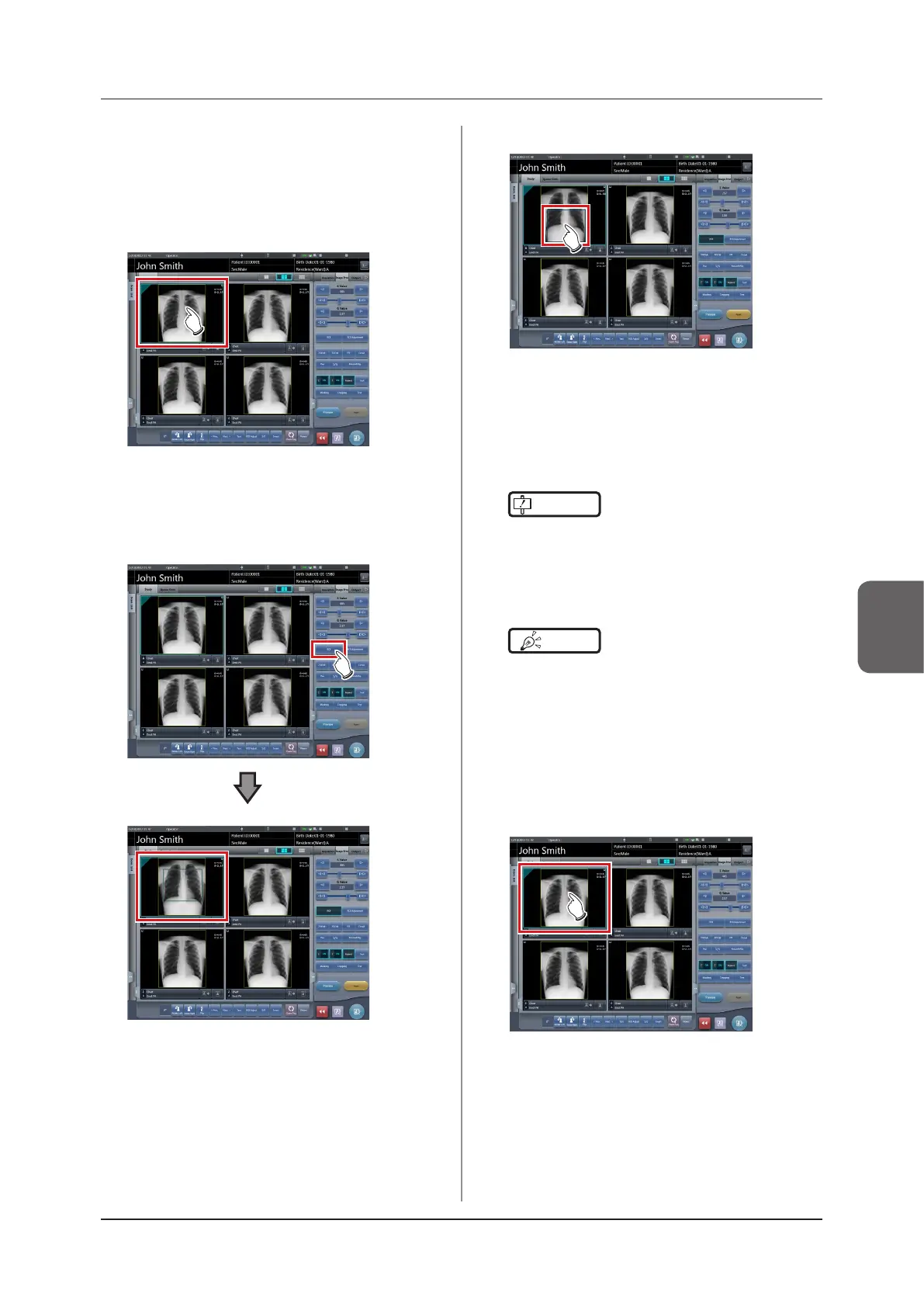

Change of ROI area position
Change of ROI area position is performed with the fol-
lowing procedure.
1
Select an image whose ROI area you want
to change.
• The control panel automatically switches to the
[Image Proc] tab. If it does not switch, select the
[Image Proc] tab manually.
2
Press [ROI].
• The ROI area is displayed.
3
Move the ROI area.
• When any part of the image is clicked, the ROI
area moves to the center of the clicked part.
• The following operations will cancel the ROI
mode.
– Pressing [ROI] again
– Pressing another button
IMPORTANT
•••••••••••••••••••••••••••••••••••••
• When ROI area movement is performed after chang-
ing S value/G value, the changed S value/G value is
reset, and the S/G value becomes optimized after ROI
area movement.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
HINT
•••••••••••••••••••••••••••••••••••••
• Perform detailed position change of ROI area on the
viewer screen.
•••••••••••••••••••••••••••••••••••••••••••••••••••••
z
Zooming in and out
Zoom in/out of exposed images is performed with the
following procedure.
1
Select an image to zoom in/out.
• The control panel automatically switches to the
[Image Proc] tab. If it does not switch, select the
[Image Proc] tab manually.
