OPERATION

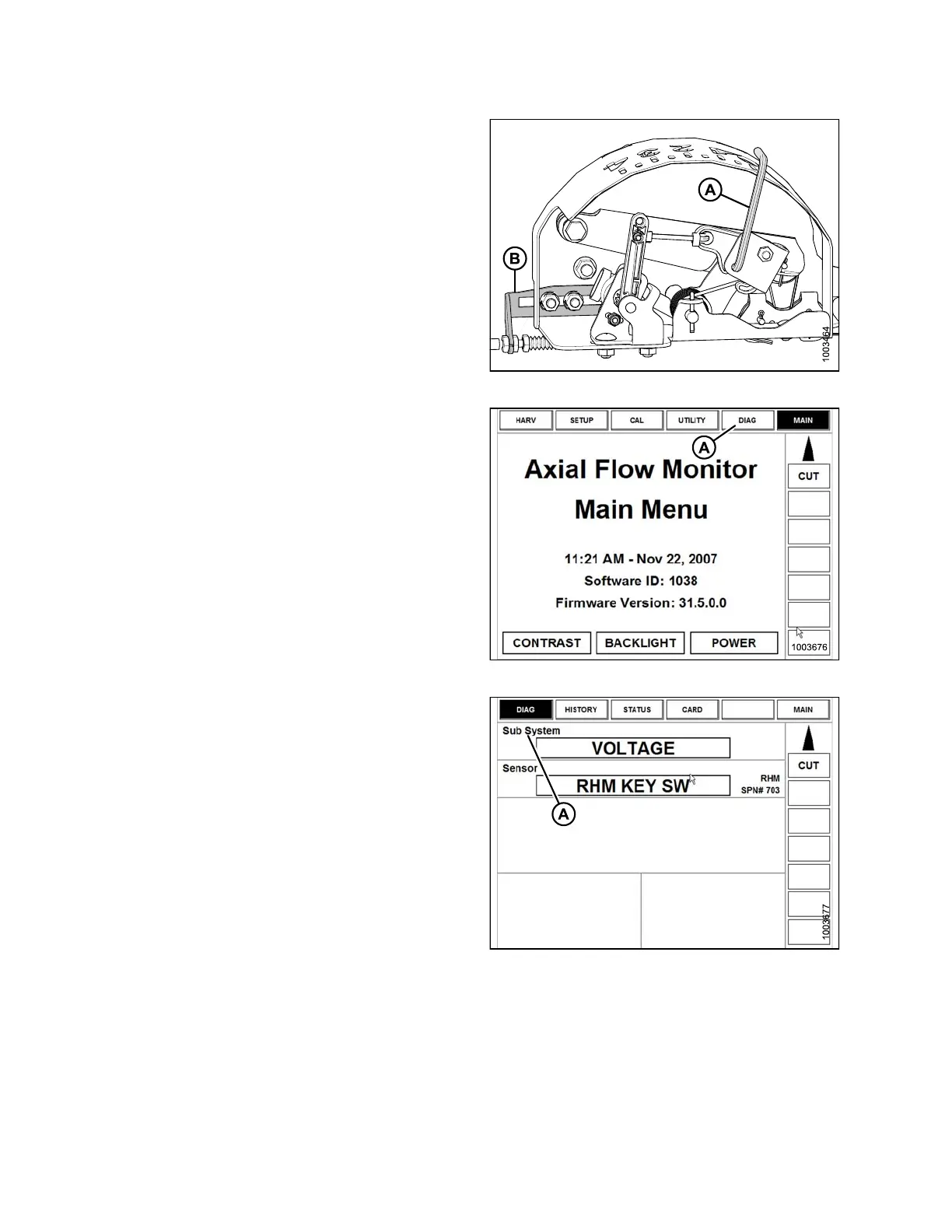

3. Adjust the cable take-up bracket (B) (if necessary) until
the pointer (A) on the float indicator is on ‘0’.
Figure 3.127: Float Indicator Box
4. Ensure header float is unlocked.
5. Select DIAG (A) on the Universal display MAIN screen.
TheDIAGscreenopens.
Figure 3.128: Case 8010 Combine Display
6. Select SUB SYSTEM (A). The SUB SYSTEM
window opens.
Figure 3.129: Case 8010 Combine Display
147695 106 Revision A
