OPERATION
7. Select HDR HEIGHT/TILT (A). The SENSOR
window opens.

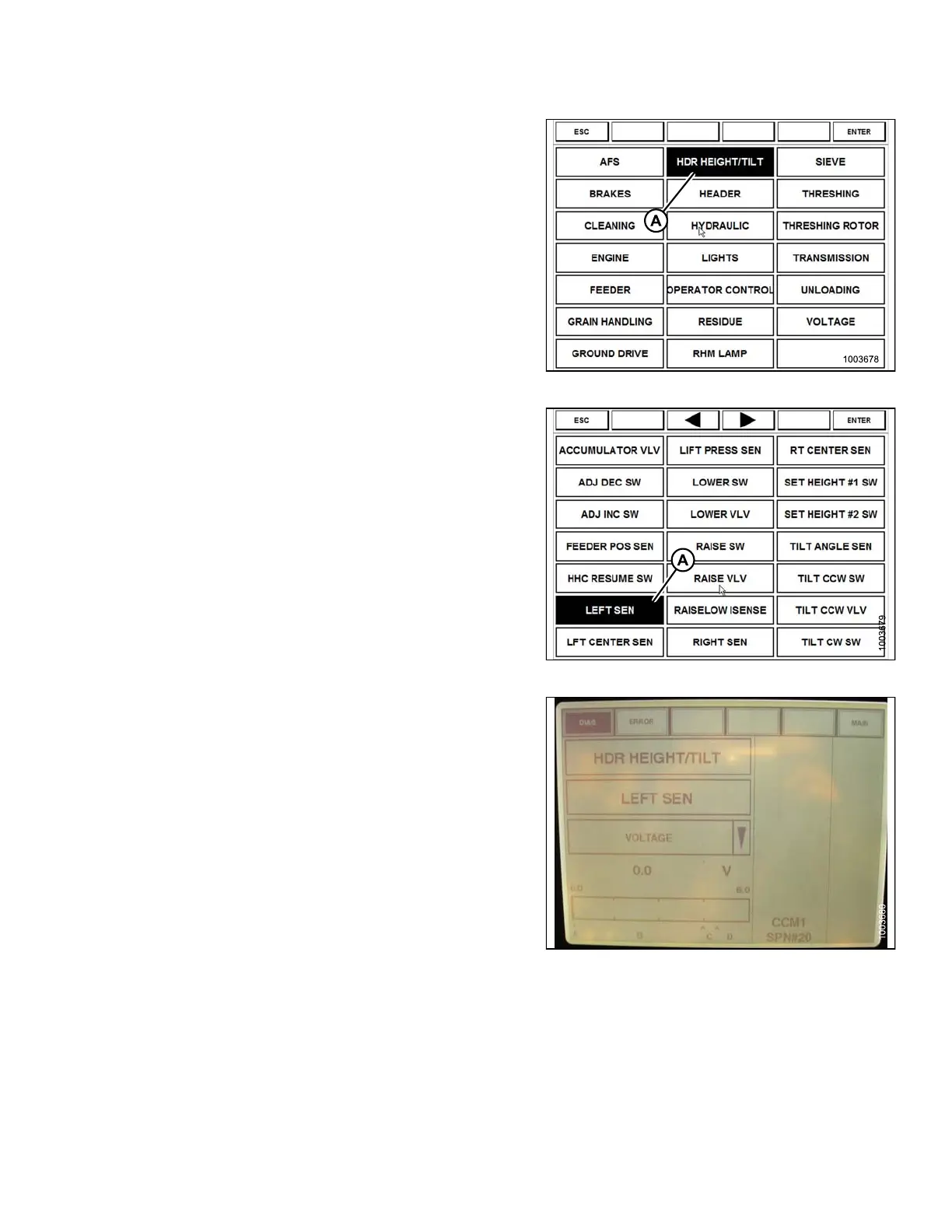

Figure 3.130: Case 8010 Combine Display
8. Select LEFT SEN (A). The exact voltage is displayed.
Raise and lower the header to see the full range of
voltage readings.
Figure 3.131: Case 8010 Combine Display
9. Adjust the voltage limits (refer to Adjusting Volta ge
Limits, page 93) if the sensor voltage is not within the
low and high limits or if the range between the low and
high lim its is insufficient (refer to Table 3.10 Com bine
Voltage Limits, page 91).
Figure 3.132: Case 8010 Combine Display
