OPERATION
2. Check that float lock linkage is on down stops
(washer [A] and nut [B] cannot be moved) at both
locations.
NOTE:
If the header is not on down stops during the next
two steps, the voltage may go out of range during
operation causing a malfunction of the AHHC system.

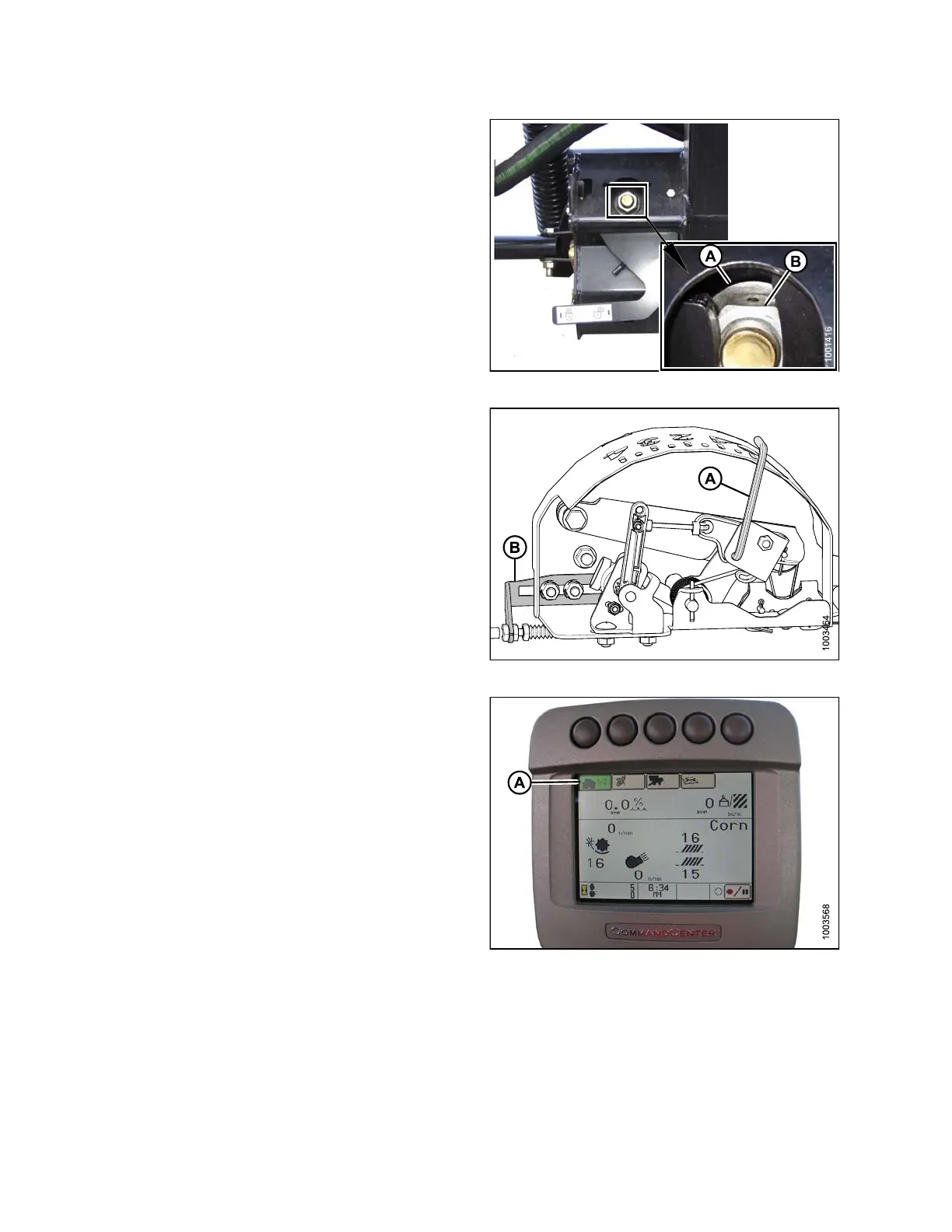

Figure 3.184: Float Lock
3. Adjust the cable take-up bracket (B) (if necessary) until
the pointer (A) on the float indicator is on ‘0’.
Figure 3.185: Float Indicator Box
4. Press the HOME PAGE button (A) on the main page of
the mon itor.
Figure 3.186: Combine Display
