OPERATION

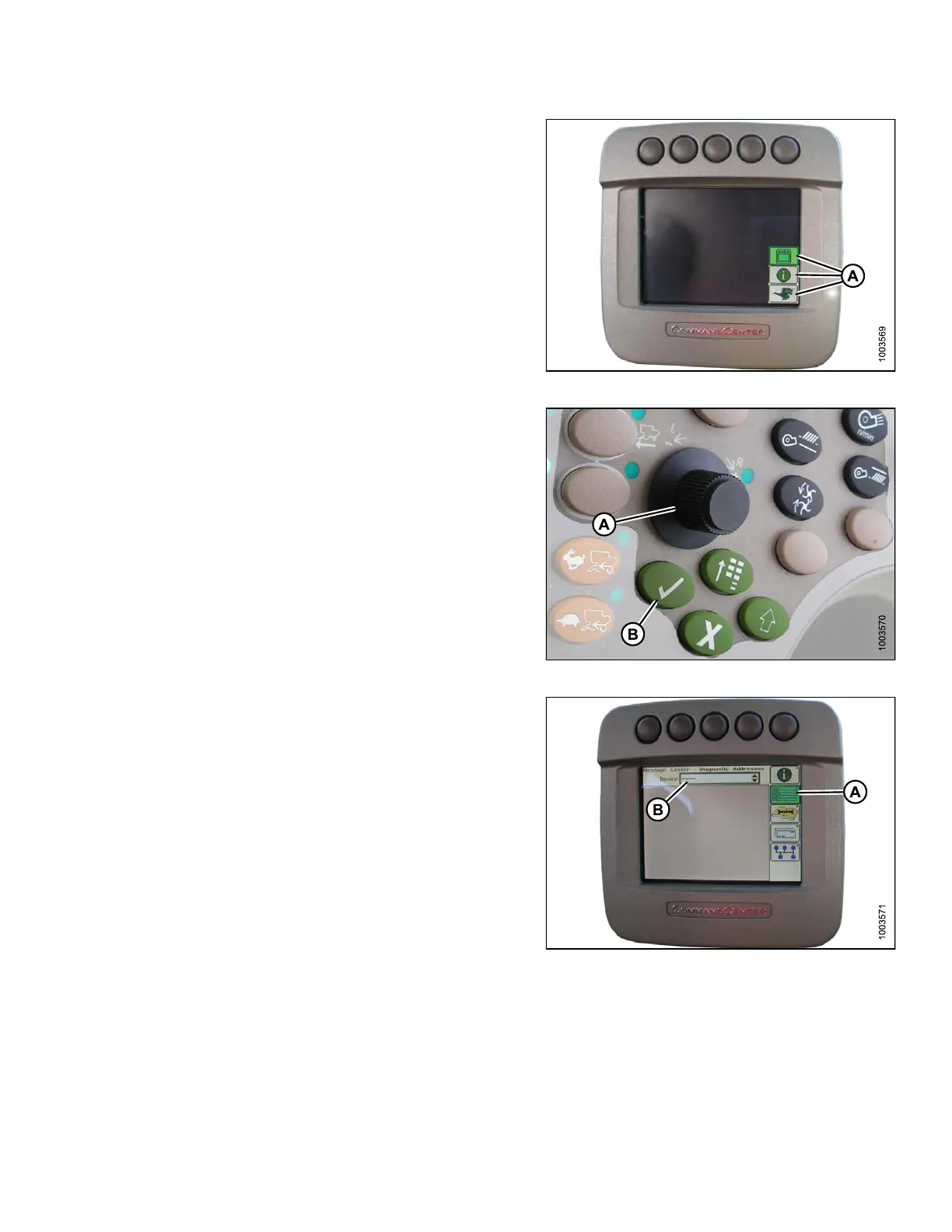

5. Ensure the three ic on s (A) de picted in the illustration at
right appear on the monitor.
Figure 3.187: Combine Display
6. Usescrollknob(A)tohighlightthemiddleicon(the
green ‘i’) and press the check ma r k button (B) to select
it. This will bring up the Message Center.
Figure 3.188: Combine Controls
7. Use the scroll knob to highlight DIAGNOSTIC
ADDRESSES (A) from the right-hand column and
select it by pressing the check mark button.
8. Use the scroll knob to highlight drop down box (B) and
press the check mark button to select it.
Figure 3.189: Combine Display
147695 139 Revision A
