OPERATION
2. Check that float lock linkage is on down stops
(washer [A] and nut [B] cannot be moved) at both
locations.
NOTE:
If the header is not on down stops during the next
two steps, the voltage may go out of range during
operation causing a malfunction of the AHHC system.

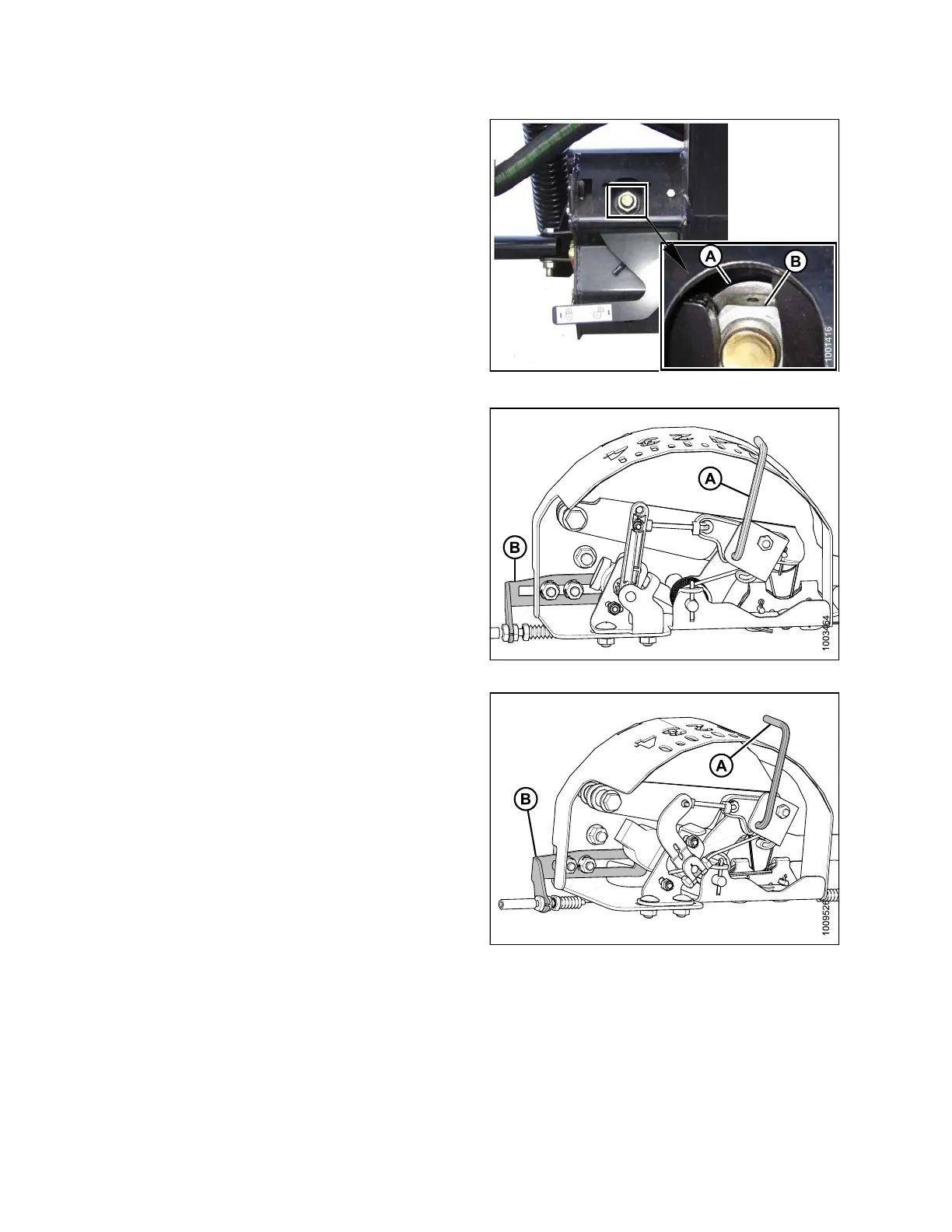

Figure 3.245: Float Lock
3. Adjust the cable take-up bracket (B) (if necessary) until
the pointer (A) on the float indicator is on ‘0’.
Figure 3.246: 5 Volt AHHC Sensor Assembly
Figure 3.247: 10 Volt AHHC Sensor Assembly
147695 164 Revision A
