MacDon FFT FlexDraper FD75 - Page 209

OPERATION

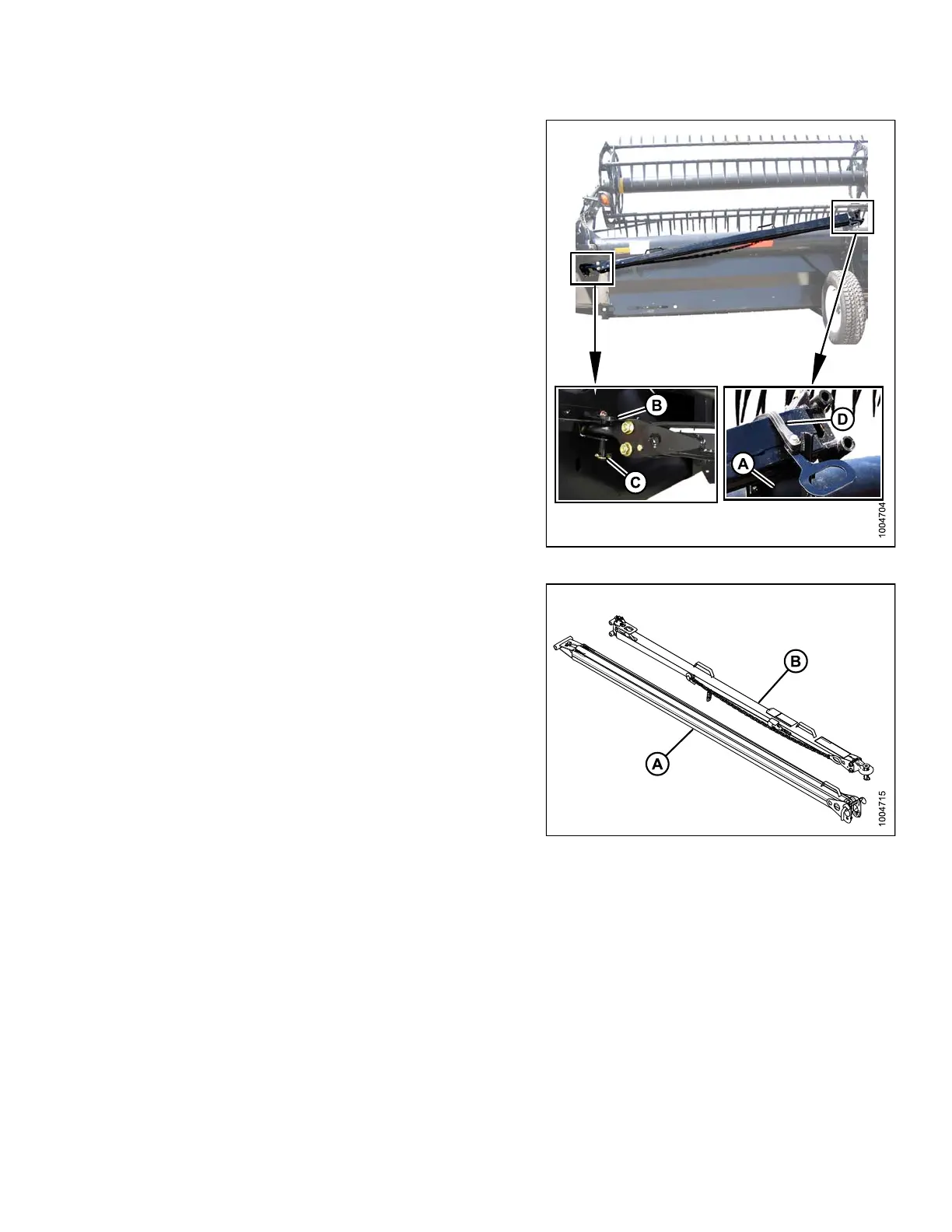

5. At left side of the header, unhook rubber strap (D) on
cradle (A).
6. Remove hitch pin (C) from support (B), and remove
tow-bar.
7. Install rubber strap (D) on cradle (A).
Figure 3.
293: Tow-Bar
8. Connect the outer half (B) of the tow-bar to the inner
half (A).
Figur
e 3.294: Tow-Bar
147695 193 Revision A
