OPERATION

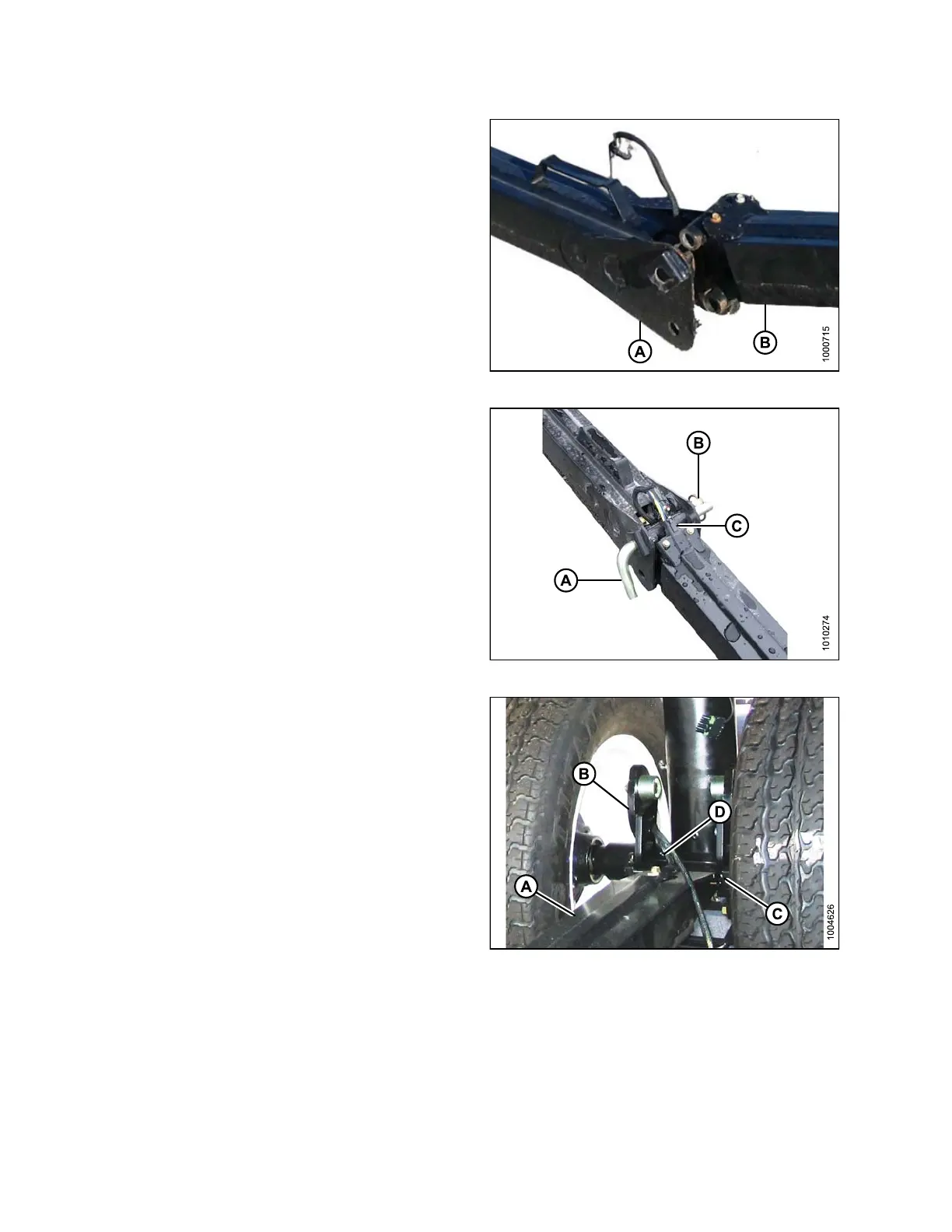

9. Lift the outer half (B) and insert it into the inner half (A).
Figure 3.295: Tow-Bar
10. Secure the two halves together with L-pin (A), then turn
to lock. Secure pin with ring (B).
11. Connect electrical harness to connector (C).
Figure 3.296: Tow-Bar
12. Position tow-bar (A) onto axle, and push against
latch (B) until tow-bar pins drop into hooks (C).
13. Check that latch (B) has engaged tow-bar.
14. Install clevis pin (D), and secure with hairpin.
Figure 3.297: Tow-Bar
147695 194 Revision A
