HEADER ATTAC HMENT/D ETACH ME NT
9. Push handle (A) to closed position until lock button (B)
snaps out. Close cover (C).

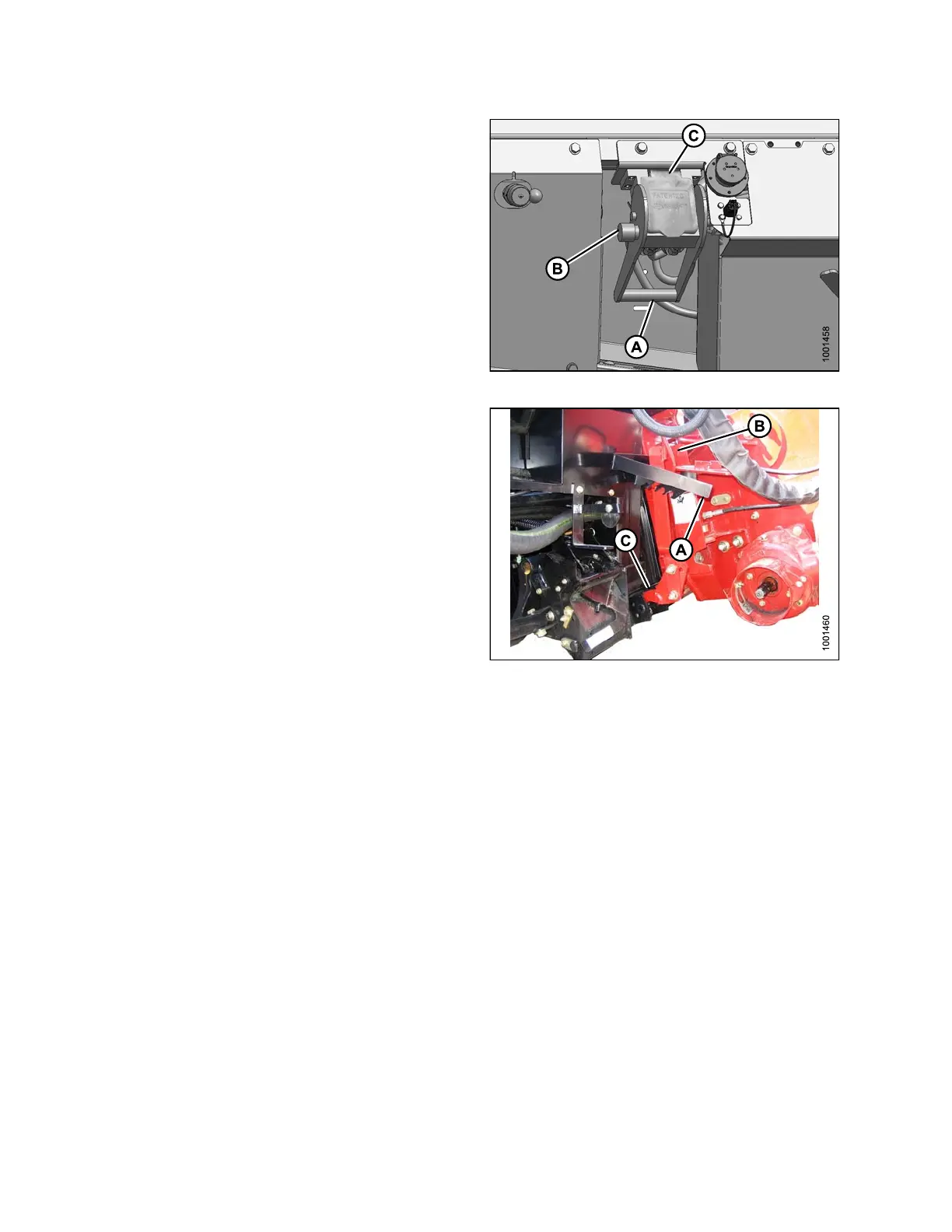

Figure 4.1 8: Header Receptacle
10. Lift lever (A), pull and lower handle (B) to disengage
feeder house/adapter lock (C).
11. Lower feeder house until it disengages
adapter support.
12. Slowly back combine away from header.
Figure 4.19: Feeder House Locks
