HEADER ATTAC HMENT/D ETACH ME NT
CAUTION
Never start or move the machine until you are sure all
bystanders have cleared the area.
2. Start engine, and slowly drive combine up to header
until feeder house is directly under the adapter top
cross member (A), and alignment pins (B) on feeder
house are aligned with holes (C) in adapter frame.

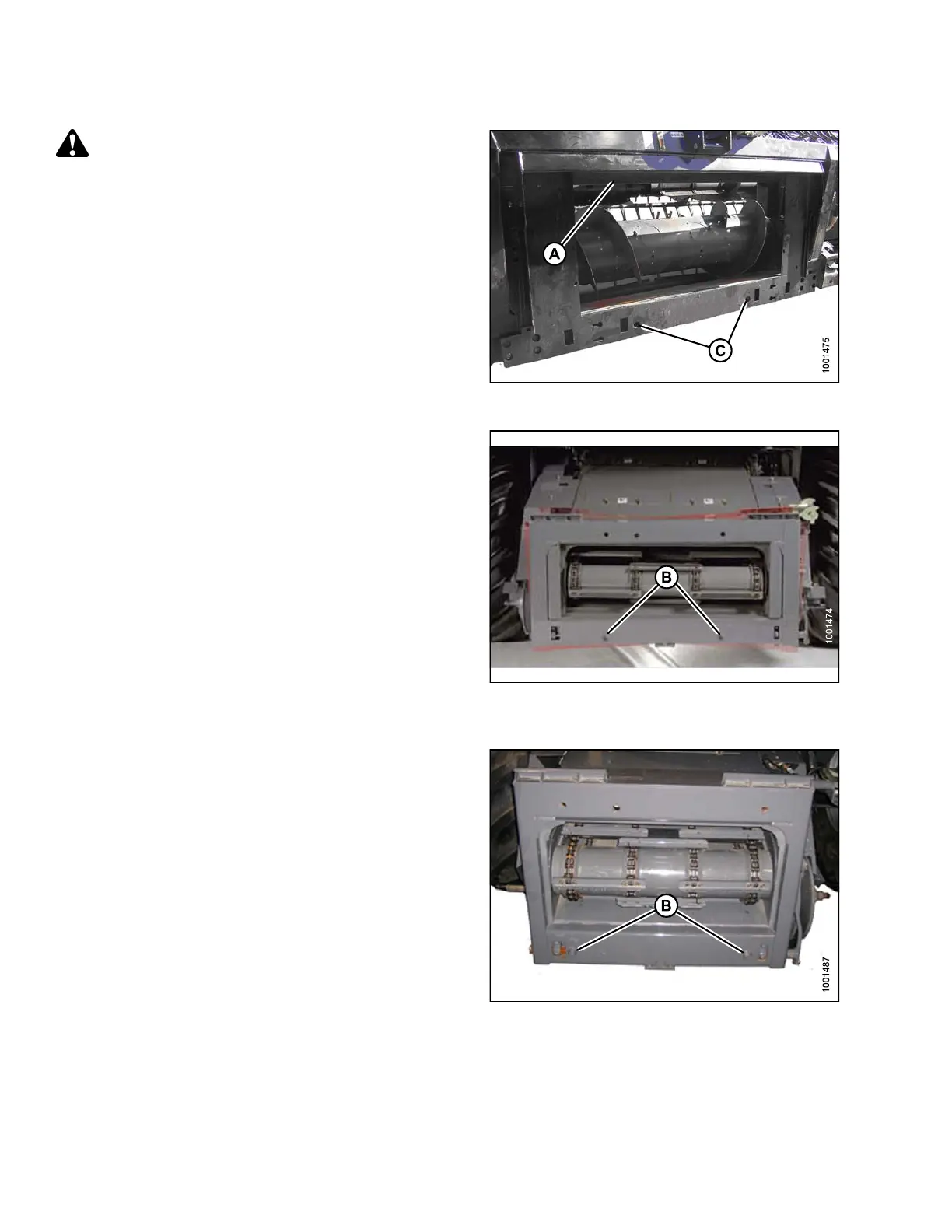

Figure 4.77: Adapter
Figure
4.78: Challenger and Massey Ferguson
Alignm
ent Pins
Figure 4.79: Gleaner R and S Series
Alignment Pins
147695 232 Revision A
