HEADER ATTA CHMEN T/DETACHMENT

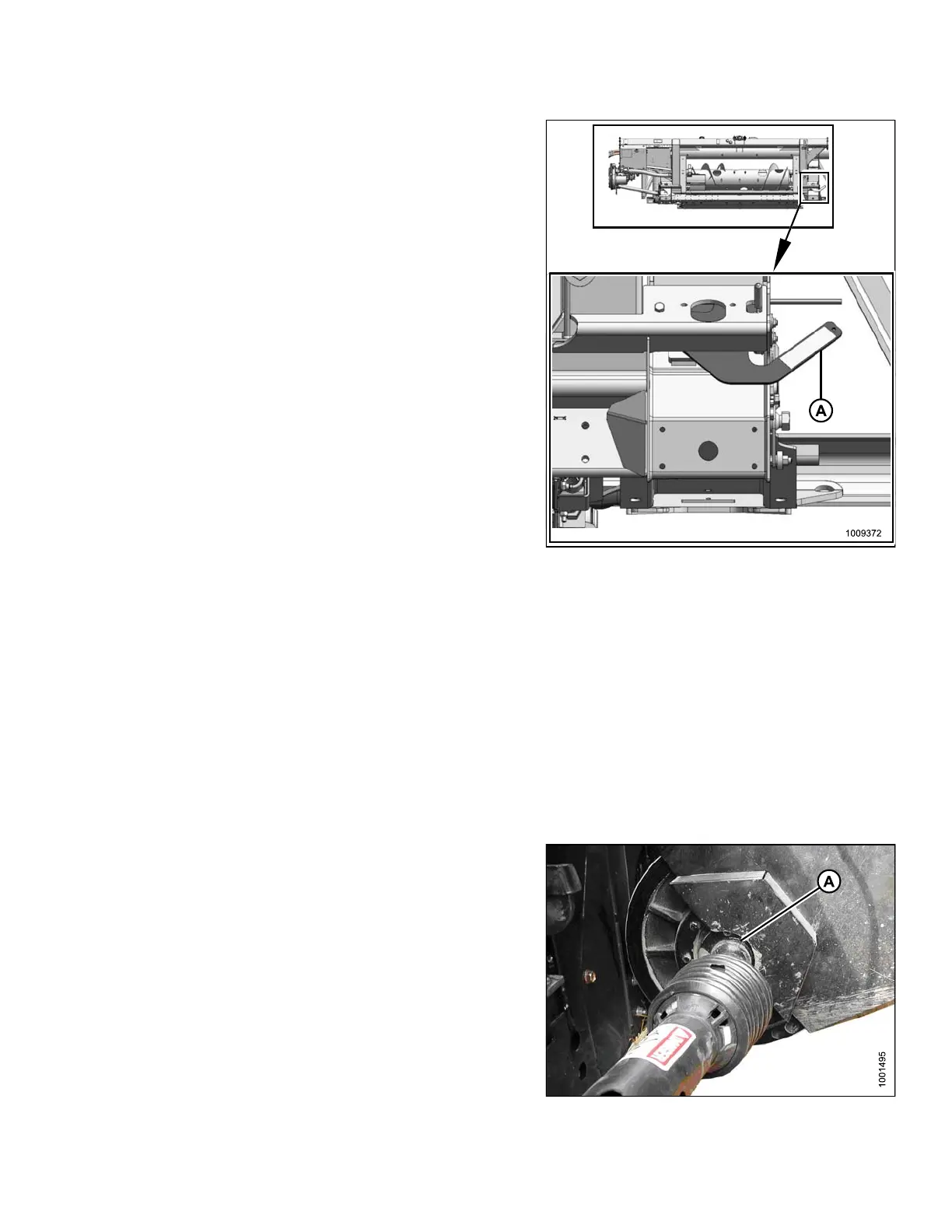

2. Engage the float locks by lifting lever (A) at each lock
until it latches into the lock position.
Figure 4.
90: F loat Locked
IMPORTAN T:
If slow speed transport wheels are installed, header
may be detached in either Transport or Field mode.
If detaching with wheel in Field mode, set wheels to
storage or uppermost working position; otherwise,
header may tilt forward so that reattachment will be
difficult. Refer to 3.7.1 Cutting Height, page 52.
IMPORT
ANT:
If stab
ilizer wheels are installed, set wheels to storage
or uppe
rmost working position. Otherwise header
may ti
lt forward so that reattachment will be difficult.
Refer
to 3.7.1 Cutting Height, page 52.
3. Disconnect d
riveline from combine output shaft (A).
Figure 4.91: Disconnect Driveline
147695 237 Revision A
