MAINTENANCE AND SERVICING

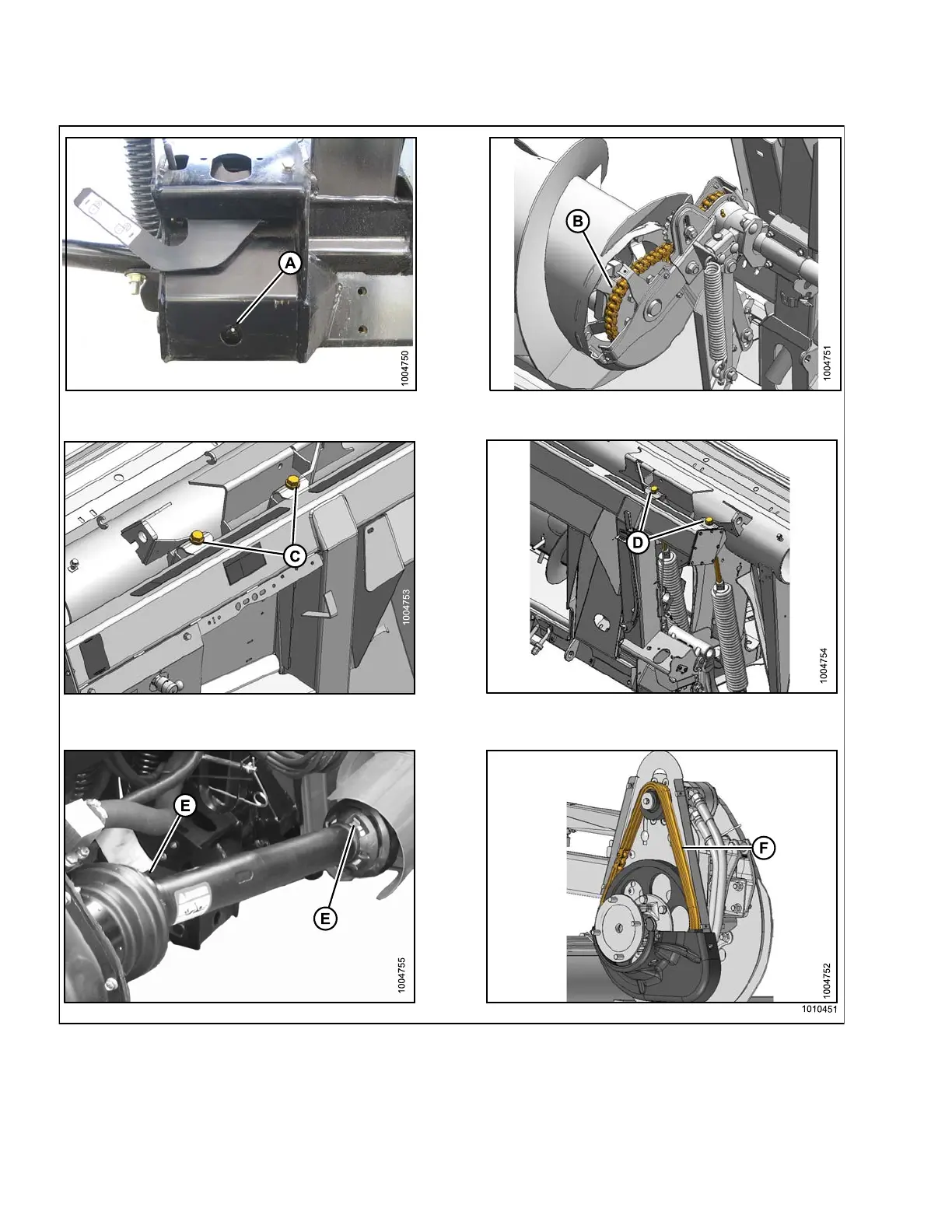

Figure 5.8: Every 100 Hours
A-F
loat Pivot - RH and LH
B - Auger Drive Chain - Refer to Lubri cating Auger D rive Chain, page 270
C - LH Float Spring Tensioners D - RH Float Spring Tensioners E - Driveline Guard - 2 Places F - Reel Drive Chain- 1 Place - Refer to
Lubricating Reel Drive Chain, page 269
147695 262 Revision A
