MAINTENANCE AN D SERVICING

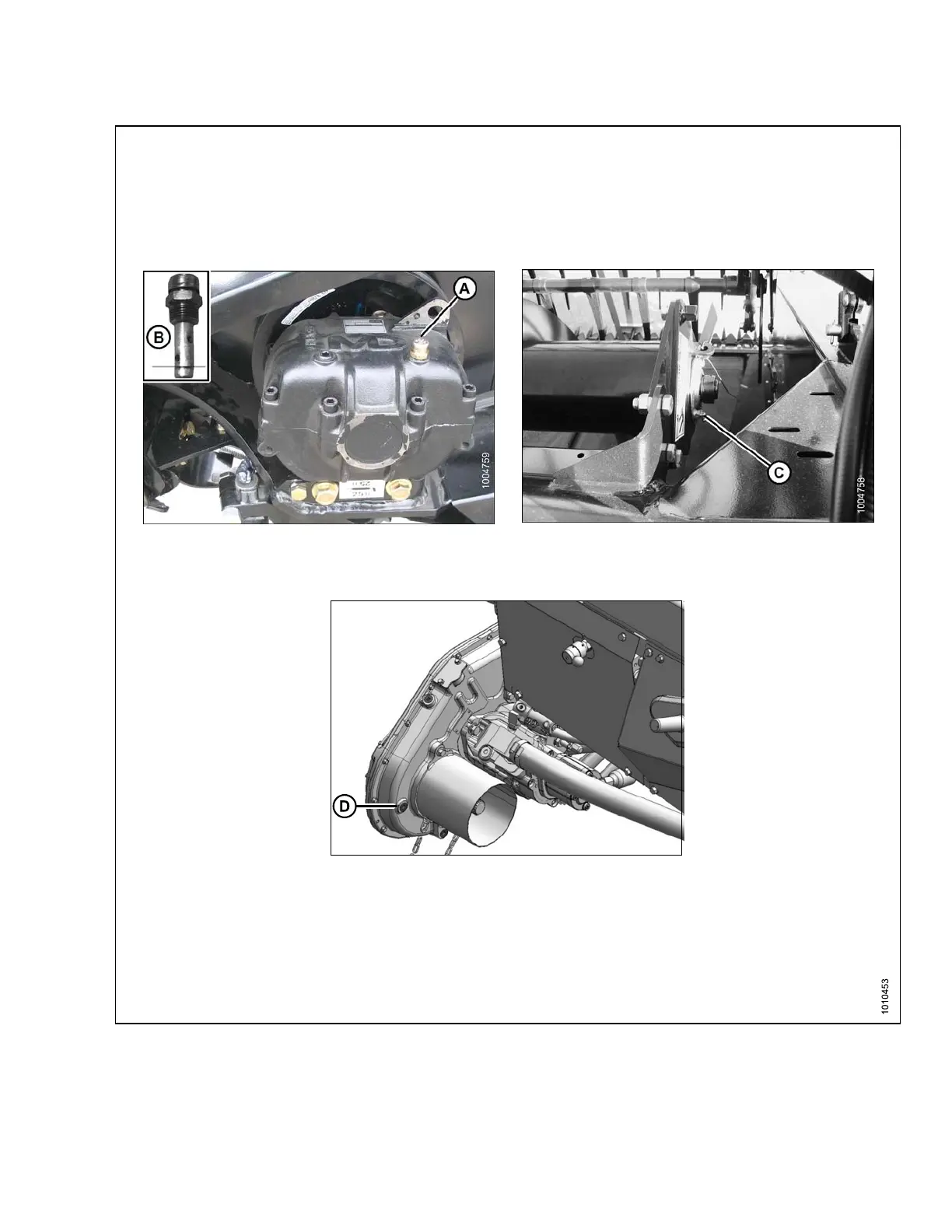

Figure 5.9: Every 100 Hours (Continued)
A - Knife Drive Box (Check Oil Level Between Lower Hole and End of Dipstick)
B - Upper Cross Auger Bearing (1 Place)
C - Main Drive Gearbox Oil Level - Refer to Lubricating H eader Drive Gearbox, page 271
147695 263 Revision A
