MAINTENANCE AN D SERVICING

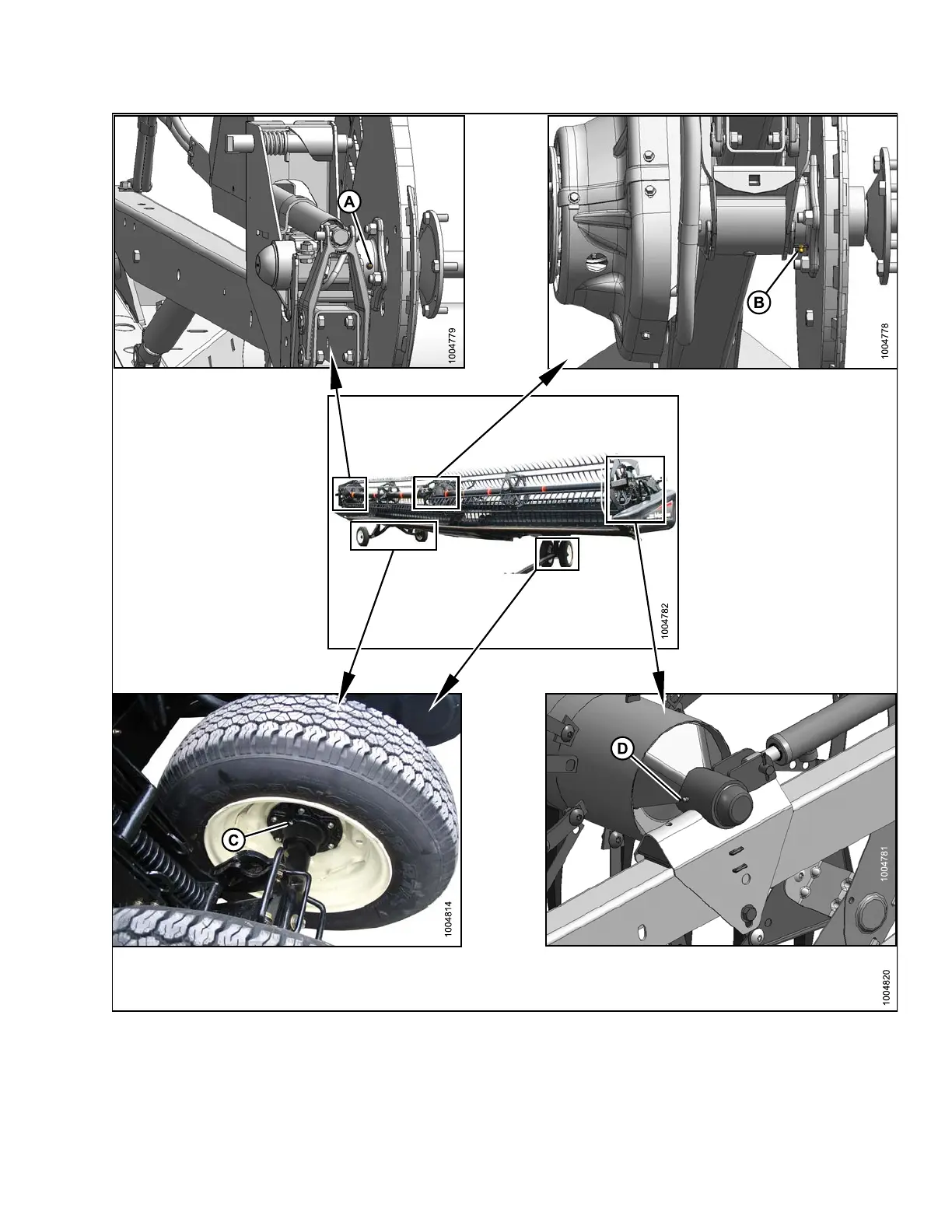

Fig

ure 5.13: Every 500 Hours

A - Reel Right Bearing (1 Place) B - Reel Center Bearing (1 Place) C - Wheel Bearings (4 Places) D - Reel Left Bearing (1 P lace)

147695 267 Revision A
