MacDon FFT FlexDraper FD75 - Page 282

MAINTENANCE AND SERVICING
Figure 5.12: Every 250 Hours (Continued)

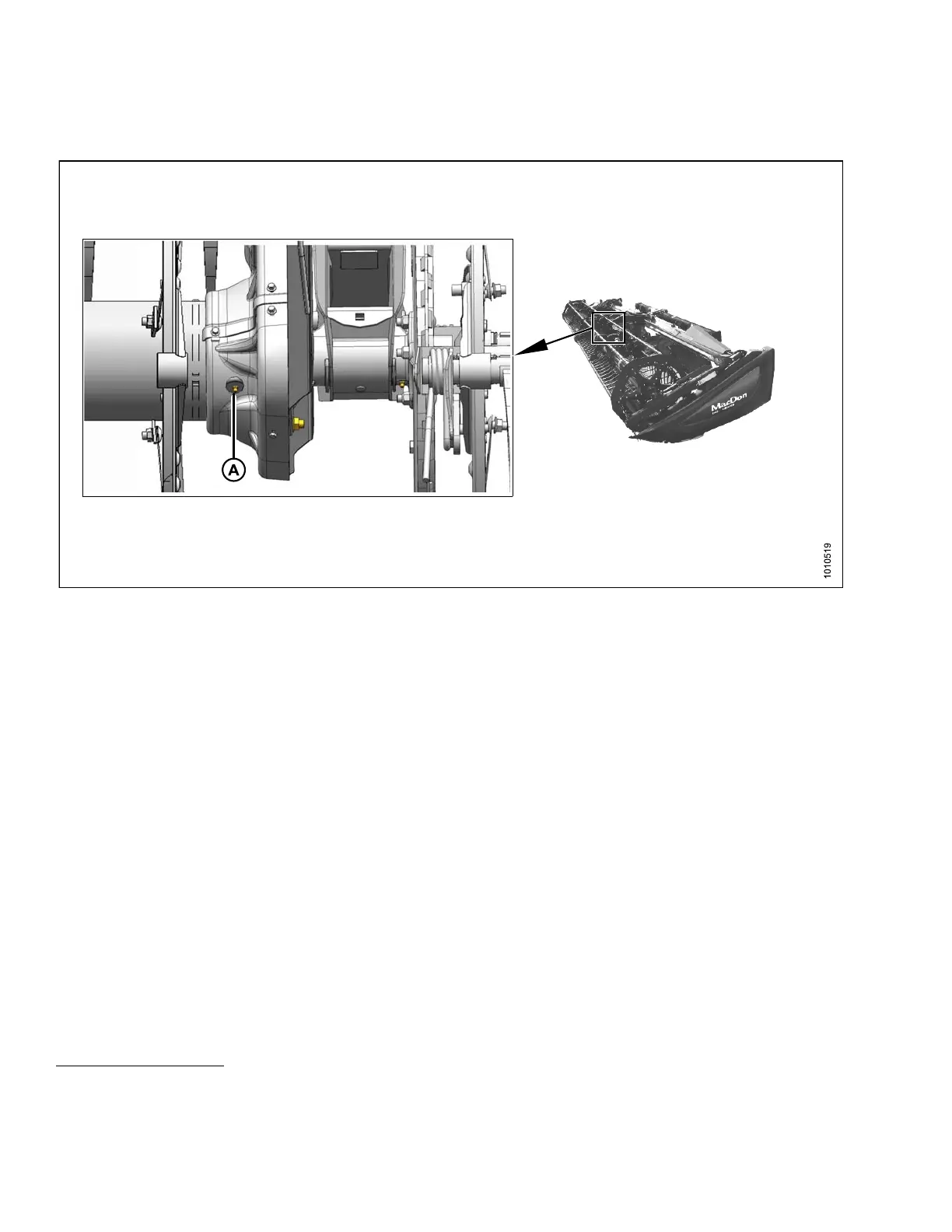

A-Double
Reel U-Joint
14
14. U-joint has an extended lubrication c ross and bearing kit. Stop greasing when greasing becomes difficult or if
U-joint stops taking grease. Overgreasing will damage U-joint. Six to eight pumps are sufficient at first grease
(factory). Decrease grease interval as U-joint wears and requires more than six pumps.
147695 266 Revision A
