MAINTENANCE AN D SERVICING

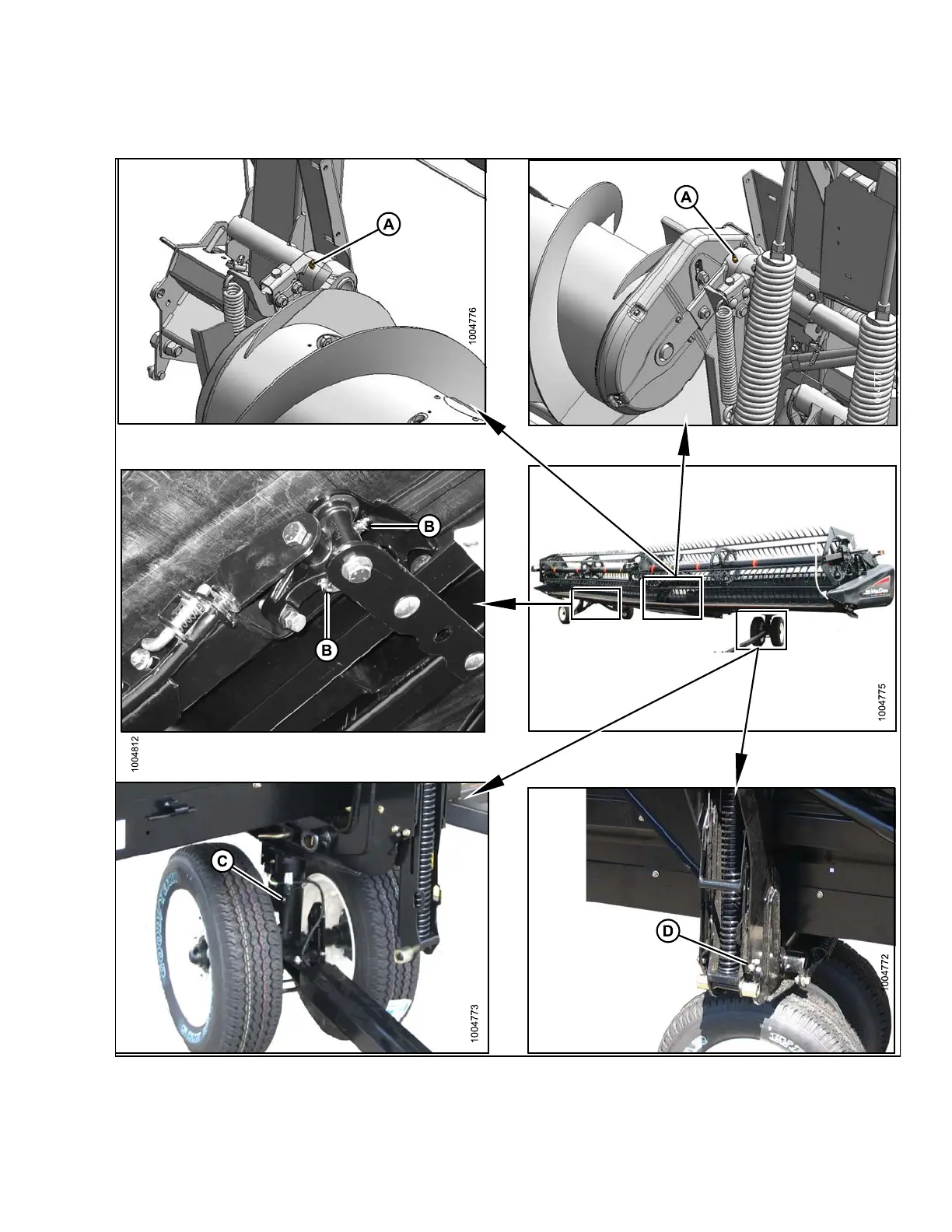

Figure 5.11: Every 250 Hours

A-A

uger Pivots

B-R

ear Axle Pivots

C - Front Wheel Pivot (1 Place) D - Frame/Wheel Pivot (1 Place) - Both Sides

147695 265 Revision A
